4I-7472 Track Sprocket
Cat® Undercarriage Track Link Sprocket
Showing 17–27 of 27 results
-
-
514-0898 Track Sprocket
Specifications Undercarriage System HD Tooth Width 35.5 mm (1.398 in) Material Type Plain Steel Groove Angle 64 degrees Bolt Thread Size M14 Backlash 7.9 mm (0.311 in) Bolt Circle Diameter 300 mm (11.811 in) Noise Reduction Lugs No Number of Bolts 16 Pressure Reducing No Packing Offset Diameter 99999.99 Pitch 154 mm (6.063 in) Tip…
-
527-2756 Track Sprocket
Specifications Bushing Radius 19.9 mm (0.783 in) Tooth Width 46 mm (1.811 in) Bolt Circle Diameter 262 mm (10.315 in) Inside Diameter 230 mm (9.055 in) Sprocket Mounting Type Symmetric Backlash 7 mm (0.276 in) Tip Diameter 427 mm (16.811 in) Packing Offset Diameter 415.8 Bolt Thread Size M14 Pitch Diameter 415.8 Noise Reduction Lugs…
-
535-9004 Track Sprocket
Specifications Material Type Plain Steel Inside Diameter 140 mm (5.512 in) Noise Reduction Lugs No Tooth Width 22 mm (0.866 in) Number of Bolts 9 Bushing Radius 12 mm (0.472 in) Groove Angle 58 degrees Pitch 90 mm (3.543 in) Backlash 6 mm (0.236 in) Pitch Diameter 277.18 Tip Diameter 292 mm (11.496 in) Bolt…
-
-
603-8539 Track Sprocket
Cat® 21-Tooth Non-Segmented Track Sprocket for General Duty Systems, 16 Bolts
-
603-8541 Track Sprocket
Cat® final drive track sprocket transfers power from the final drive to the track, promoting smooth, controlled movement.
-
639-7792 Track Sprocket
Specifications Material Carbon Steel Undercarriage System HD Number of Teeth 23 Backlash 11 mm (0.433 in) Tip Diameter 976 mm (38.425 in) Bushing Radius 43.1 mm (1.697 in) Material Type Plain Steel Tooth Width 115 mm (4.528 in) Number of Bolts 28 Inside Diameter 690 mm (27.165 in) Groove Angle 62 degrees Packing Offset Diameter…
-
6Y-4898 Track Sprocket
Cat® powertrain track sprocket is a toothed wheel that forms part of the power transmission system
-
6Y-5685 Track Sprocket
Cat® Track Sprocket, Standard Steel, Offset, 16 Bolts, 23 Teeth, 215.9 mm Track Pitch
-

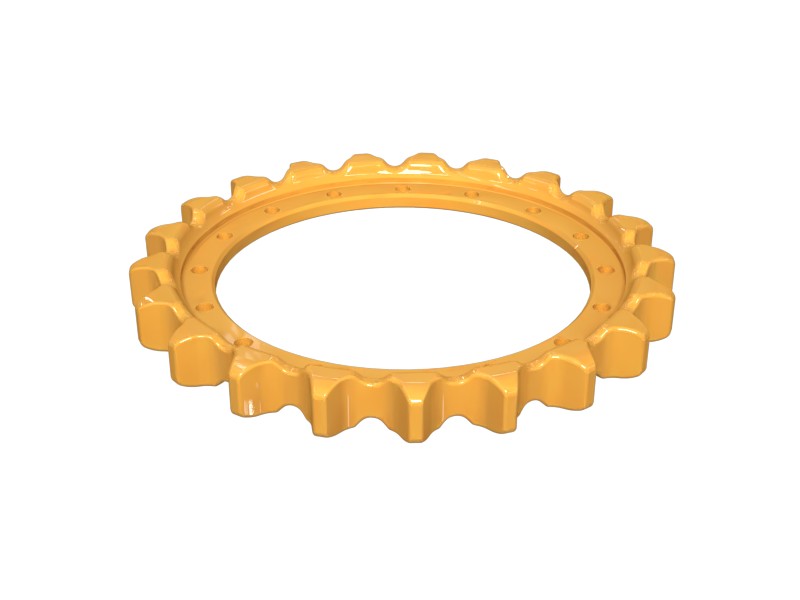

8E-9805 Track Sprocket
Cat® powertrain track sprocket is a toothed wheel that forms part of the power transmission system
