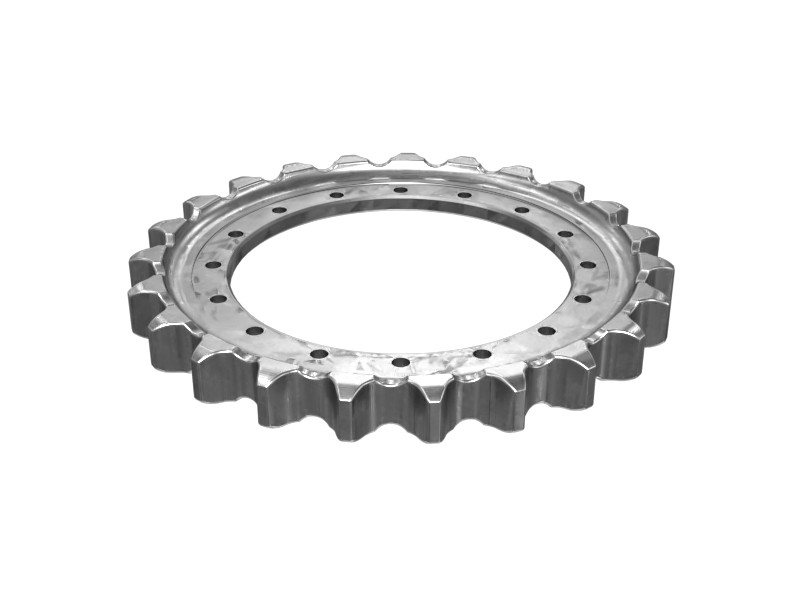

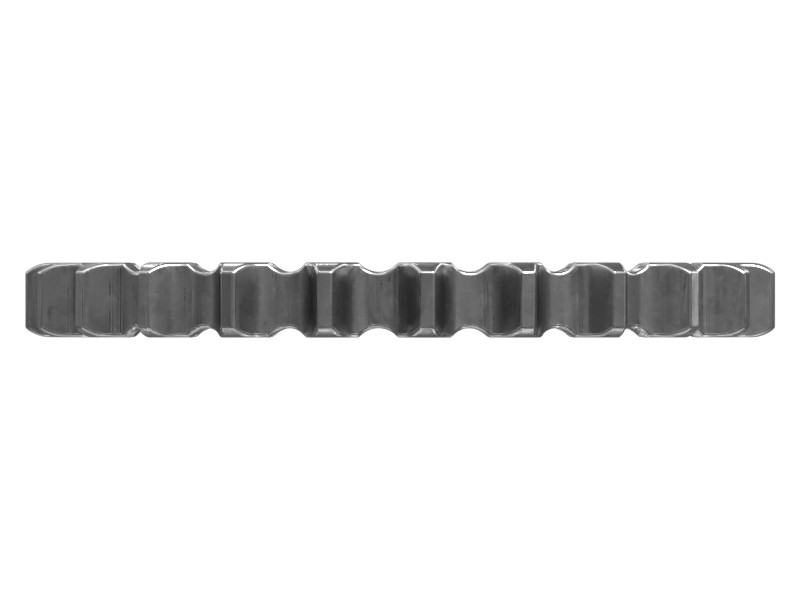

6Y-5685 Track Sprocket
Cat® Track Sprocket, Standard Steel, Offset, 16 Bolts, 23 Teeth, 215.9 mm Track Pitch
Description
Sprockets transmit engine power to the link group and engage it to produce motion.
Specifications
| Undercarriage System | HD |
|---|---|
| Noise Reduction Lugs | No |
| Sprocket Mounting Type | Offset |
| Bushing Radius | 34 mm (1.339 in) |
| Bolt Circle Diameter | 566 mm (22.283 in) |
| Groove Angle | 60 degrees |
| Tip Diameter | 812 mm (31.969 in) |
| Number of Bolts | 16 |
| Pitch | 215.9 mm (8.5 in) |
| Inside Diameter | 515.2 mm (20.283 in) |
| Packing Offset Diameter | 797.2 |
| Material Type | Plain Steel |
| Pressure Reducing | Yes |
| Tooth Width | 80 mm (3.15 in) |
| Bolt Thread Size | M24 |
| Pitch Diameter | 800.2 |
| Backlash | 10 mm (0.394 in) |
| Material | Carbon Steel |
| Number of Sprocket Bolts | 16 |
| Bolt Size | 25 mm (25 in) |
| Number of Sprocket Teeth | 23 |
| Number of Teeth | 23 |
Compatible Equipment
- Wheel Excavators: MD6200
- Excavators: 330D L, 340, 336 GC, 336, 345 GC, 336F L XE, 336D2 L, 330D, 330C L, 336F L, 328D LCR, 336E L, 336F LN, 330 L, 336D L, 336F, 330B, 335F LCR, 330C, 325C, 336D2 XE, 336E LH, 336D2 GC, 336E, 336E LN, 340D2 L, 340D L, 335, 336E H, 336D2, 336D, 330
Additional information
| Machine Model | 325C, 328D LCR, 330, 330 L, 330B, 330C, 330C L, 330D, 330D L, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, MD6200 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
