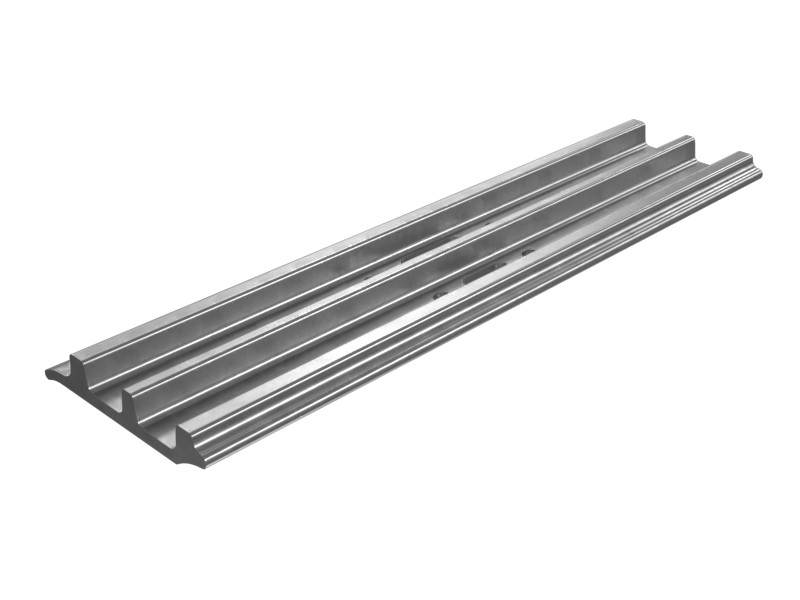

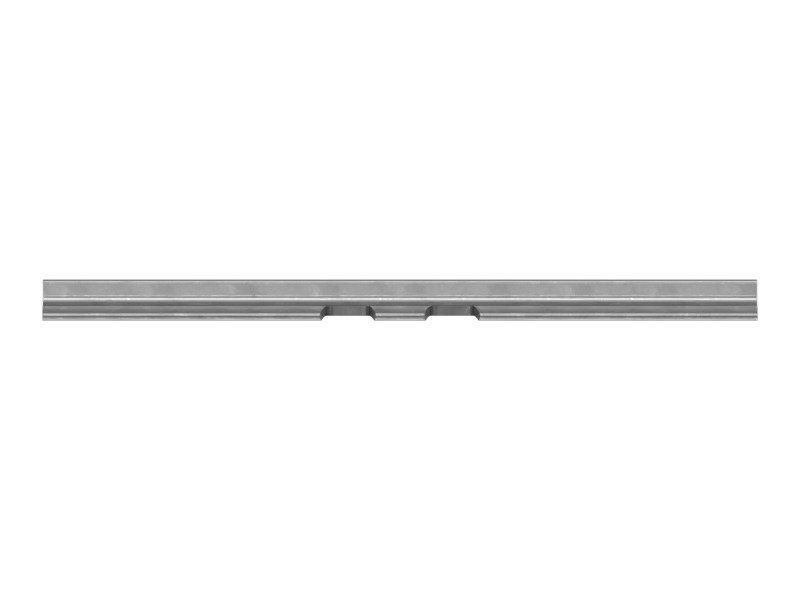

6Y-8180 Track Shoe
Cat® track shoes enhance traction and stability on varied terrain, ensuring efficient and reliable movement.
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features

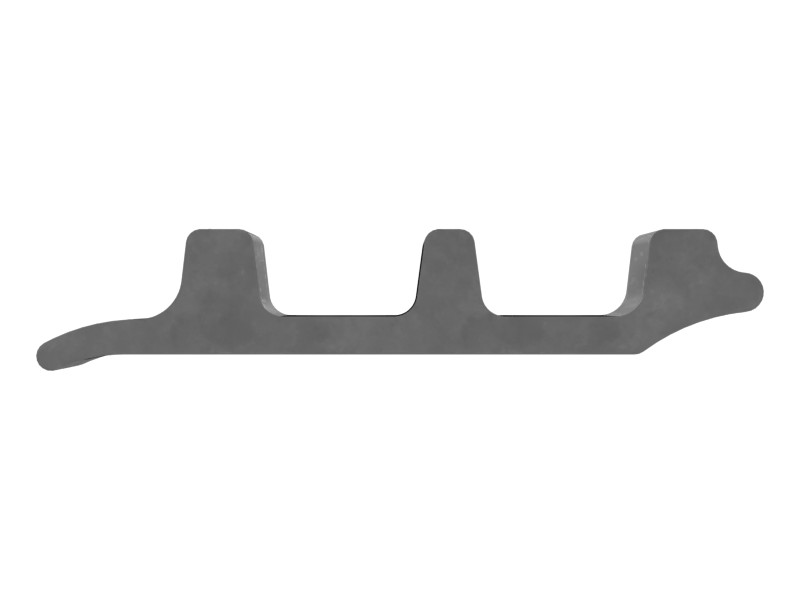

Triple grouser track shoes offer less penetration and traction than single grouser track shoes, but better swing capability. Triple grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and greater maneuverability.

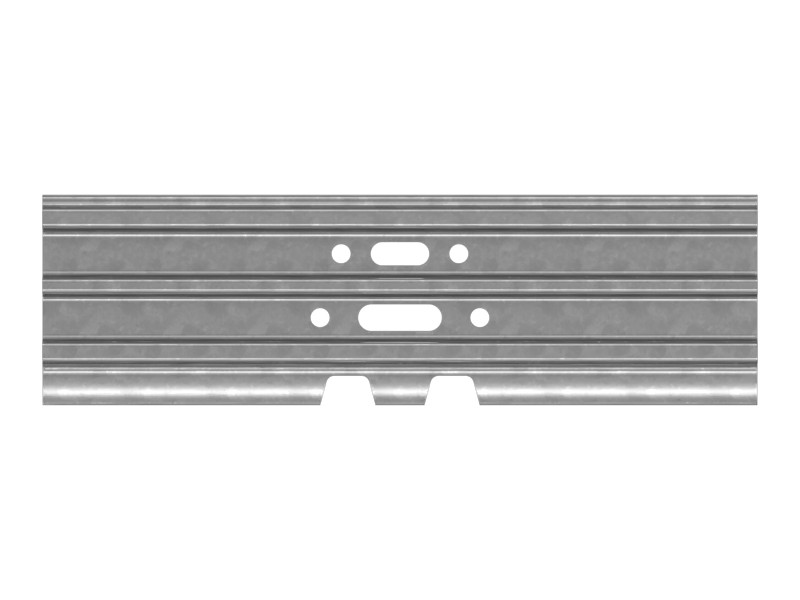

Center punched track shoes have a hole between the bolts that can be used to release packed material that can be compressed.
Specifications
| Track Shoe Type | Triple Grouser, Center Punched |
|---|---|
| Track Shoe Width | 850 mm (33.5 in) |
| Bolt Hole Diameter | 23 mm (0.906 in) |
| Track Shoe Bolt Hole Spacing C | 190 mm |
| Track Shoe Bolt Hole Spacing A | 76 mm |
| Track Shoe Bolt Hole Spacing B | 140 mm |
| Plate Thickness | 13 mm (0.512 in) |
| Track Shoe Section 1E Specification | 1E1743 |
| Undercarriage System | HD |
| Number of Grousers | Triple |
| Abrasion Resistant Material | 0 ARM |
| Hole Type | Slotted |
| Track Reinforcement System | None |
| Connector Type | Regular |
| Main Bolt Thread | M22 |
| Track Bolt Thread | M22 |
| Shear | No |
| Offset | None |
| Track Pitch | 215.9 mm (8.5 in) |
| Bolt Size | M22 mm (0.8661 in) |
| Material | Carbon Steel |
Compatible Equipment
- Excavators: 330D L, 336D L, 336E L, 330C L, 336F LN, 328D LCR, 336E LH, 336F L, 336F, 330C, 336F L XE, 325C, 330B, 330 L, 330D, 335F LCR
