Description

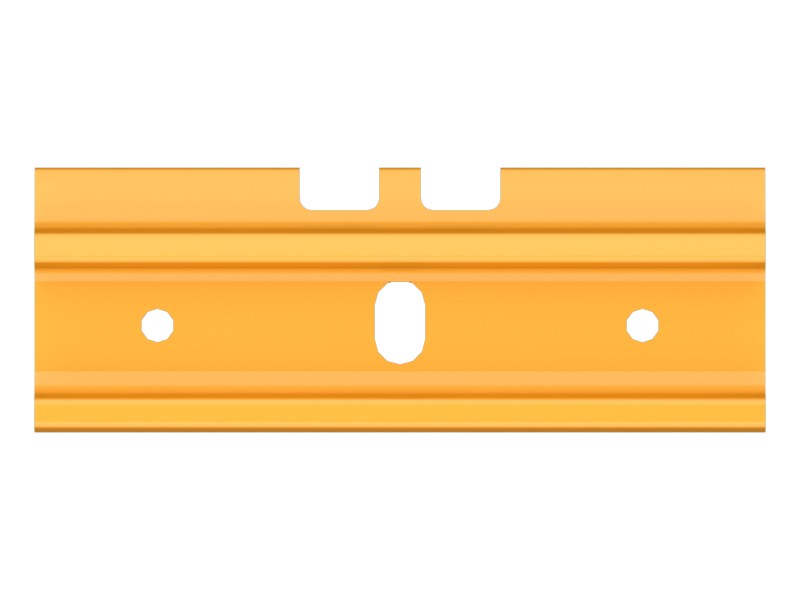

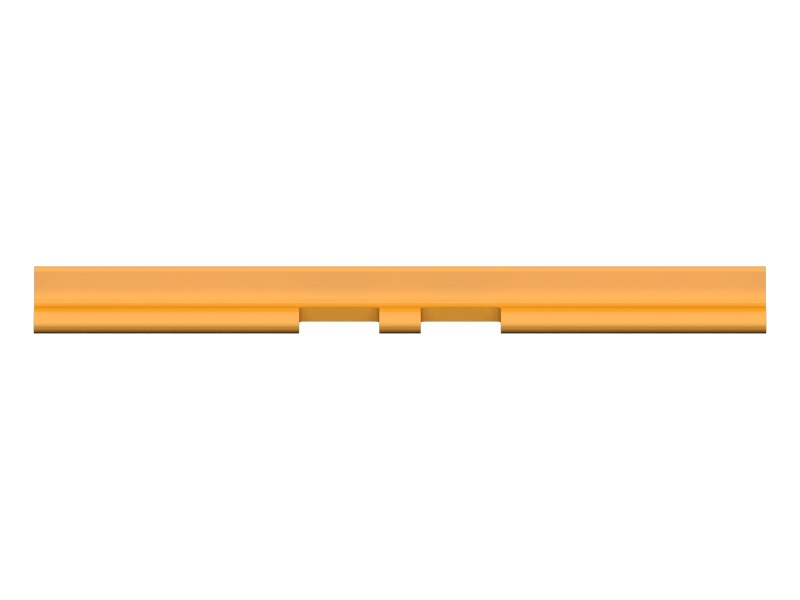

Track shoes provide flotation and traction for the machine while protecting the link group.
Features

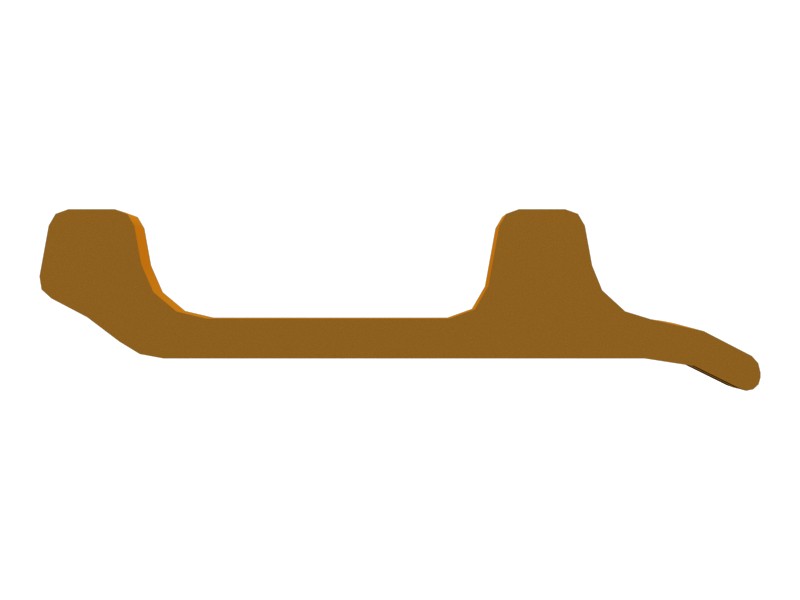

Double grouser track shoes have less penetration and traction than single grouser track shoes but better steering ability. Double grouser track shoes are standard on track-type loaders and excavators because they have lower turning resistance and better maneuverability.
Specifications
| Shear | No |
|---|---|
| Connector Type | Regular |
| Main Bolt Thread | None |
| Abrasion Resistant Material | 0 ARM |
| Track Reinforcement System | None |
| Number of Grousers | Double |
| Hole Type | Slotted |
| Offset | None |
| Track Bolt Thread | 0.5625 |
| Material | Carbon Steel |
| Undercarriage System | HD |
| Track Shoe Section 1E Specification | 1E0170 |
| Track Shoe Bolt Hole Spacing B | 0 mm |
| Track Shoe Bolt Hole Spacing C | 0 mm |
| Bolt Hole Diameter | 14 mm (0.551 in) |
| Track Shoe Bolt Hole Spacing A | 0 mm |
| Plate Thickness | 6 mm (0.236 in) |
| Track Shoe Type | Double Grouser |
| Track Shoe Width | 300 mm (11.8 in) |
Compatible Equipment
- Mini Excavators: 303.5, 303.5E, 303.5C, 303.5D
- Excavators: 302.7CR, 303CR, 303.5CR, 303.5E2 CR, 303C CR, 303
