Description
Track shoes provide flotation and traction for the machine while protecting the link group.
Attributes

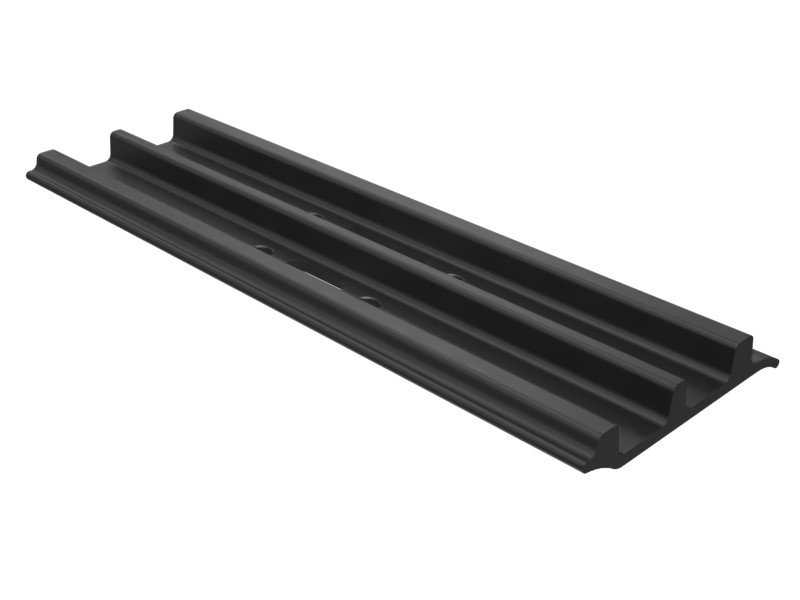

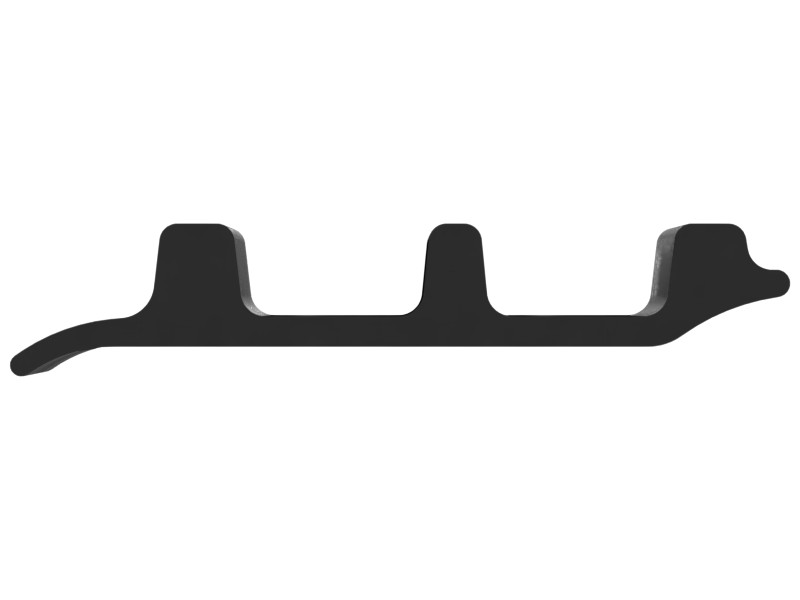

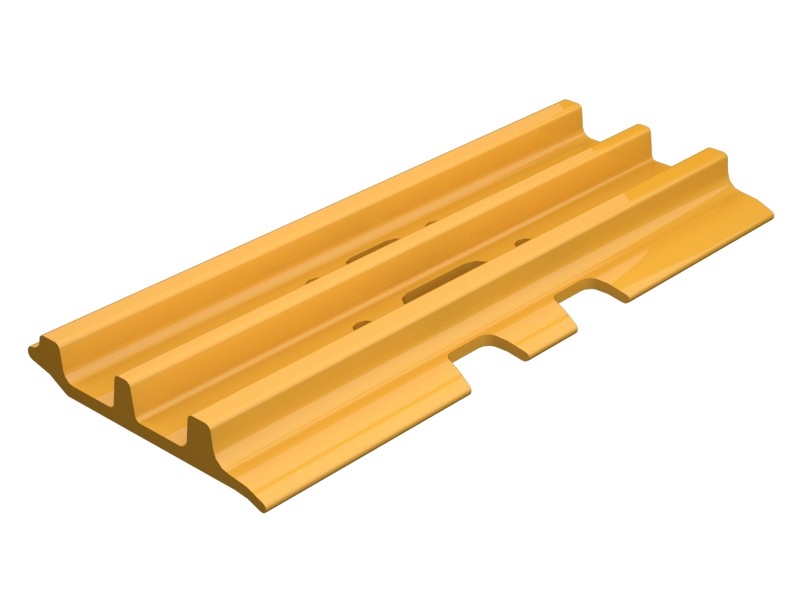

Triple grouser track shoes have less penetration and traction than single grouser track shoes, but offer better steering ability. Triple grouser track shoes are standard on track loaders and excavators because these machines need lower turning resistance and greater maneuverability.
Center punched track shoes have an opening between the bolt holes that releases packed material that can be squeezed out.
Specifications
| Track Shoe Type | Triple Grouser, Center Punched |
|---|---|
| Track Shoe Width | 600 mm (23.6 in) |
| Track Shoe Bolt Hole Spacing A | 69 mm |
| Track Shoe Section 1E Specification | 1E1845 |
| Plate Thickness | 8.5 mm (0.335 in) |
| Track Shoe Bolt Hole Spacing B | 119.57 mm |
| Track Shoe Bolt Hole Spacing C | 155.57 mm |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Connector Type | Regular |
| Offset | None |
| Track Reinforcement System | None |
| Main Bolt Thread | M20 |
| Hole Type | Slotted |
| Shear | No |
| Abrasion Resistant Material | 0 ARM |
| Number of Grousers | Triple |
| Track Bolt Thread | M20 |
| Material | Carbon Steel |
| Undercarriage System | HD |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 320 GC, 320 GX, 320D3 GC, 320D3, 318D2, 318D2 L, 323D L, 320E, 320C, 320D2 L, 320B, 315D L, 320D2 GC, 323D2 L, 320D L, 323, 320D RR, 320, 320D GC, 315C, 323D2, 318D L, 320D, 320D2
