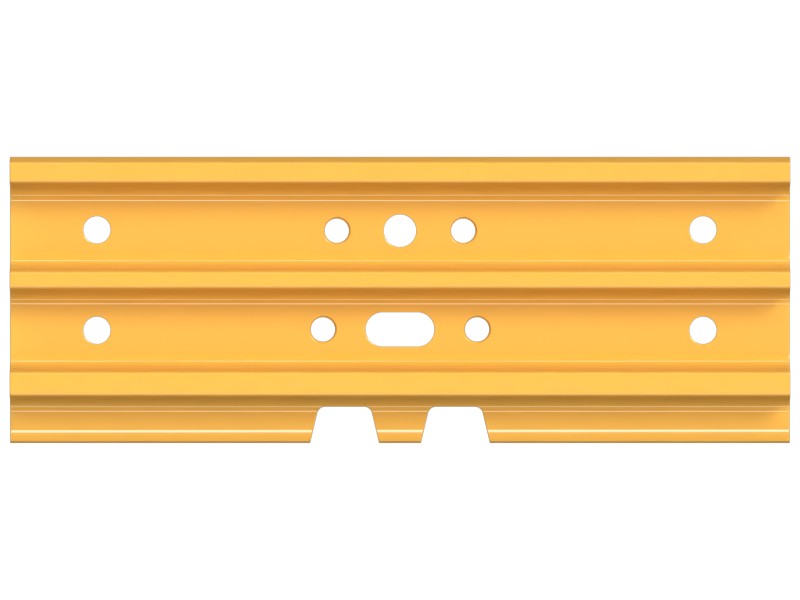

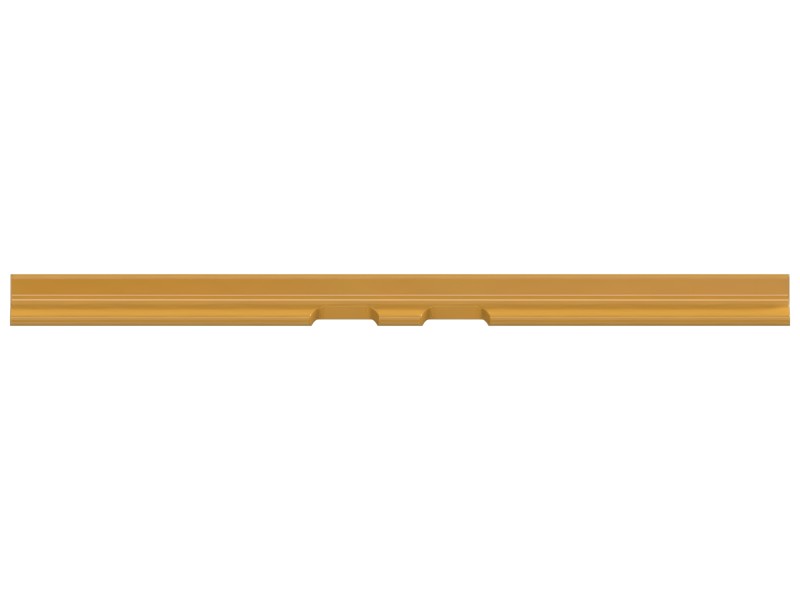

136-2400 450 mm Wide Track Shoe
Cat® 450 mm wide 450 triple grouser track shoes can provide improved traction, stability, and undercarriage support
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features

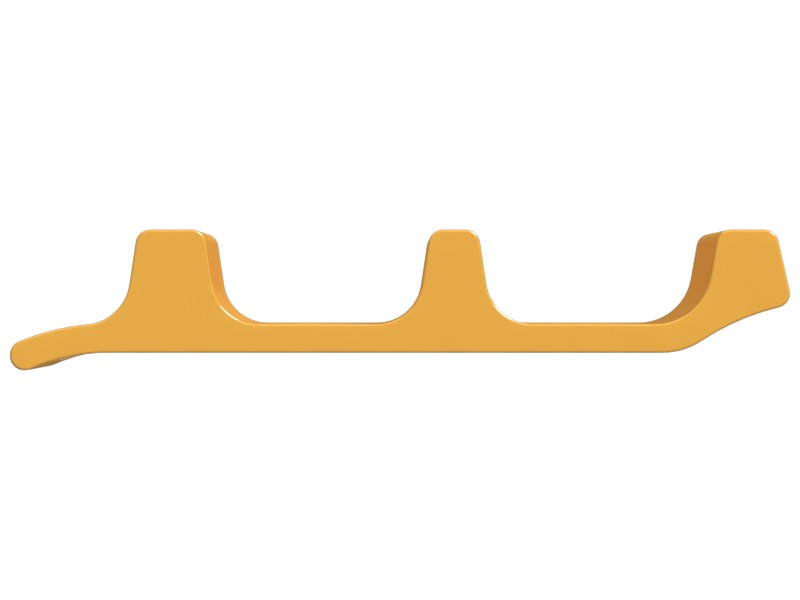

Triple grouser track shoes offer less penetration and traction than single grouser track shoes, but better swing capability. Triple grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and greater maneuverability.
Specifications
| Material | Carbon Steel |
|---|---|
| Track Bolt Thread | 0.5625 |
| Number of Grousers | Triple |
| Abrasion Resistant Material | 0 ARM |
| Connector Type | Regular |
| Main Bolt Thread | None |
| Shear | No |
| Track Reinforcement System | Quad Track |
| Offset | None |
| Hole Type | None |
| Track Shoe Bolt Hole Spacing A | 58 mm |
| Track Shoe Bolt Hole Spacing B | 73 mm |
| Plate Thickness | 6 mm (0.236 in) |
| Track Shoe Section 1E Specification | 1E1541B |
| Bolt Hole Diameter | 14.3 mm (0.563 in) |
| Track Shoe Bolt Hole Spacing C | 89 mm |
| Undercarriage System | HD |
| Track Shoe Type | Triple Grouser |
| Track Shoe Width | 450 mm (17.7 in) |
Compatible Equipment
- Mini Excavators: 307, 307C, 308, 310, 308.5, 308E2, 307E2, 307B, 307D
- Excavators: 308D, 308E, 307E, 307.5
