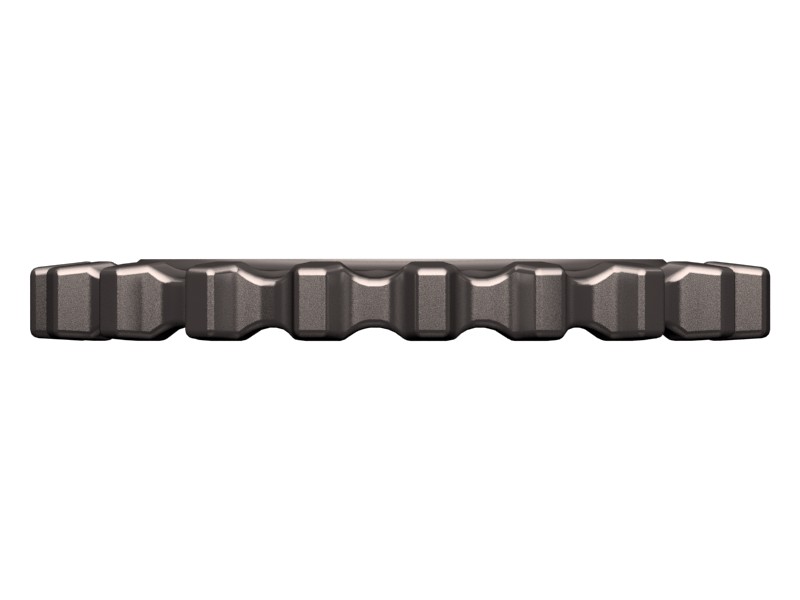

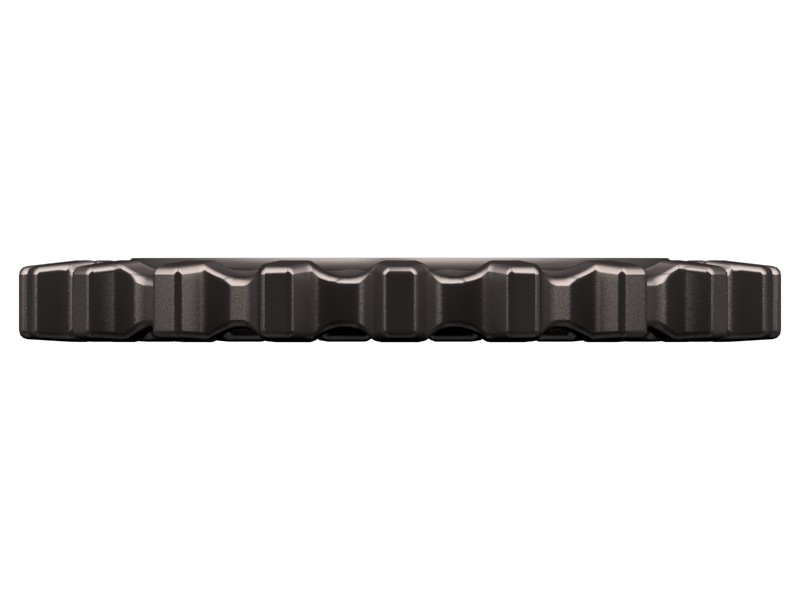

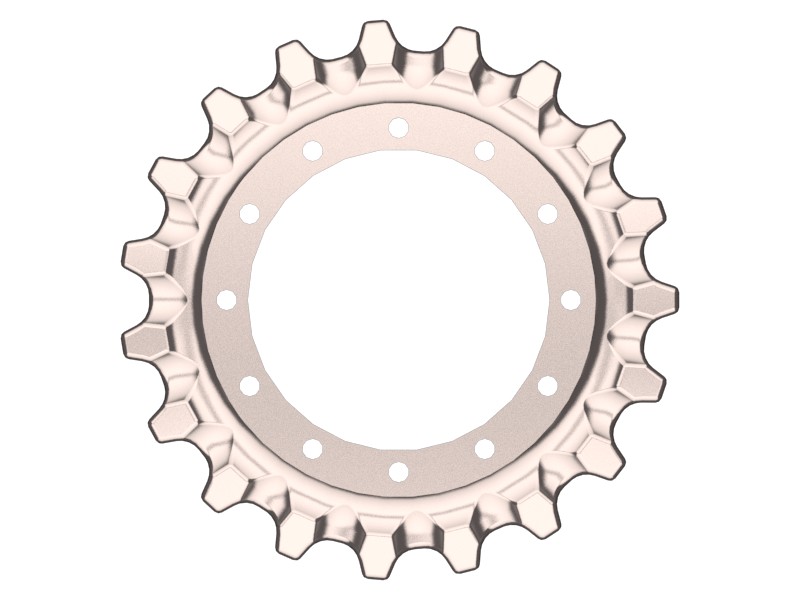

260-6341 230 mm ID Sprocket
Cat® 230 mm ID powertrain sprockets efficiently transfer power and torque from the engine to other components.
Description
Cat® sprockets transmit engine power to the link group and engage the link group to produce motion.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Undercarriage System | HD |
|---|---|
| Pressure Reducing | No |
| Bushing Radius | 17.9 mm (0.705 in) |
| Pitch | 135 mm (5.315 in) |
| Packing Offset Diameter | 99999.99 |
| Bolt Thread Size | M14 |
| Bolt Circle Diameter | 262 mm (10.315 in) |
| Number of Teeth | 19 |
| Tooth Width | 46 mm (1.811 in) |
| Backlash | 7 mm (0.276 in) |
| Pitch Diameter | 415.8 |
| Material Type | Plain Steel |
| Sprocket Mounting Type | Offset |
| Number of Bolts | 12 |
| Tip Diameter | 427 mm (16.811 in) |
| Groove Angle | 56 degrees |
| Noise Reduction Lugs | No |
| Outside Diameter | 427 mm (16.8 in) |
| Inside Diameter | 230 mm (9.1 in) |
| Hole Size | 16 (12X) mm (0.63 (12X) in) |
| Number of Sprocket Teeth | 19 |
| Height | 46 mm (1.8 in) |
| Approximate Weight | 15.09 kg (33.3 lb) |
Compatible Equipment
- Mini Excavators: 305E2, 305.5E2, 305.5E
- Excavators: 305E2 CR, 305C CR
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
