Description

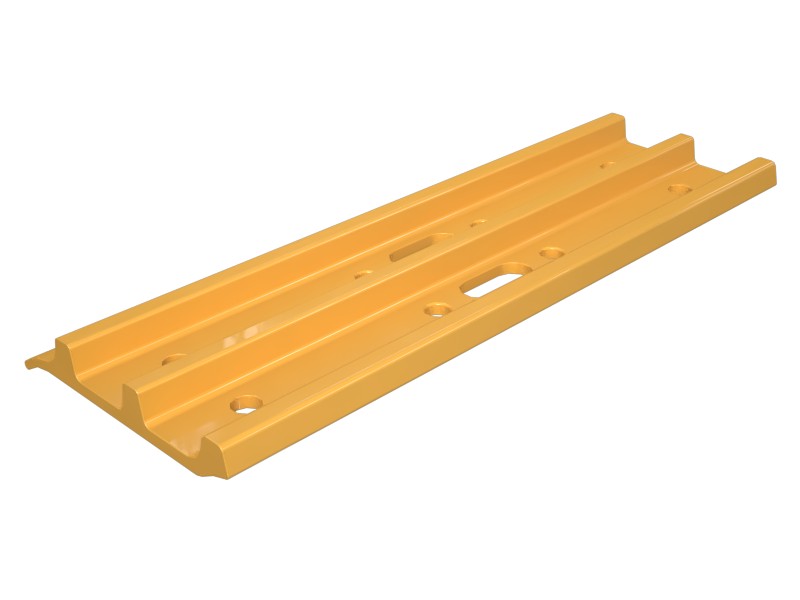

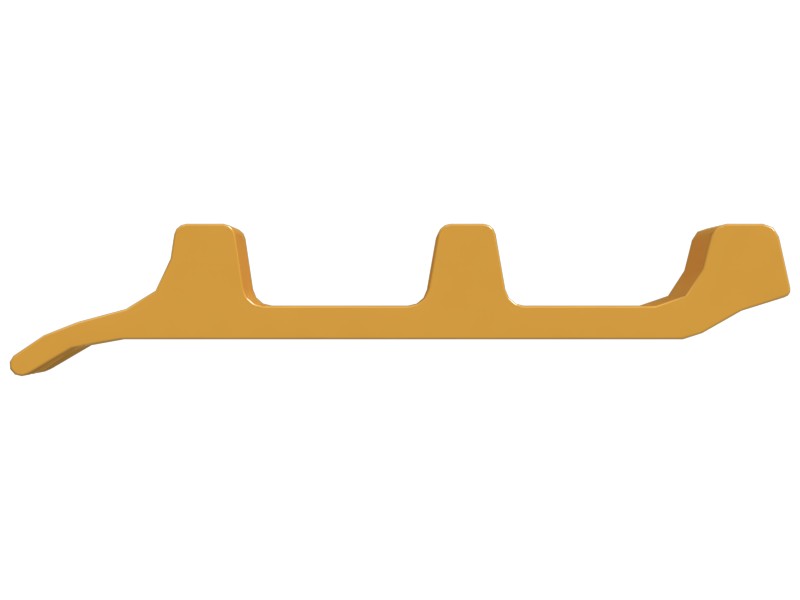

The triple grouser track shoe is part of the undercarriage and provides traction and support. It consists of three raised grousers that run across the entire track shoe; they grip the ground and distribute weight evenly across the track.
Features
- Hardened to a Rockwell hardness scale value of 42-51, indicating its resistance to deformation.
- Direct hardened for improved wear resistance.
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
Applications
The triple grouser track shoe supports the movement of the track.
Specifications
| Undercarriage System | GD |
|---|---|
| Track Bolt Thread | M16 |
| Main Bolt Thread | None |
| Number of Grousers | Triple |
| Track Shoe Type | Not Applicable |

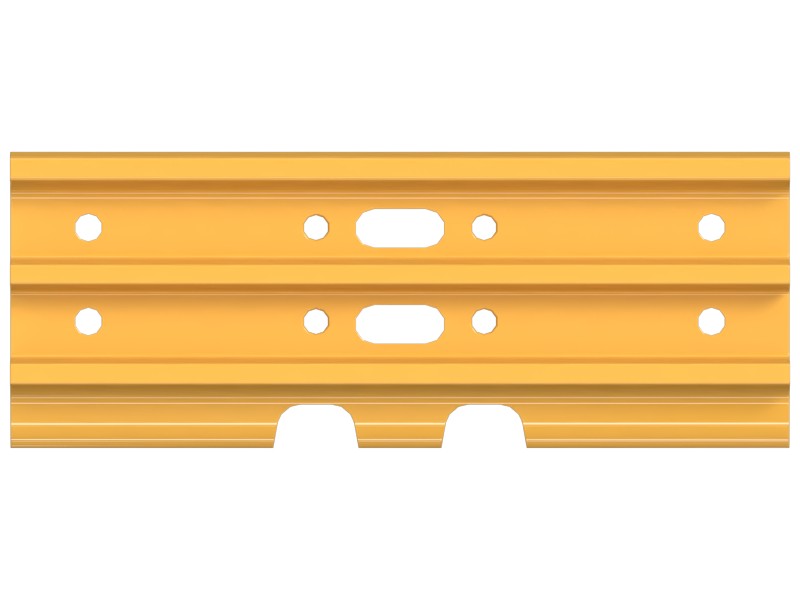

| Hole Type | Slotted |
| Track Shoe Width | 500 mm (19.685 in) |
| Shear | No |
| Abrasion Resistant Material | 0 ARM |
| Connector Type | Regular |
| Offset | None |
| Track Reinforcement System | Quad Track |
| Track Shoe Bolt Hole Spacing C | 107.94 mm |
| Track Shoe Bolt Hole Spacing B | 107.94 mm |
| Track Shoe Bolt Hole Spacing A | 60.32 mm |
| Track Shoe Section 1E Specification | 1E1541C |
| Plate Thickness | 8 mm (0.315 in) |
| Bolt Hole Diameter | 16.3 mm (0.642 in) |
| Material | Alloy Steel |
Compatible Equipment
- Excavators: 316 GC, 313 GC, 313, 313 GX, 312 GX, 312 GC, 315, 315 GC, 313D2, 313D2 GC
