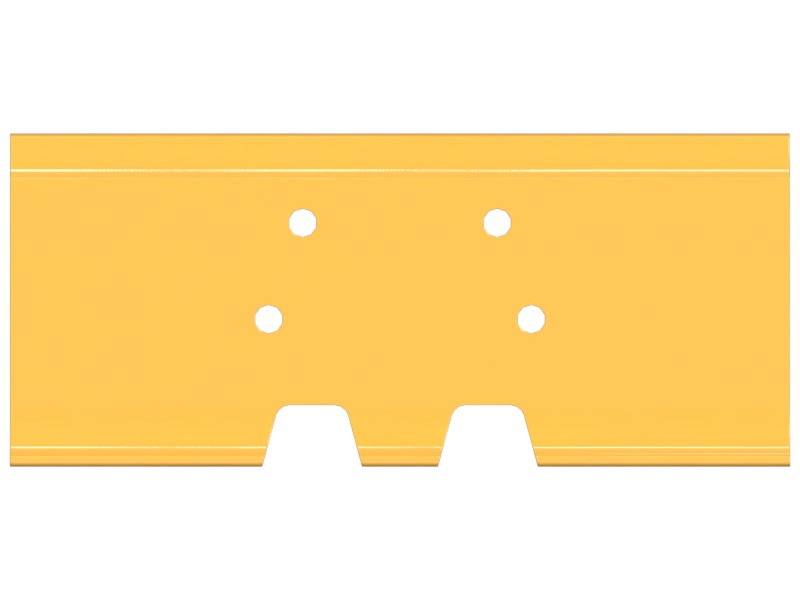

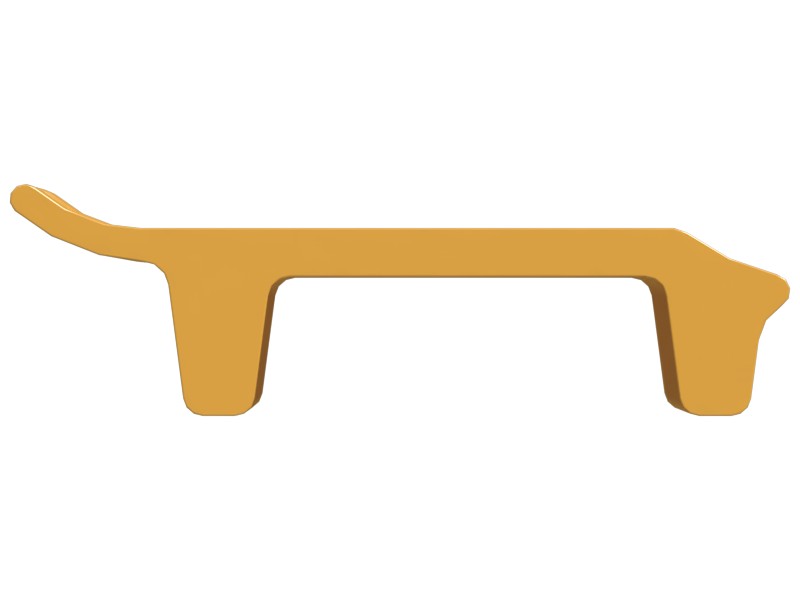

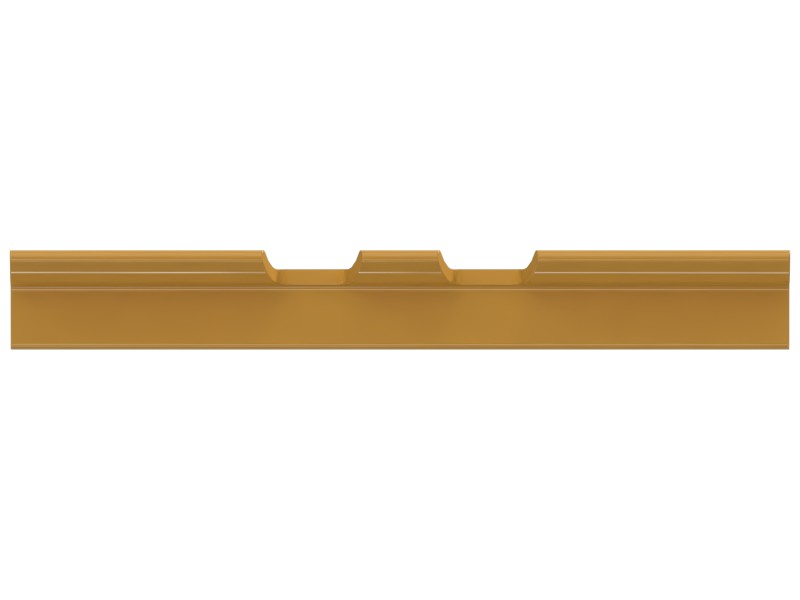

Description
Track shoes provide flotation and traction for the machine while protecting the link group.
Attributes
Double grouser track shoes have less penetration and traction than single grouser track shoes but better steering ability. Double grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and greater maneuverability.
Specifications
| Track Reinforcement System | None |
|---|---|
| Number of Grousers | Double |
| Hole Type | None |
| Offset | None |
| Main Bolt Thread | Unknown |
| Abrasion Resistant Material | 0 ARM |
| Track Bolt Thread | M20 |
| Connector Type | Regular |
| Shear | No |
| Undercarriage System | HD |
| Track Shoe Section 1E Specification | 1E1792 |
| Bolt Hole Diameter | 20.37 mm (0.802 in) |
| Track Shoe Bolt Hole Spacing C | 185.29 mm |
| Track Shoe Bolt Hole Spacing A | 68 mm |
| Plate Thickness | 14.5 mm (0.571 in) |
| Track Shoe Bolt Hole Spacing B | 137.29 mm |
| Track Shoe Width | 550 mm (21.7 in) |
| Material | Boron Steel |
| Track Shoe Type | Double Grouser |
Compatible Equipment
- Track Loaders: 963, 963K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
