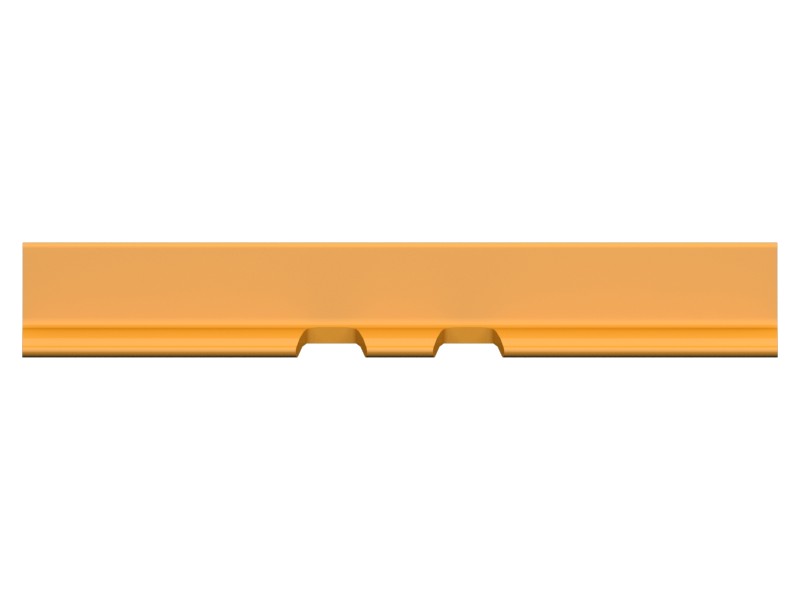

132-1334 Track Shoe
Cat® 600 mm Wide 600 Grouser Track Shoe provides higher traction, stability, and undercarriage support.
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
Extreme duty track shoes should be used if moderate duty track shoes bend or crack, or when link life exceeds shoe life. Extreme duty track shoes have higher resistance to bending and cracking and withstand abrasive material better than moderate duty track shoes. Extreme duty track shoes are made of tough alloy steel.
Specifications
| Track Shoe Width | 600 mm (23.6 in) |
|---|---|
| Track Shoe Type | Extreme Duty, Single Grouser |
| Track Shoe Bolt Hole Spacing A | 68 mm |
| Bolt Hole Diameter | 20.37 mm (0.802 in) |
| Plate Thickness | 14 mm (0.551 in) |
| Track Shoe Section 1E Specification | 1E1746 |
| Track Shoe Bolt Hole Spacing B | 120.84 mm |
| Track Shoe Bolt Hole Spacing C | 168.84 mm |
| Main Bolt Thread | None |
| Connector Type | Regular |
| Shear | No |
| Track Reinforcement System | None |
| Offset | None |
| Number of Grousers | Single |
| Abrasion Resistant Material | 0 ARM |
| Track Bolt Thread | 0.75 |
| Hole Type | None |
| Undercarriage System | HD |
| Material | Boron Steel |
Compatible Equipment
- Dozers: D6N, D6M
