Description

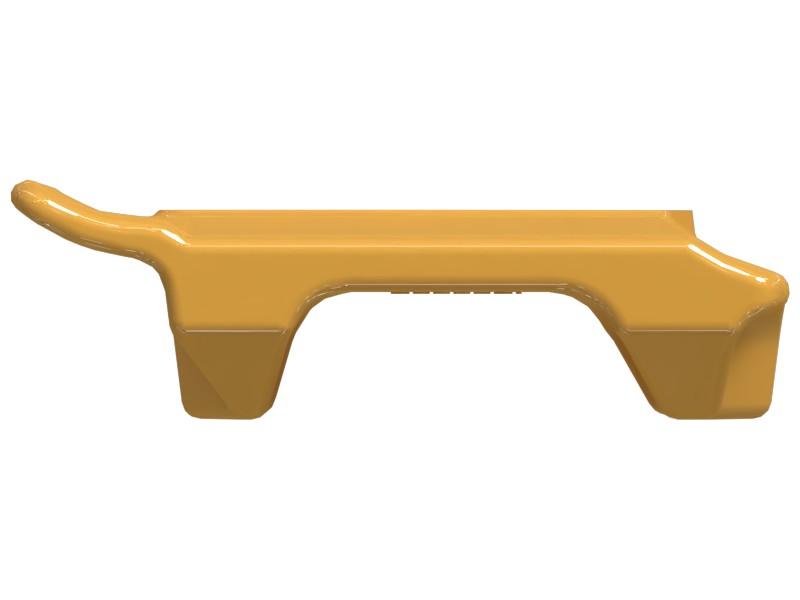

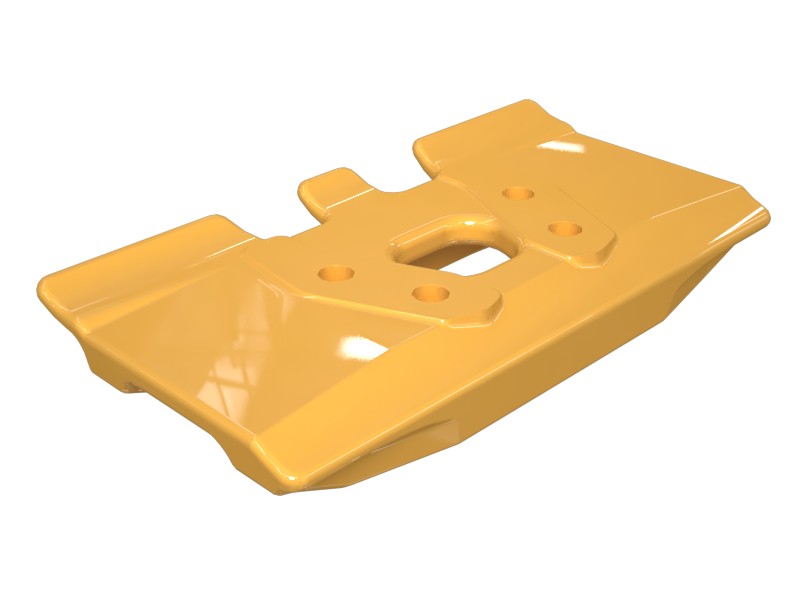

A track shoe is a key component that provides traction and support for tracked machinery. It is designed to withstand the extreme forces and rough terrain encountered during operation. With its robust construction and specialized design, the track shoe ensures excellent grip, durability, and stability, allowing tracked equipment to move smoothly and operate efficiently. It plays a key role in distributing weight evenly, preventing track slippage, and keeping the track system intact.
Attributes
- Durable construction for long-lasting performance.
- Designed to withstand rough terrain and extreme working conditions.
- Distributes weight evenly and prevents track slippage.
- Wear resistant with long service life.
Applications
The track shoe ensures reliable grip and minimizes slippage, helping to improve the overall performance and productivity of tracked machinery.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Hole Type | Trapezoidal |
| Connector Type | Regular |
| Abrasion Resistant Material | 0 ARM |
| Track Reinforcement System | None |
| Number of Grousers | Double |
| Track Shoe Type | Not Applicable |
| Shear | No |
| Main Bolt Thread | None |
| Track Bolt Thread | M39 |
| Track Shoe Width | 800 mm (31.496 in) |
| Offset | None |
| Undercarriage System | HD |
| Bolt Hole Diameter | 40 mm (1.575 in) |
| Plate Thickness | 43 mm (1.693 in) |
| Track Shoe Bolt Hole Spacing B | 221 mm |
| Track Shoe Bolt Hole Spacing C | 298 mm |
| Track Shoe Section 1E Specification | 1E1058 |
| Track Shoe Bolt Hole Spacing A | 102.3 mm |
Compatible Equipment
- Excavators: 6020B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
