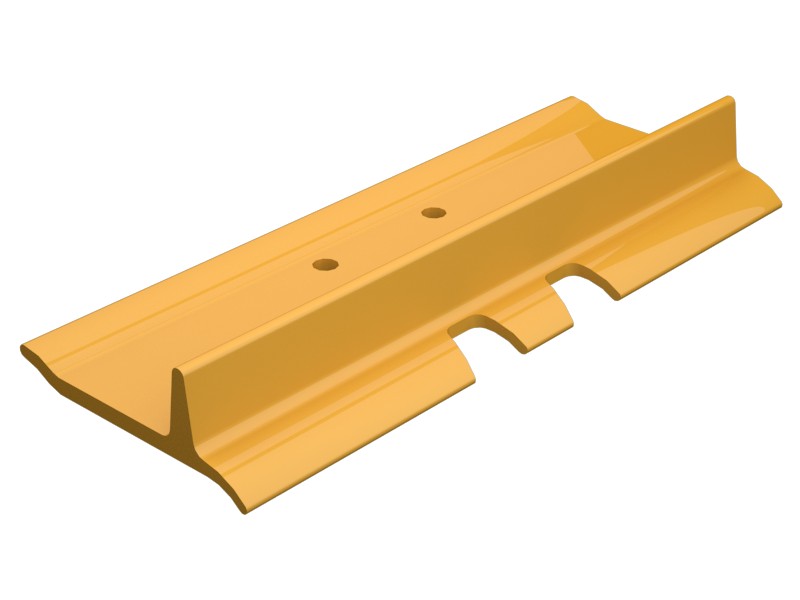

159-4033 Track Shoe
Track Shoe (Double Grouser)
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
Double grouser track shoes have less penetration and traction than single grouser track shoes but better turning ability. Double grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and offer greater maneuverability.
Specifications
| Undercarriage System | HD |
|---|---|
| Track Shoe Section 1E Specification | 1E1796 |
| Material | Boron Steel |
| Track Shoe Type | Double Grouser |
| Track Shoe Width | 510 mm (20.1 in) |
| Hole Type | Round |
| Offset | Unknown |
| Track Reinforcement System | Unknown |
| Abrasion Resistant Material | 0 ARM |
| Shear | No |
| Main Bolt Thread | Unknown |
| Number of Grousers | Double |
| Track Bolt Thread | Unknown |
| Connector Type | Regular |
| Track Shoe Bolt Hole Spacing C | 143.8 mm |
| Track Shoe Bolt Hole Spacing A | 57 mm |
| Plate Thickness | 0 mm (0 in) |
| Bolt Hole Diameter | 17 mm (0.669 in) |
| Track Shoe Bolt Hole Spacing B | 103.8 mm |
Additional information
| Part Source | Genuine OEM |
|---|
