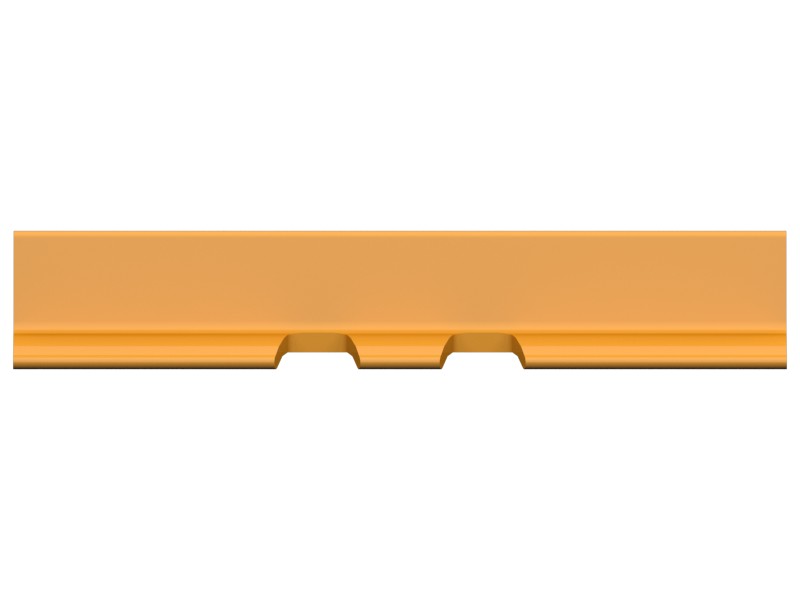

Description
Track shoes provide flotation and traction for the machine while protecting the link group. The master track shoe mounts on the master track link.
Features
Extreme duty track shoes should be used whenever moderate duty track shoes bend or break, or when link life exceeds shoe life. Extreme duty shoes have higher strength to resist bending and breaking, and more wear material that tolerates wear better than moderate duty shoes. Extreme duty track shoes are made of tough alloy steel.
Specifications
| Track Shoe Type | Extreme Duty, Single Grouser |
|---|---|
| Main Bolt Thread | 0.75 |
| Track Reinforcement System | None |
| Offset | None |
| Hole Type | None |
| Track Shoe Width | 510 mm (20.1 in) |
| Shear | No |
| Track Bolt Thread | None |
| Abrasion Resistant Material | 0 ARM |
| Connector Type | Master |
| Number of Grousers | Single |

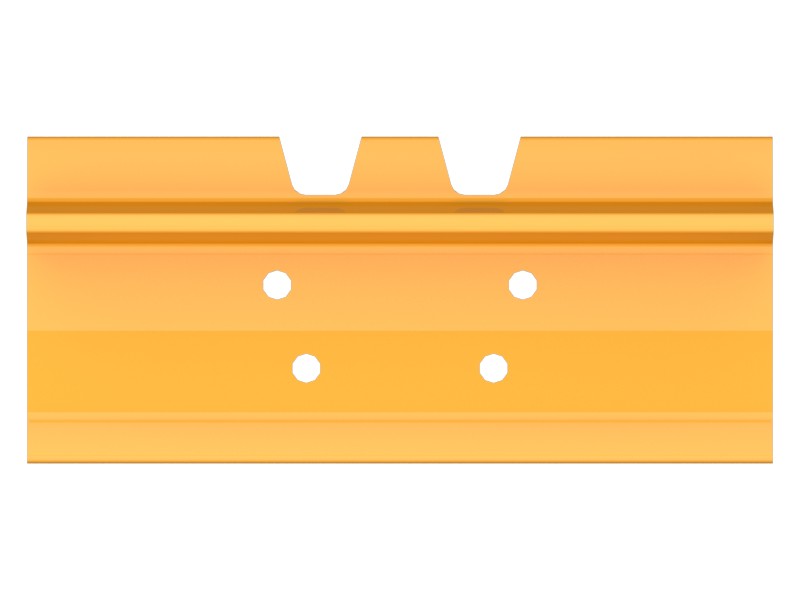

| Bolt Hole Diameter | 20.37 mm (0.802 in) |
| Track Shoe Bolt Hole Spacing B | 128.24 mm |

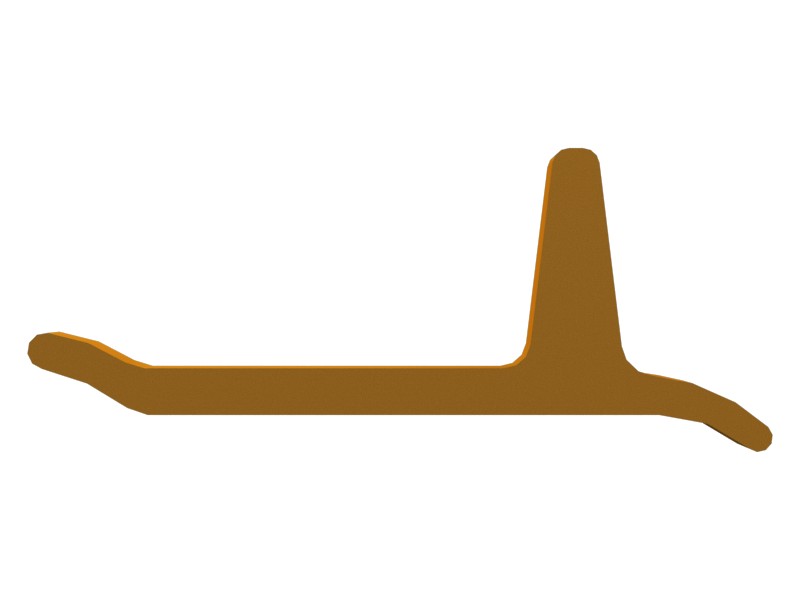

| Track Shoe Section 1E Specification | 1E1746 |
| Material | Boron Steel |
| Plate Thickness | 14 mm (0.551 in) |
| Track Shoe Bolt Hole Spacing A | 57 mm |
| Track Shoe Bolt Hole Spacing C | 168.24 mm |
| Undercarriage System | HD |
Compatible Equipment
- Dozers: D5H
