Description

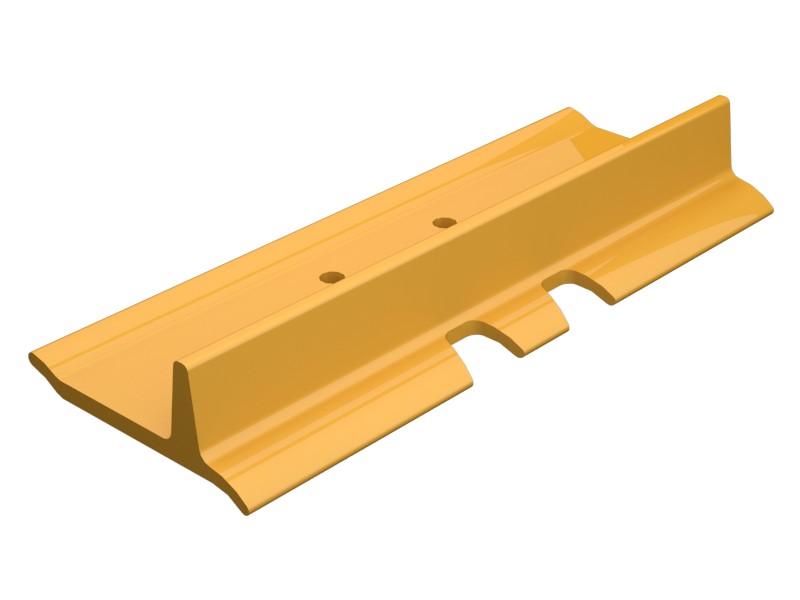

Track shoes provide flotation and traction for the machine while protecting the link group. The master track shoe mounts on the master track link.
Features
Extreme duty track shoes should be used if moderate duty track shoes bend or crack, or when link life exceeds shoe life. Extreme duty track shoes have higher resistance to bending and cracking and withstand abrasive material better than moderate duty track shoes. Extreme duty track shoes are made of tough alloy steel.
Specifications
| Undercarriage System | HD |
|---|---|
| Track Shoe Type | Extreme Duty, Single Grouser |
| Track Bolt Thread | None |
| Shear | No |
| Track Shoe Width | 600 mm (23.6 in) |
| Hole Type | None |
| Offset | None |
| Number of Grousers | Single |
| Main Bolt Thread | 0.75 |
| Track Reinforcement System | None |
| Connector Type | Master |
| Abrasion Resistant Material | 0 ARM |
| Material | Boron Steel |
| Track Shoe Section 1E Specification | 1E1746 |
| Bolt Hole Diameter | 20.37 mm (0.802 in) |
| Track Shoe Bolt Hole Spacing B | 128.24 mm |
| Track Shoe Bolt Hole Spacing C | 168.24 mm |
| Plate Thickness | 14 mm (0.551 in) |
| Track Shoe Bolt Hole Spacing A | 57 mm |
Compatible Equipment
- Dozers: D6N, D6M
