Description

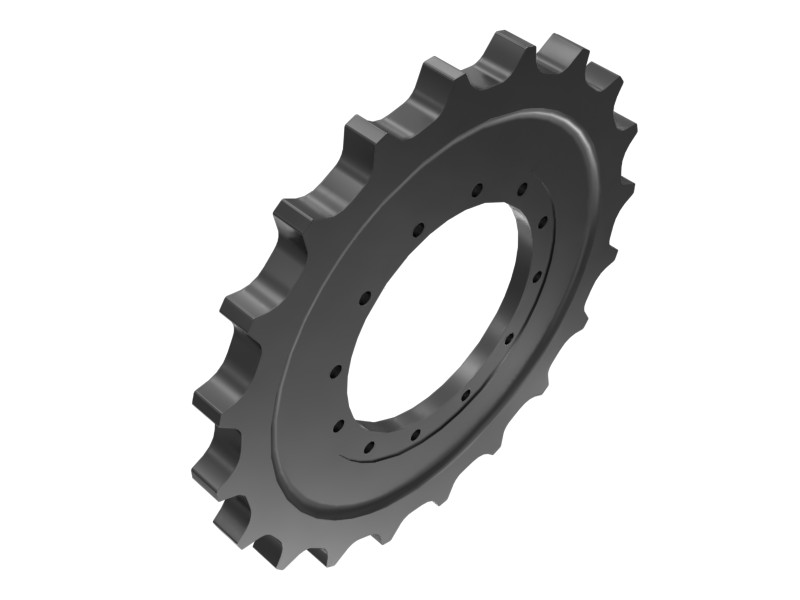

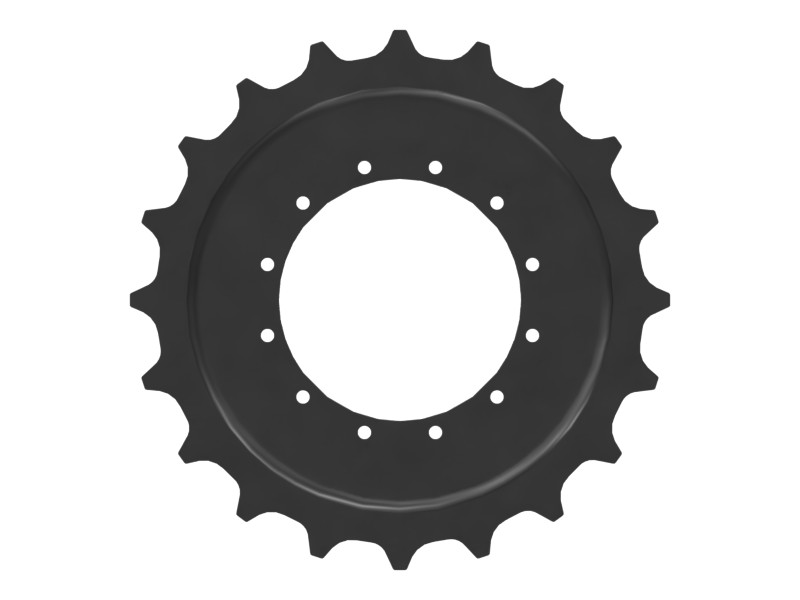

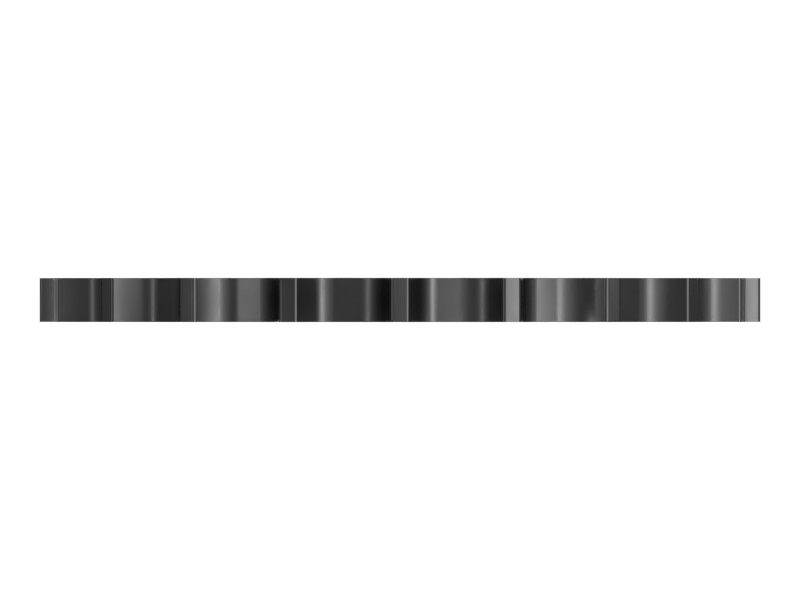

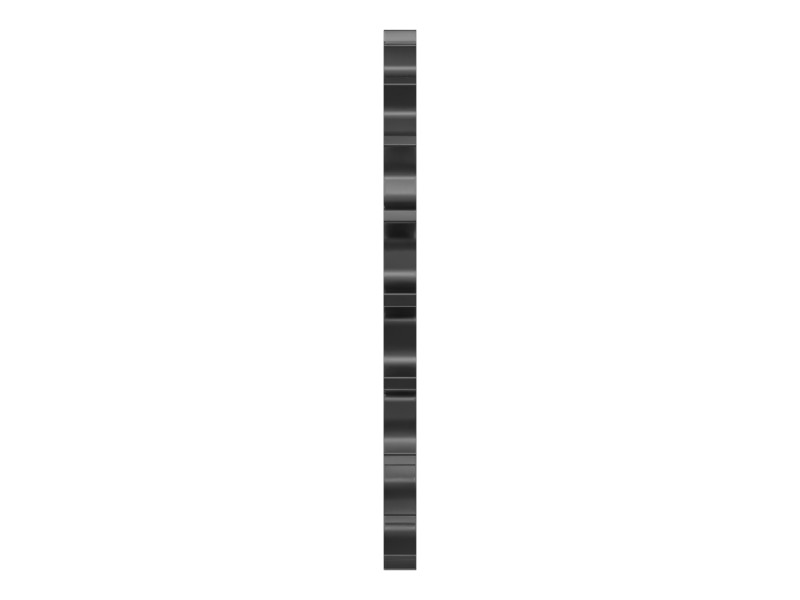

Sprockets transmit engine power to the link group and engage it to produce motion.
Specifications
| Material | Alloy Steel |
|---|---|
| Undercarriage System | HD |
| Pressure Reducing | No |
| Pitch | 154 mm (6.063 in) |
| Bolt Thread Size | M14 |
| Noise Reduction Lugs | No |
| Number of Sprocket Teeth | 21 |
| Track Shoe Type | Extreme Duty, Single Grouser, Trapezoidal |
| Bolt Size | 15 mm (15 in) |
| Number of Teeth | 21 |
| Number of Bolts | 12 |
| Tooth Width | 35.5 mm (1.398 in) |
| Groove Angle | 64 degrees |
| Sprocket Mounting Type | Offset |
| Pitch Diameter | 522.5 |
| Backlash | 7.9 mm (0.311 in) |
| Inside Diameter | 265.1 mm (10.437 in) |
| Bolt Circle Diameter | 300 mm (11.811 in) |
| Bushing Radius | 20.9 mm (0.823 in) |
| Tip Diameter | 533.6 mm (21.008 in) |
| Material Type | Plain Steel |
| Packing Offset Diameter | 480.7 |
Compatible Equipment
- Mini Excavators: 307C, 307B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
