126-5066 Track Shoe
Cat® 600 mm wide 600 triple grouser track shoes can provide improved traction, stability, and undercarriage support
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
Triple grouser track shoes offer less penetration and traction than single grouser track shoes, but better swing capability. Triple grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and greater maneuverability.
Specifications
| Connector Type | Regular |
|---|---|
| Number of Grousers | Triple |
| Abrasion Resistant Material | 0 ARM |
| Shear | No |
| Track Reinforcement System | None |
| Track Bolt Thread | M22 |
| Offset | None |
| Hole Type | Slotted |
| Main Bolt Thread | None |
| Bolt Hole Diameter | 23 mm (0.906 in) |
| Plate Thickness | 11 mm (0.433 in) |

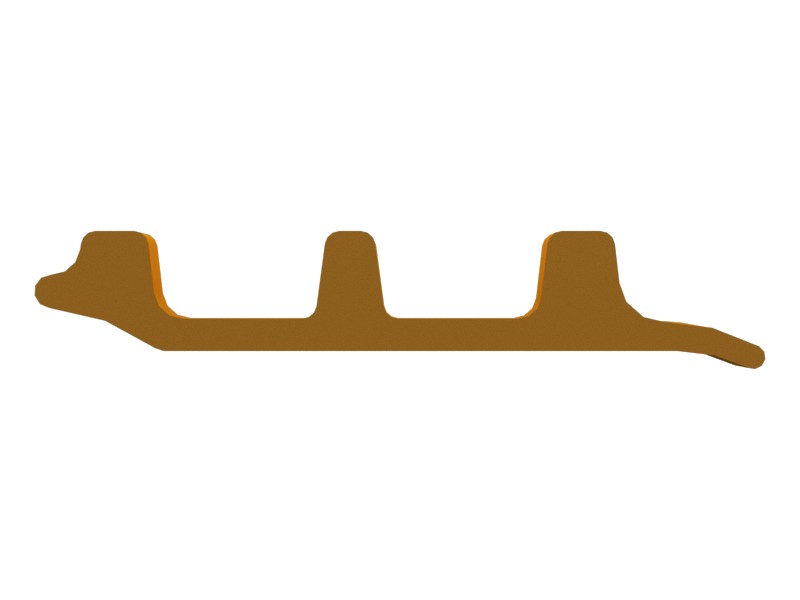

| Track Shoe Section 1E Specification | 1E1744 |
| Track Shoe Bolt Hole Spacing B | 140 mm |
| Track Shoe Bolt Hole Spacing A | 76 mm |
| Track Shoe Bolt Hole Spacing C | 190 mm |
| Undercarriage System | HD |
| Material | Carbon Steel |
| Track Pitch | 215.9 mm (8.5 in) |
| Bolt Size | M22 mm (0.8661 in) |
| Track Shoe Width | 600 mm (23.6 in) |
| Track Shoe Type | Triple Grouser, Center Punched |
Compatible Equipment
- Excavators: 330D L, 336D2 L, 336D2 XE, 328D LCR, 330C, 336E LH, 336D L, 330C L, 336F L, 336F, 336F LN, 312D, 336E L, 336E, 336D2 GC, 330B, 330D, 336E H, 330 L, 325C, 336E LN, 336F L XE, 335F LCR, 336D2, 336D
