Description

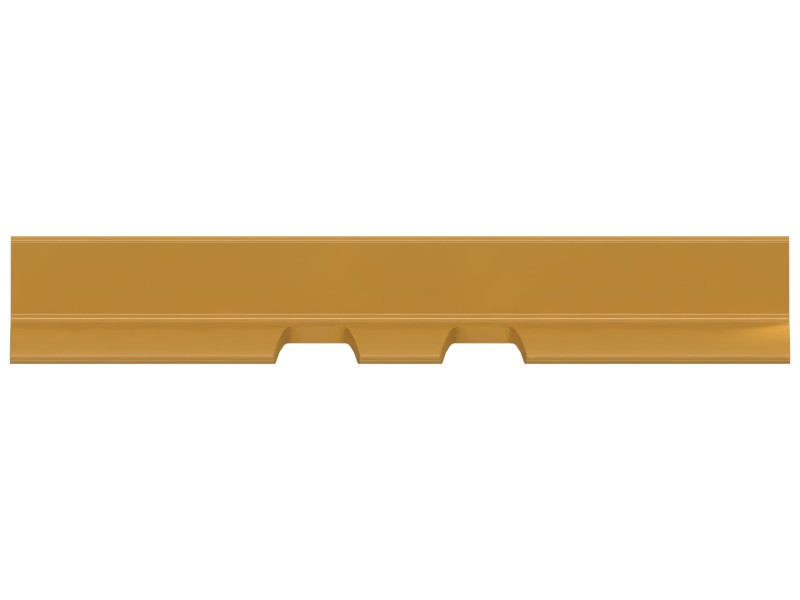

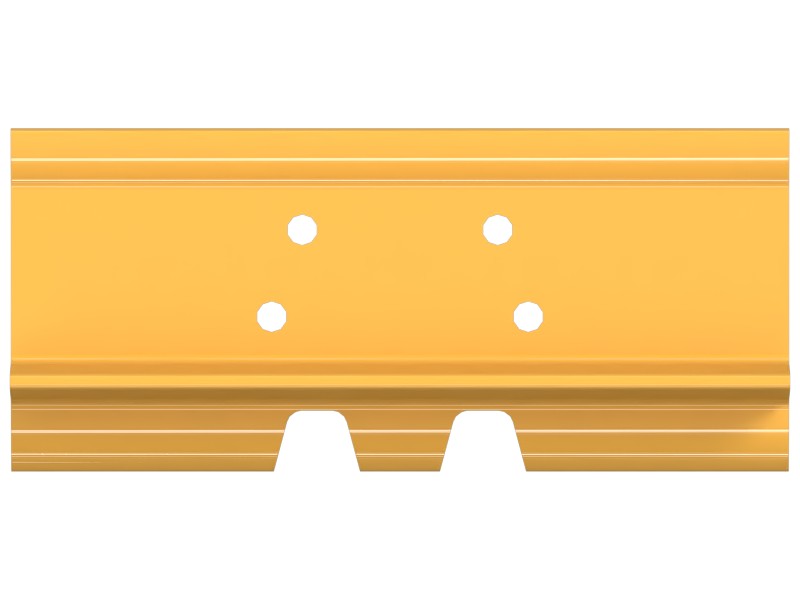

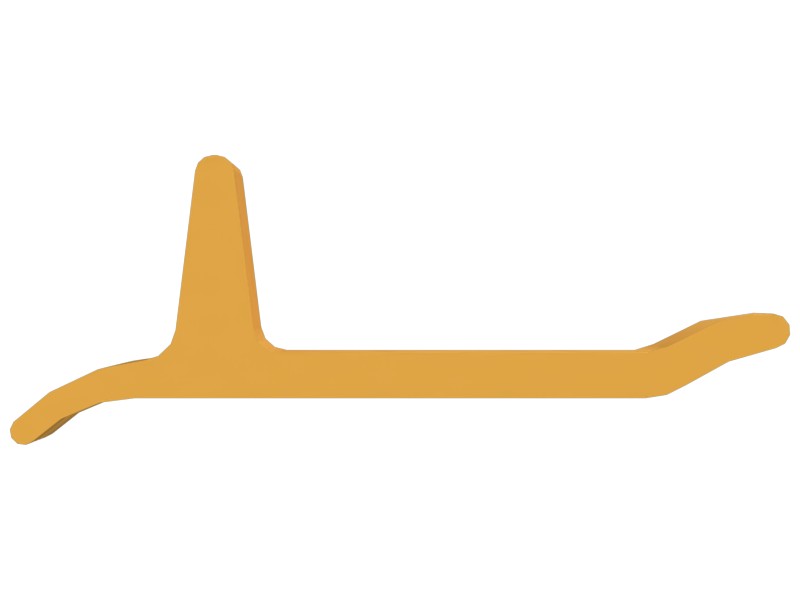

Track shoes provide flotation and traction for the machine while protecting the link group. The master shoe plate mounts on the master track link.
Attributes
Moderate Duty track shoes are the best choice for low to moderate impact and wear conditions. Moderate Duty track shoes deliver optimum penetration and traction, strong wear resistance, and resistance to bending, and are available in a variety of widths and retrofit models. Moderate Duty track shoes are made from modified medium carbon steel.
Specifications
| Track Shoe Bolt Hole Spacing C | 168.24 mm |
|---|---|
| Track Shoe Bolt Hole Spacing A | 57 mm |
| Track Shoe Section 1E Specification | 1E1393 |
| Bolt Hole Diameter | 20.37 mm (0.802 in) |
| Plate Thickness | 13 mm (0.512 in) |
| Track Shoe Bolt Hole Spacing B | 128.24 mm |
| Track Bolt Thread | None |
| Abrasion Resistant Material | 0 ARM |
| Track Reinforcement System | None |
| Offset | None |
| Track Shoe Width | 510 mm (20.1 in) |
| Main Bolt Thread | 0.75 |
| Connector Type | Master |
| Hole Type | None |
| Shear | No |
| Number of Grousers | Single |
| Track Shoe Type | Moderate Duty, Single Grouser |
| Undercarriage System | HD |
| Material | Boron Steel |
Compatible Equipment
- Dozers: D4, D6K2, D5H, D6M
