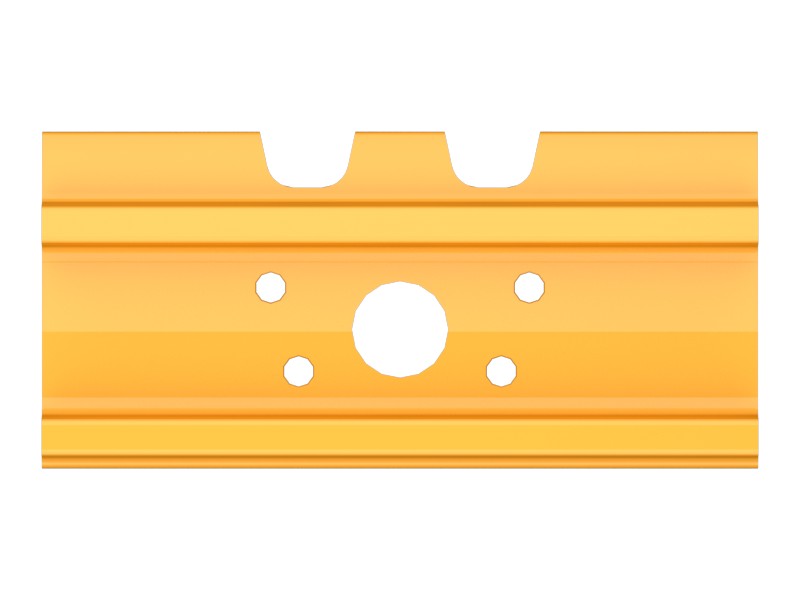

Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
- Double grouser track shoes have less penetration and traction than single grouser track shoes but better steering ability. Double grouser track shoes are standard on track-type loaders and excavators because they have lower turning resistance and better maneuverability.
- Center punched track shoes have an opening between the bolts that allows packed material to be released.
- Trapezoidal track shoes have a trapezoidal opening between the bolts that allows packed material to be released.
Specifications
| Undercarriage System | HD |
|---|---|
| Track Shoe Type | Double Grouser, Trapezoidal |
| Track Shoe Width | 650 mm (25.6 in) |
| Main Bolt Thread | None |
| Hole Type | Round |
| Track Bolt Thread | M27 |
| Abrasion Resistant Material | 0 ARM |
| Track Reinforcement System | None |
| Connector Type | Regular |
| Number of Grousers | Double |
| Shear | No |
| Offset | None |
| Material | Boron Steel |
| Track Shoe Bolt Hole Spacing B | 184.15 mm |
| Bolt Hole Diameter | 28 mm (1.102 in) |
| Track Shoe Section 1E Specification | 1E1184 |
| Plate Thickness | 20.5 mm (0.807 in) |
| Track Shoe Bolt Hole Spacing C | 234.95 mm |
| Track Shoe Bolt Hole Spacing A | 76.2 mm |
Compatible Equipment
- Excavators: 345C L, 365C, 365B, 374F L, 345C, 365C L, 365B L, 374D L, 374F
