Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
- Double grouser track shoes have less penetration and traction than single grouser track shoes but better steering ability. Double grouser track shoes are standard on track-type loaders and excavators because they have lower turning resistance and better maneuverability.
- Center punched track shoes have an opening between the bolts that allows packed material to be released.

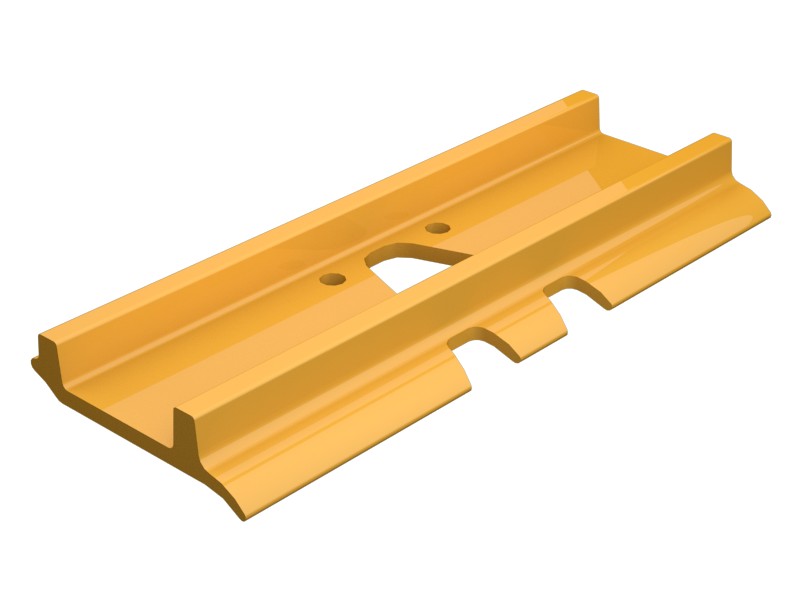

- Trapezoidal track shoes have a trapezoidal opening between the bolts that allows packed material to be released.
Specifications
| Track Shoe Bolt Hole Spacing A | 69 mm |
|---|---|
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Plate Thickness | 13 mm (0.512 in) |
| Track Shoe Section 1E Specification | 1E2774 |
| Track Shoe Bolt Hole Spacing C | 155.57 mm |
| Track Shoe Bolt Hole Spacing B | 119.57 mm |
| Track Shoe Type | Double Grouser, Trapezoidal |
| Track Shoe Width | 600 mm (23.6 in) |
| Undercarriage System | HD |
| Material | Boron Steel |
| Main Bolt Thread | None |
| Shear | No |
| Track Bolt Thread | M20 |
| Track Reinforcement System | None |
| Number of Grousers | Double |
| Abrasion Resistant Material | 0 ARM |
| Connector Type | Regular |
| Hole Type | Trapezoidal |
| Offset | None |
Compatible Equipment
- Excavators: 320D L, 320C, 324D L, 320D2 L, 320D FM, 320D2 GC, 323D L, 320B, 323, 323D2 L, 320, 320 GC, 324D, 326D L, 326D2 L, 320D2, 320D, 326D2
