443-6360 Link Pin 52 MM x 153 MM (2.05 IN x 6.02 IN)
Link Pin
Showing 353–368 of 520 results
-
-
445-5660 Link Pin
Specifications Pin Length 335 mm (13.189 in) Diameter 65 mm (2.559 in) Cross Hole No Pin Type Ring Grooves Material Carbon Steel Plating Zinc Plated Pin Diameter 65 mm (2.56 in) Length 335 mm (13.19 in) Removal Aid/Feature No Puller Hole Compatible Equipment Excavators: 416F2
-
-

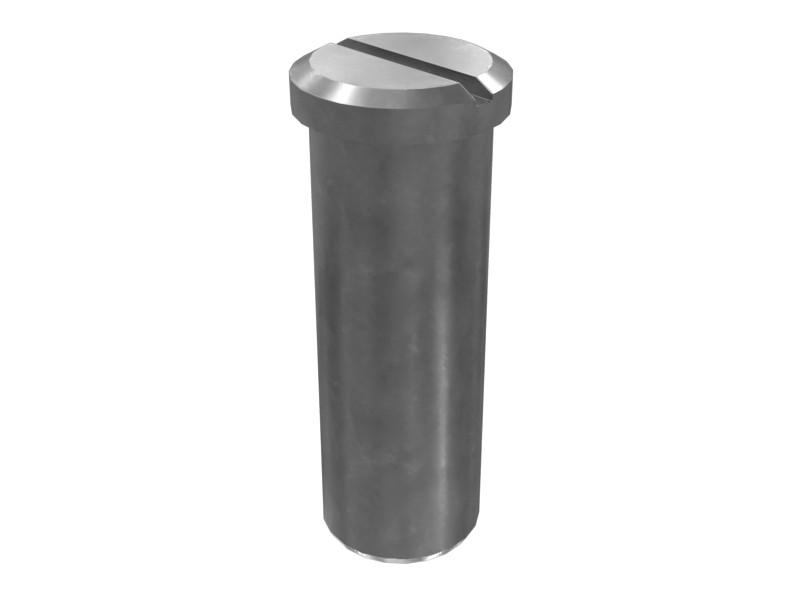

448-2945 Link Pin 95 MM x 222 MM (3.74 IN x 8.74 IN)
Specifications Internal Grease Passage Hole No Outside Diameter 80 mm (3.15 in) Effective Length 222 mm (8.74 in) Puller Thread No Overall Length 242 mm (9.528 in) Diameter 80 mm (3.15 in) Pin Type Headed Pin Material Carbon Steel Plating No Plating Pin Diameter 95 mm (3.74 in) Length 222 mm (8.74 in) Removal Aid/Feature…
-

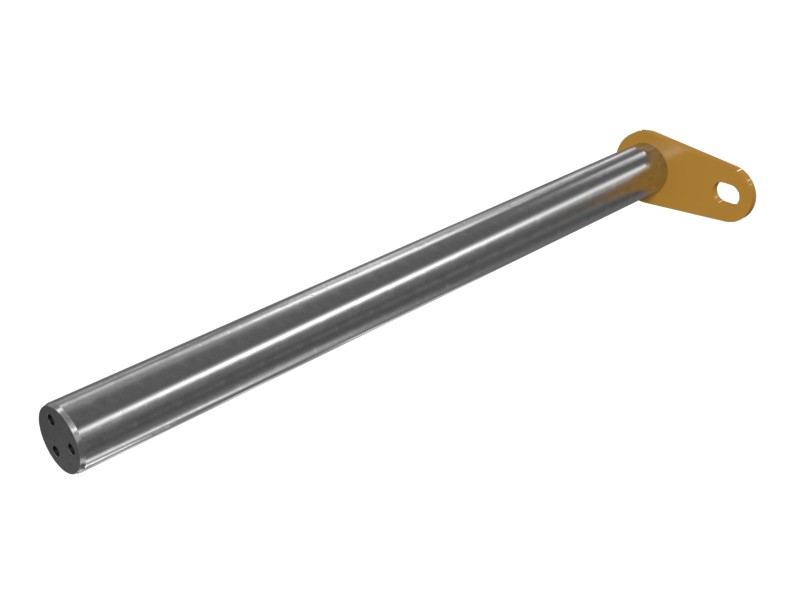

454-8219 Link Pin
Specifications Outside Diameter 140 mm (5.512 in) Internal Grease Passage Hole No Puller Thread Yes Effective Length 1818 mm (71.575 in) Pin Type Flag Pin Material Steel Plating No Plating Pin Diameter 140 mm (5.51 in) Length 1808 mm (71.18 in) Removal Aid/Feature Puller Hole Grease Passage None Compatible Equipment Excavators: 6020B
-

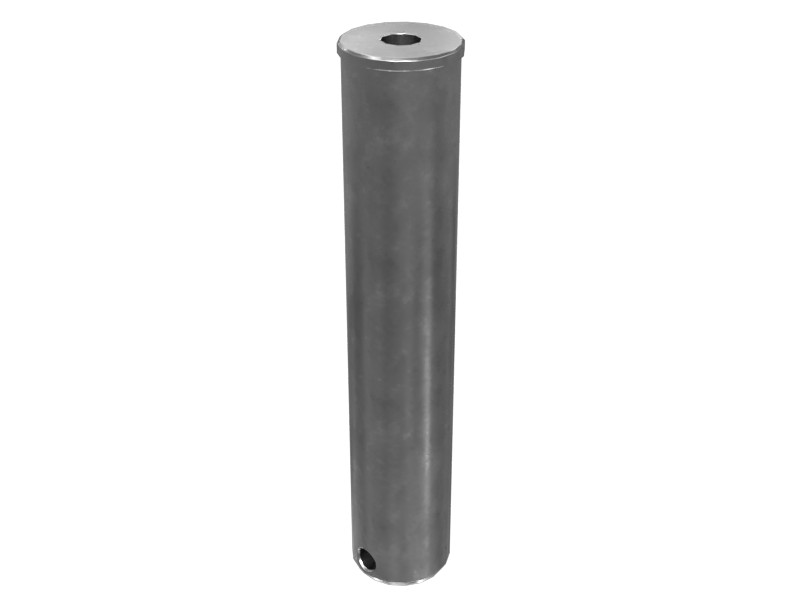

458-0543 Link Pin
Specifications Overall Length 379.5 mm (14.941 in) Diameter 69.85 mm (2.75 in) Puller Thread Yes Effective Length 356 mm (14.016 in) Internal Grease Passage Hole Yes Outside Diameter 69.85 mm (2.75 in) Material Steel(1E0360) Pin Type Straight Pin Plating Chrome Pin Diameter 70 mm (2.76 in) Length 373 mm (14.69 in) Removal Aid/Feature No Puller…
-
459-6768 Hydraulic Tube Assembly
Specifications Material Alloy Steel Material Description Steel Length 557 mm (21.93 in) Compatible Equipment Asphalt Pavers: AP655F, AP655F L
-
-
-
466-1709 25.4 mm OD Retaining Pin
Cat® 25.4 mm OD Retaining Pin for Hydraulic Hammers and Accumulators
-
-
473-0239 Link Pin
Specifications Internal Grease Passage Hole No Outside Diameter 0 mm (0 in) Puller Thread No Effective Length 354.5 mm (13.957 in) Internal Groove None Pin Type Flag Pin Plating Zinc Pin Diameter 55 mm (2.17 in) Length 355 mm (13.98 in) Removal Aid/Feature No Puller Hole Compatible Equipment Excavators: 416F2
-

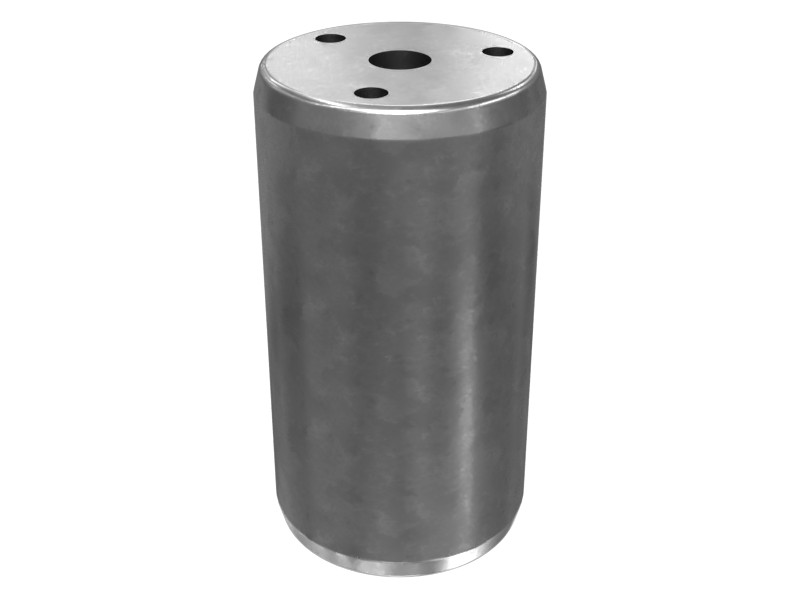

475-3512 Pin
Specifications Outside Diameter 199.83 mm (7.867 in) Internal Grease Passage Hole No Puller Thread Yes Overall Length 373 mm (14.685 in) Diameter 199.83 mm (7.867 in) Material Steel Pin Type Straight Pin Plating No Plating Pin Diameter 200 mm (7.87 in) Length 373 mm (14.69 in) Removal Aid/Feature Puller Hole Internal Groove None Compatible Equipment…
-
-
-
