Linkage Pins

Cat machine linkage pins support rotation between the frame, linkages and work tools. They are used anywhere rotation must occur between two structures. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of…

Cat® Link Pin 3.15" Diameter X 8.46" Long

Cat® Link Pin 4.33" Diameter X 11.22" Long

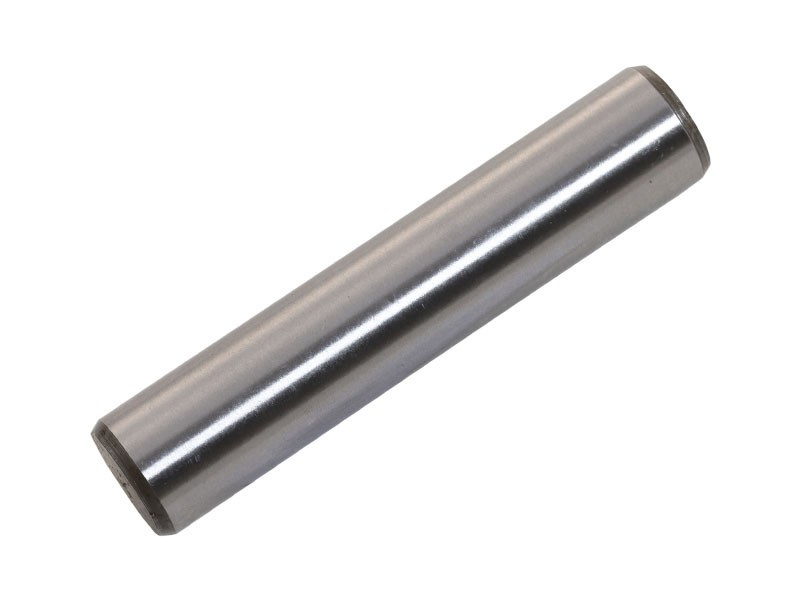

Cat® 12.64 mm OD Multi-Purpose Pin

Cat® 95.2 mm OD Linkage Pin for Bucket Work Tool Controls

Cat® Link Pin 2.76" Diameter X 7.24" Long

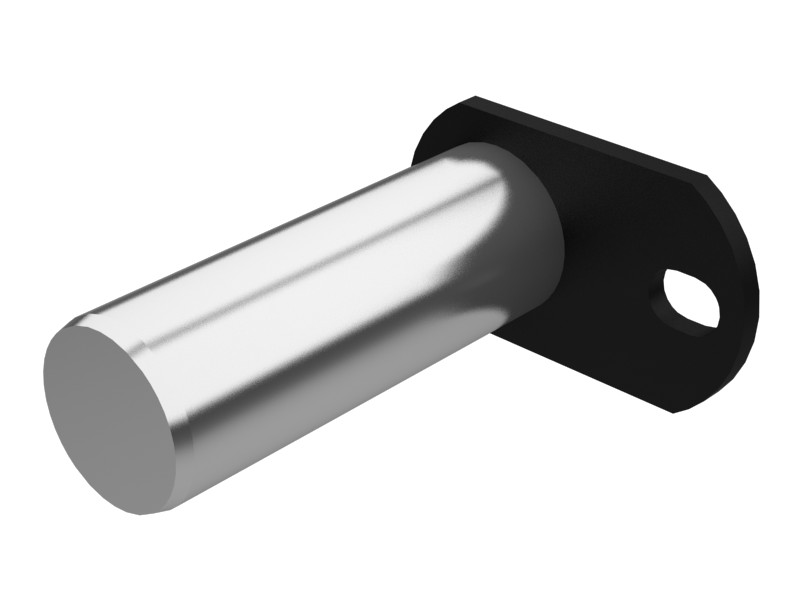

Solid Pin

Specifications Internal Grease Passage Hole Yes Outside Diameter 59.95 mm (2.36 in) Puller Thread Yes Effective Length 210 mm (8.268 in) Material — Pin Type Flag Pin Plating No Plating Pin Diameter 60 mm (2.36 in) Length 211 mm (8.31 in) Removal Aid/Feature Puller Hole Internal Groove Greased through pin Compatible Equipment Dozers: D6R, D6R…
