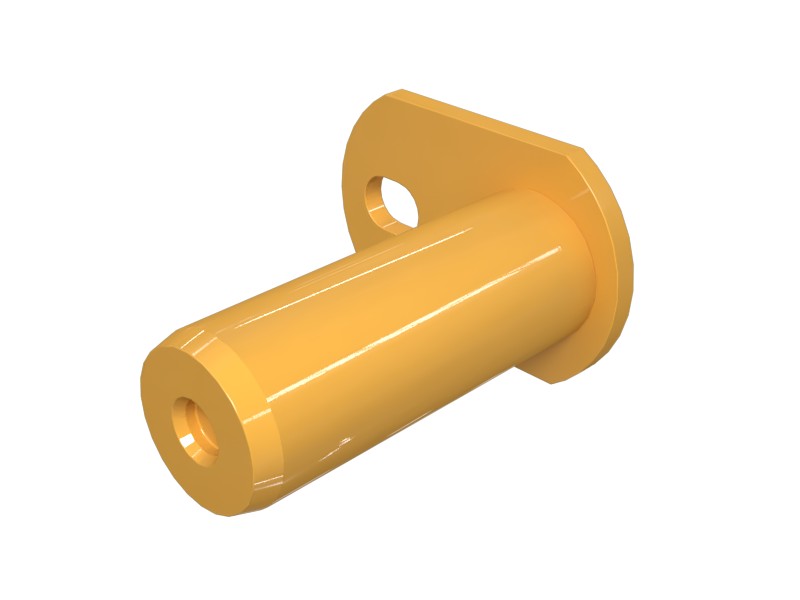

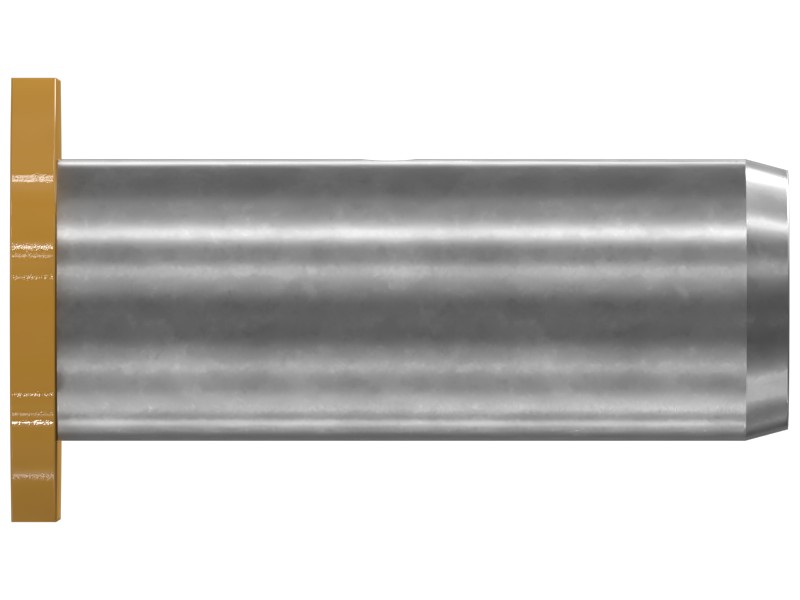

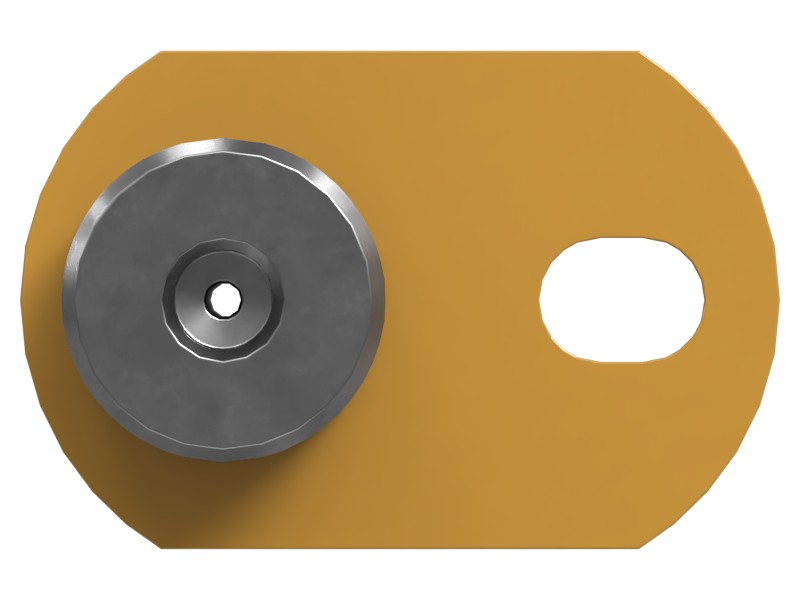

478-5991 Tilt Lever Pin
Cat® Rocker Arm Pin with 76.175 mm Diameter
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The rocker arm linkage pin is the component that allows loader equipment, such as a bucket or forks, to tilt. It serves as the connection point between the loader arm and the equipment, allowing controlled movement and positioning. It acts as a pivot point so that the implement can rotate around it. This enables the loader to dump or dig material, adjust the angle of the equipment, or perform various tasks that require controlled tilting motion.
Features
- Designed to withstand heavy loads.
- Ensures stability during operation.
- Withstands regular use and long-term wear.
Applications
The tilt joint pin provides a stable and secure connection between the loader arm and the equipment, enabling efficient and controlled rocker arm movement. Widely used on Cat 950, 950L, 950M, 962, 962L, 962M, 966, 966L, 966M, 972, 972L, 972M and 980L Wheel Loaders.
Specifications
| Diameter | 76.18 mm (3 in) |
|---|---|
| Outside Diameter | 76.17 mm (2.999 in) |
| Internal Grease Passage Hole | Yes |
| Effective Length | 198 mm (7.795 in) |
| Puller Thread | No |
| Pin Type | Flag Pin |
| Material | Alloy Steel |
| Plating | Hard Chrome Plated |
| Pin Diameter | 76 mm (2.99 in) |
| Length | 198 mm (7.8 in) |
| Weight | 8.55 kg (18.84 lb) |
| Removal Aid/Feature | Without Puller Hole |
| Remarks | Full Pin Lubrication |
Compatible Equipment
- Track Loaders: 972
- Wheel Loaders: 966M, 972M, 966 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
