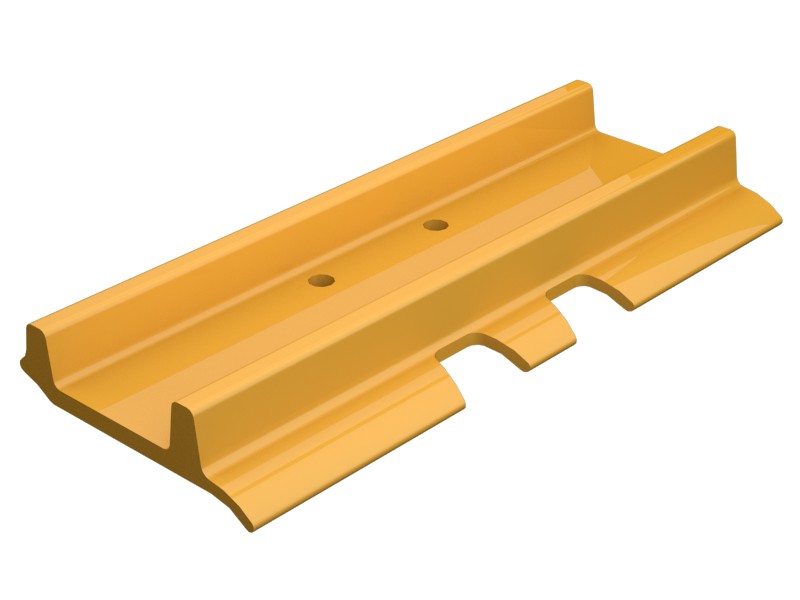

8E-8812 600 mm Wide Double Grouser Track Shoe
Track Shoe (Double Grouser)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Track shoes provide flotation and traction for the machine while protecting the link group.
Features
Double grouser track shoes have less penetration and traction than single grouser track shoes but better steering ability. Double grouser track shoes are standard on track-type loaders and excavators because they have lower turning resistance and better maneuverability.
Specifications
| Track Shoe Bolt Hole Spacing C | 179 mm |
|---|---|
| Track Shoe Bolt Hole Spacing B | 129 mm |
| Track Shoe Bolt Hole Spacing A | 72 mm |
| Plate Thickness | 14.5 mm (0.571 in) |
| Track Shoe Section 1E Specification | 1E1792 |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Track Shoe Type | Double Grouser |
| Track Shoe Width | 600 mm (23.6 in) |
| Abrasion Resistant Material | 0 ARM |
| Track Bolt Thread | M20 |
| Hole Type | None |
| Offset | None |
| Connector Type | Regular |
| Main Bolt Thread | None |
| Track Reinforcement System | None |
| Number of Grousers | Double |
| Shear | No |
| Undercarriage System | HD |
| Material | Boron Steel |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 329E L, 329D L, 325D L, 330D2, 330D2 L, 325D, 325B L, 325C, 329D2, 329D2 L, 329D
