Description

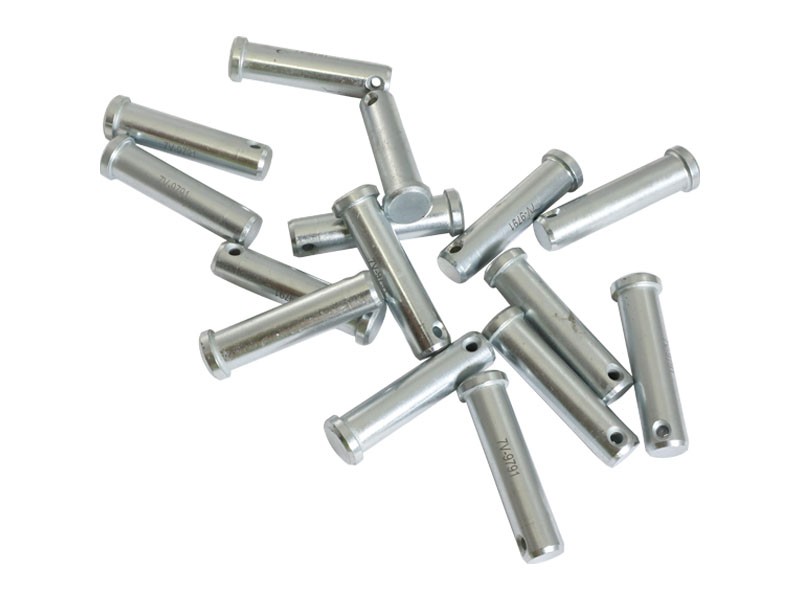

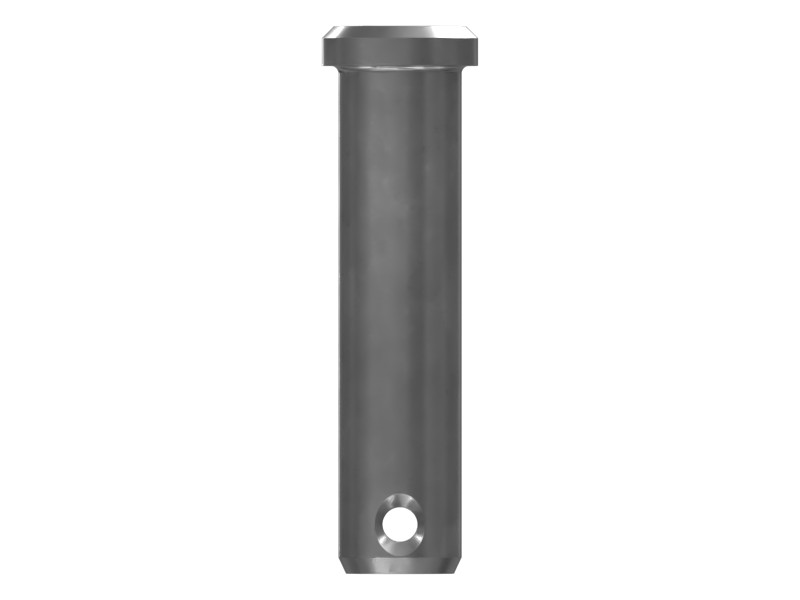

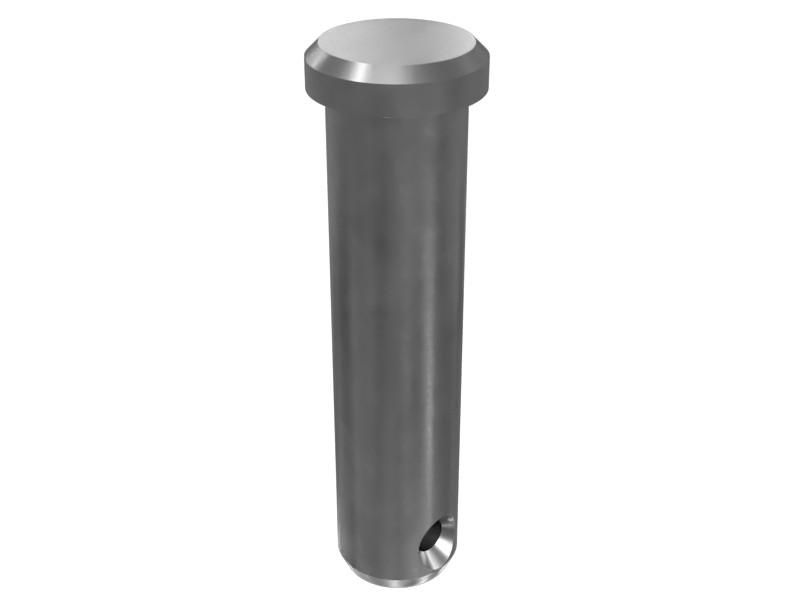

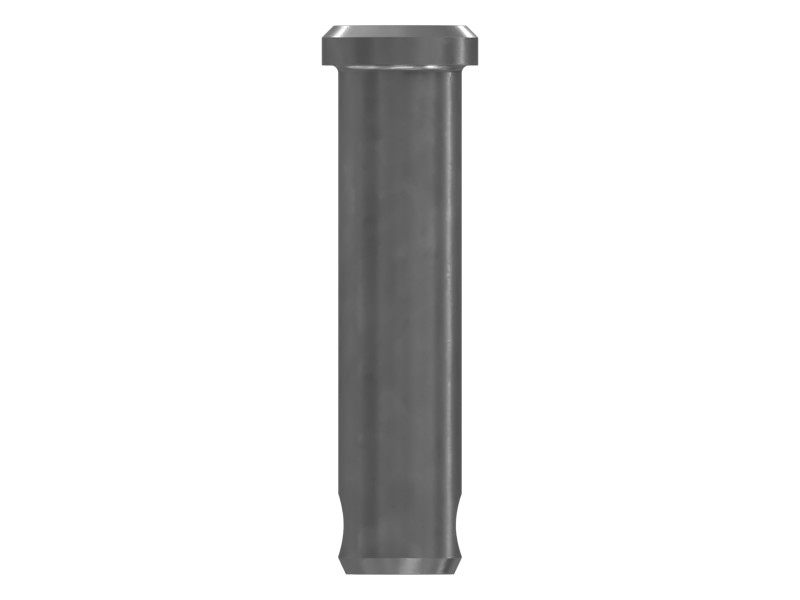

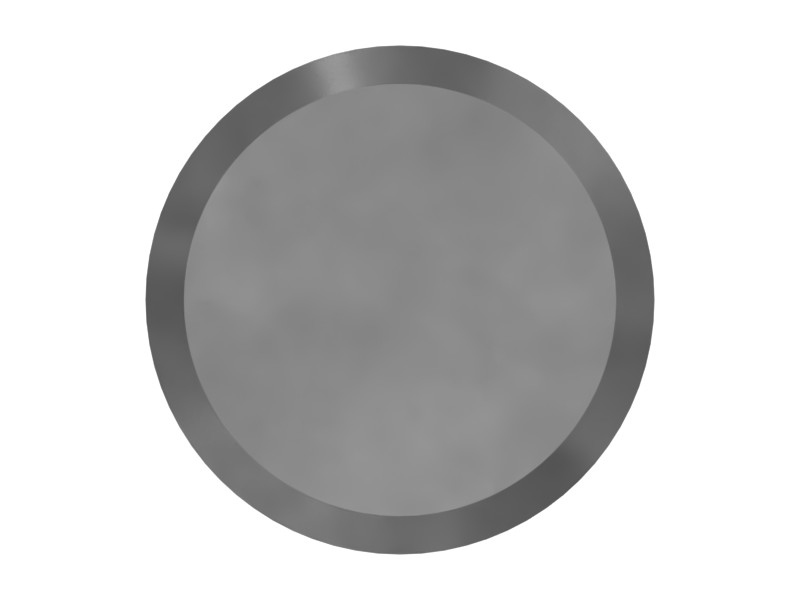

A clevis pin is a solid cylindrical pin with a flat cylindrical head on one end and a chamfer on the opposite end. Cross-hole clevis pins are secured with cotter pins, and grooved pins are secured with retaining rings.
Features
- Pin Type: Cross Hole
- Material: Steel
- Pin Diameter: 12.55 mm (0.494 in)
- Head Diameter: 15.9 mm (0.625 in)
- Pin Length: 51.8 mm (2.039 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pin Length | 51.8 mm (2.039 in) |
|---|---|
| Material | Alloy Zinc |
| Pin Type | Cross Hole |
| Material Description | Steel |
| Pin Diameter | 12.55 mm (0.494 in) |
| Head Diameter | 15.9 mm (0.625 in) |
| Length | 51.8 mm (2.039 in) |
Compatible Equipment
- Track Loaders: 824G, 826G, 982, 972
- Cold Planers: PM620, PM622
- Compactors: CB-34B, CB-24B, CC-34B, CB2.7, CB2.9, CB2.5, CB-36B, CB2.5 GC, CC2.7 GC, CB2.7 GC
- Dozers: D10R
- Excavators: 637K, 621H, 621K
- Wheel Loaders: 966M, 980M, 972M, 982M
- Off-Highway Trucks: 773F, 777D
Additional information
| Machine Model | 621H, 621K, 637K, 773F, 777D, 824G, 826G, 966M, 972, 972M, 980M, 982, 982M, CB-24B, CB-34B, CB-36B, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC, D10R, PM620, PM622 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
