Description

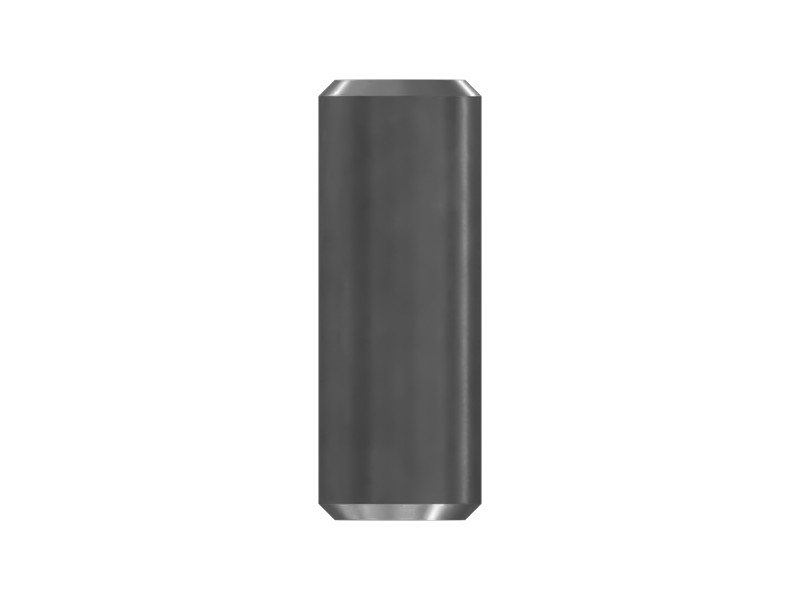

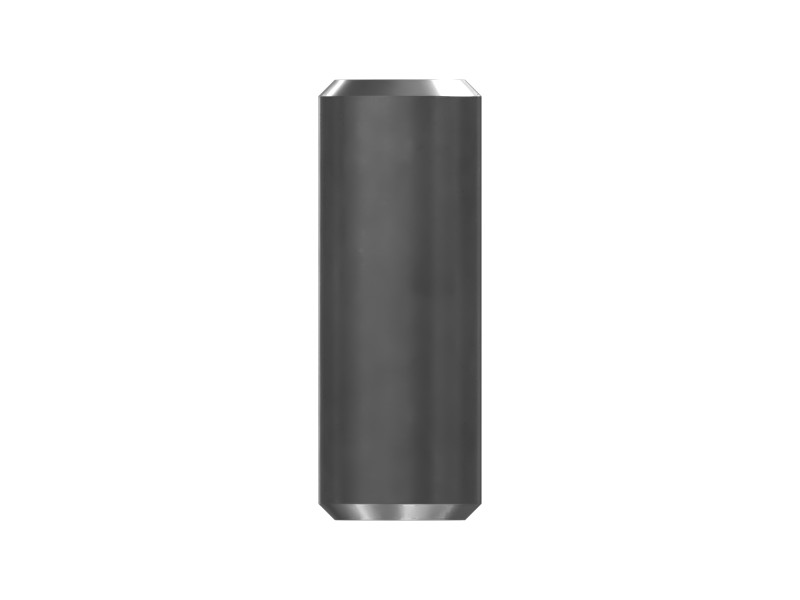

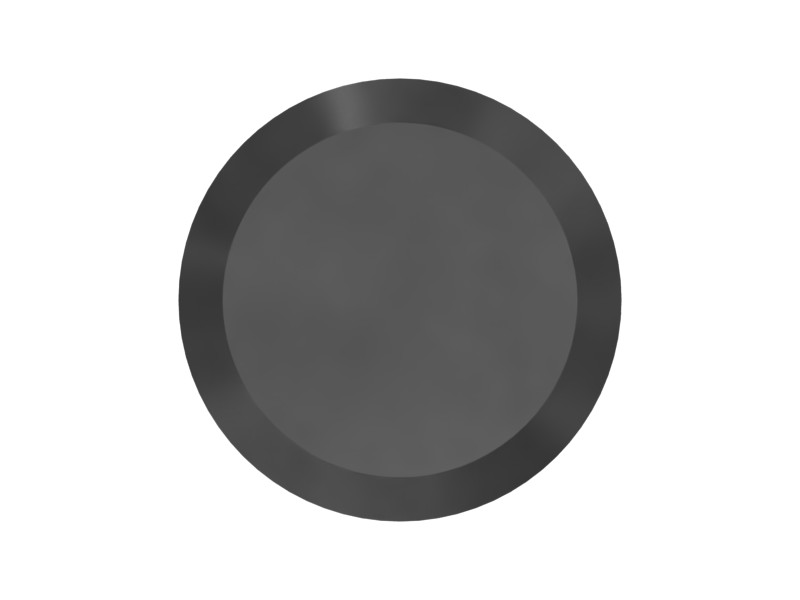

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Outside Diameter | 10.01 mm (0.394 in) |
|---|---|
| Pin Length | 27 mm (1.063 in) |
| Pin Type | Solid |
| Pin Diameter | 10 mm (0.39 in) |
| Overall Length | 25 mm (0.98 in) |
| Remarks | End Type: Chamfer, Chamfer |
Compatible Equipment
- Wheel Excavators: M315, M315GC
- Excavators: 313, 313 GC, 316 GC, 314C, 325B L, 313D2 GC, 312E L, 311C, 313D, 320E, 311B, 312D2 GC, 320D L, 320D2 L, 312E, 312D, 326, 311D LRR, 320, 312D L, 325D L, 313D2, 329D L, 312D2 L, 330D2 L, 320D2 GC, 329E L, 315F LCR, 312C, 314D CR, 314D LCR, 312D2, 312C L, 313F L, 313F LGC, 323D2 L, 324D L, 323 GX, 323, 315 GC, 312F, 313 GX, 316 GX, 329E, 325C, 315, 313D2-GC, 326D2 L, 320D2, 326D2, 320D
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315, 315 GC, 315F LCR, 316 GC, 316 GX, 320, 320D, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D2 L, 324D L, 325B L, 325C, 325D L, 326, 326D2, 326D2 L, 329D L, 329E, 329E L, 330D2 L, M314, M315, M315GC |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
