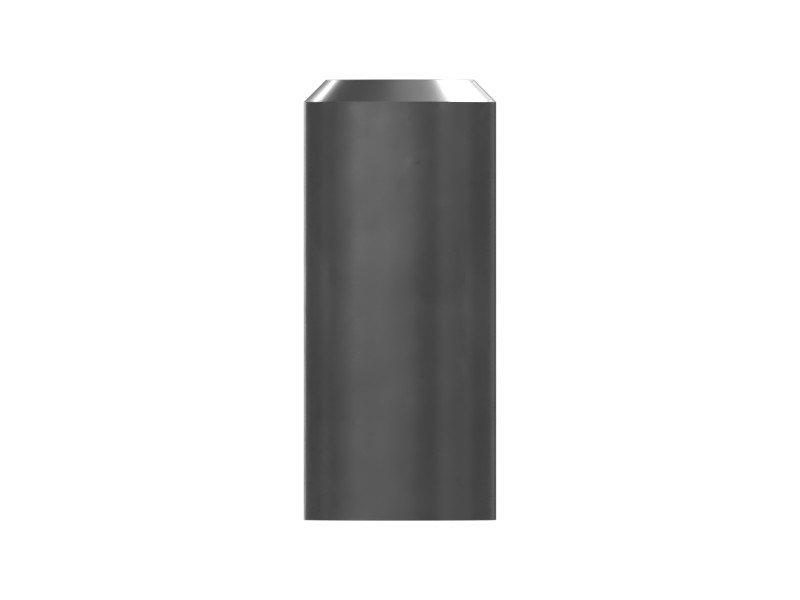

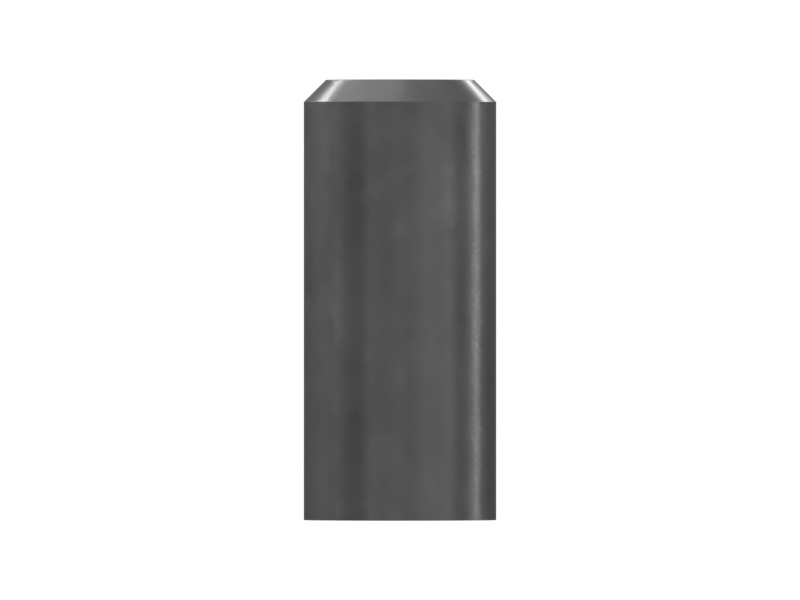

087-5974 13.14 mm OD Dowel
Cat® hardened steel solid pin chamfered on one end, for bucket linkage.
Description
A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Outside Diameter | 13.14 mm (0.517 in) |
|---|---|
| Pin Length | 30 mm (1.181 in) |
| Pin Type | Solid |
| Pin Diameter | 13 mm (0.52 in) |
| Overall Length | 30 mm (1.18 in) |
| Material | 0 |
| Remarks | End Type: Chamfer, Flat |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330D L, 324D L, 320D2 L, 324D, 329D L, 335F LCR, 323D2 L, 325D L, 329E L, 323, 325D, 330C L, 323D2, 330D2 L, 325C, 326GC, 323D L, 330 L, 336E L, 325B L, 320D L, 320D RR, 330C, 326, 330 GC, 336D L, 320, 330D2, 326D L, 330GC, 320D2 GC, 325B, 330B, 328D LCR, 325C L, 329E, 320 GC, 325, 335, 333 GC, 326 GC, 320D, 330, 320D2, 326D2 L, 326D2, 329D2 L, 329D2, 329D
Additional information
| Machine Model | 320, 320 GC, 320D, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 323, 323D L, 323D2, 323D2 L, 324D, 324D L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330 L, 330B, 330C, 330C L, 330D L, 330D2, 330D2 L, 330GC, 333 GC, 335, 335F LCR, 336D L, 336E L, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
