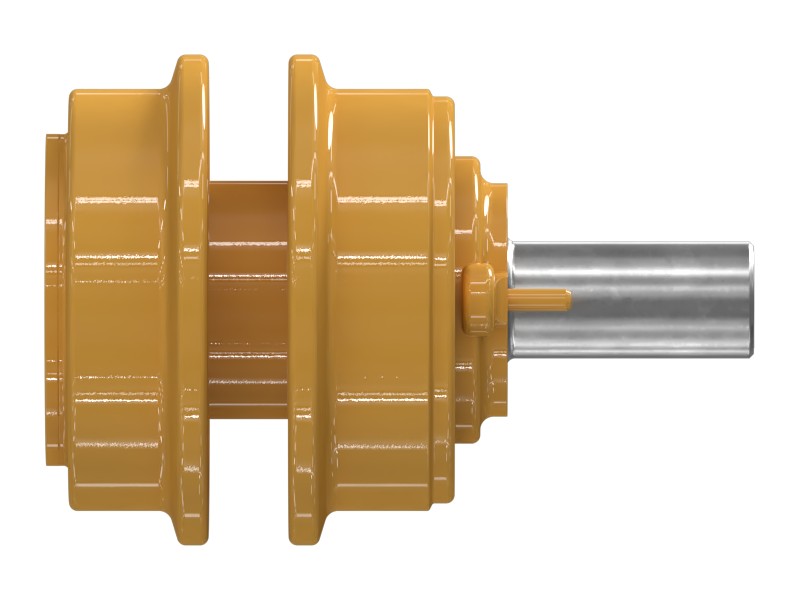

6S-3609 Carrier Roller Assembly
Cat® Single Flange Carrier Roller for Use in Track Roller Frames
Description
Carrier rollers support and guide the machine on the track and provide track tension support.
Specifications
| Tread Diameter | 149 mm (5.87 in) |
|---|---|
| Shaft Diameter | 41.3 mm (2 in) |
| Flange Diameter | 174 mm (6.85 in) |
| Chassis Width | 41.3 mm |
| Height | 41.3 mm (1.6 in) |
| Diameter | 1.6 in |
| Length | 41.3 mm (1.626 in) |
| Undercarriage System | HD |
| Mounting Type | Cantilever |
| Material | Sealants / Adhesives Adhesive |
| Application | Standard Application |
| Shaft Mounting Length | 63.59 mm (2.504 in) |
| Shaft Outside Diameter | 52.32 mm (2.06 in) |
| Tread Outside Diameter | 149.4 mm (5.882 in) |
| Flange Outside Diameter | 173.7 mm (6.839 in) |
| Inside Spacing | 28 mm (1.102 in) |
| Outside Spacing | 135.5 mm (5.335 in) |
| UC System – Designed For | Heavy Duty |
Compatible Equipment
- Compact Track Loaders: 299D3
- Dozers: D3K2 LGP, D4G, D3G, D1
- Asphalt Pavers: AP655F L, AP655F
- Skid Steer Loaders: 299D3 XE
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Compact Track Loaders, Skid Steer Loaders, Dozers, Asphalt Pavers |
| Part Source | Genuine OEM |
