Description

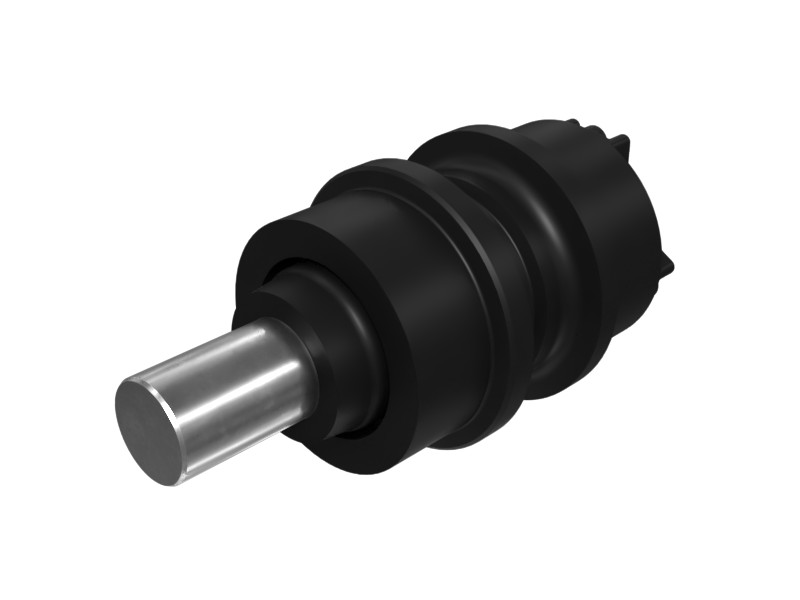

Carrier rollers support and guide the machine on the track and provide track tension support.
Specifications
| Application | Oil Resistance |
|---|---|
| Undercarriage System | HD |
| UC System – Designed For | General Duty |
| Mounting Type | Cantilever |
| Flange Diameter | 140 mm (5.51 in) |
| Width | 127 mm (4.98 in) |
| Tread Outside Diameter | 120 mm (4.724 in) |
| Shaft Mounting Length | 69.5 mm (2.736 in) |
| Flange Outside Diameter | 140 mm (5.512 in) |
| Shaft Outside Diameter | 47 mm (1.85 in) |
| Inside Spacing | 49 mm (1.929 in) |
| Tread Diameter | 120 mm (4.72 in) |
| Outside Spacing | 172 mm (6.772 in) |
Compatible Equipment
- Excavators: 326 GC, 320 GC, 320 GX, 323 GX, 333 GC, 320D3, 320, 320D3 GC
