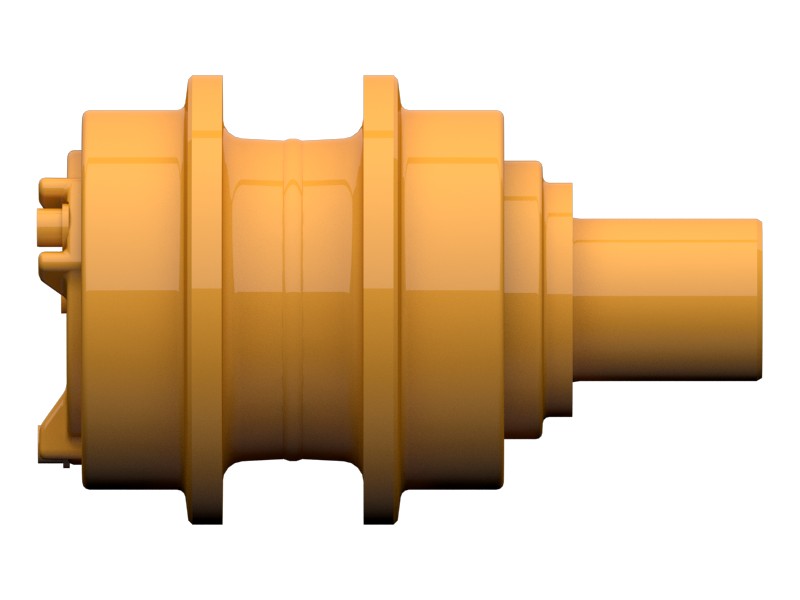

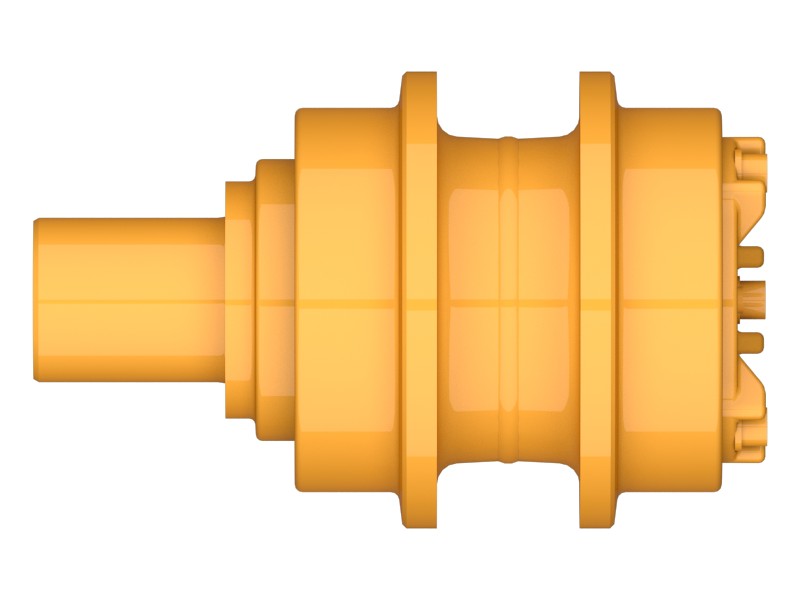

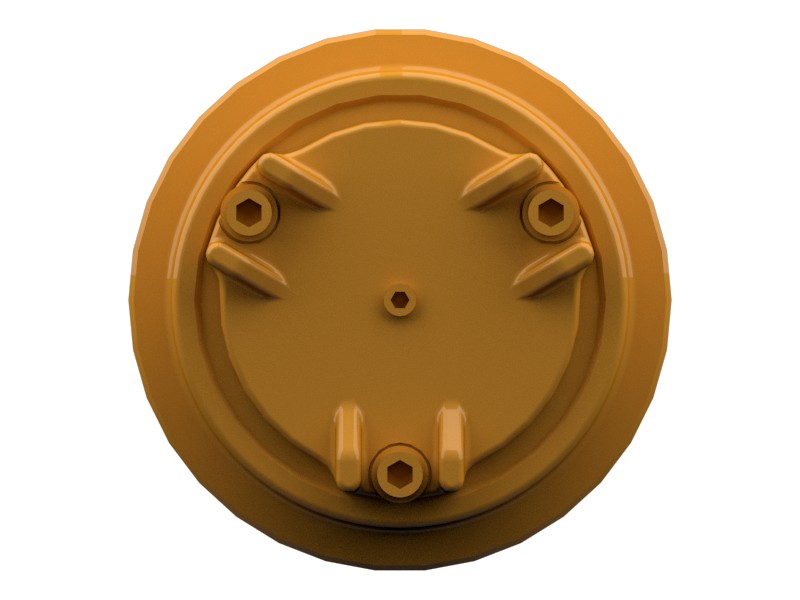

300-4610 Carrier Roller Assembly
Cat® Single Flange Carrier Roller for Use in Track Roller Frames
Description
Carrier rollers support and guide the machine on the track and provide track tension support.
Specifications
| Undercarriage System | HD |
|---|---|
| Mounting Type | Cantilever |
| Application | Standard Application |
| Diameter | 214 mm |
| Flange Diameter | 214 mm (8.4 in) |
| Flange Type | Single Flange |
| Bolt Size | M12 mm (0.4724 in) |
| Shaft Diameter | 76.9 mm |
| Tread Diameter | 180 mm (7.1 in) |
| Chassis Width | 293 mm |
| Shaft Outside Diameter | 77.92 mm (3.068 in) |
| Flange Outside Diameter | 214 mm (8.425 in) |
| Tread Outside Diameter | 180 mm (7.087 in) |
| Inside Spacing | 67 mm (2.638 in) |
| Shaft Mounting Length | 90 mm (3.543 in) |
| Outside Spacing | 200 mm (7.874 in) |
| UC System – Designed For | Heavy Duty |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 349F L, 330D L, 352, 350, 352F, 355, 340, 336, 349, 336F, 349E L, 345D L, 345C L, 349E L VG, 349D L, 365C L, 349E, 345C, 345D, 330C, 345B, 349D2, 349D, 349D2 L
