Description

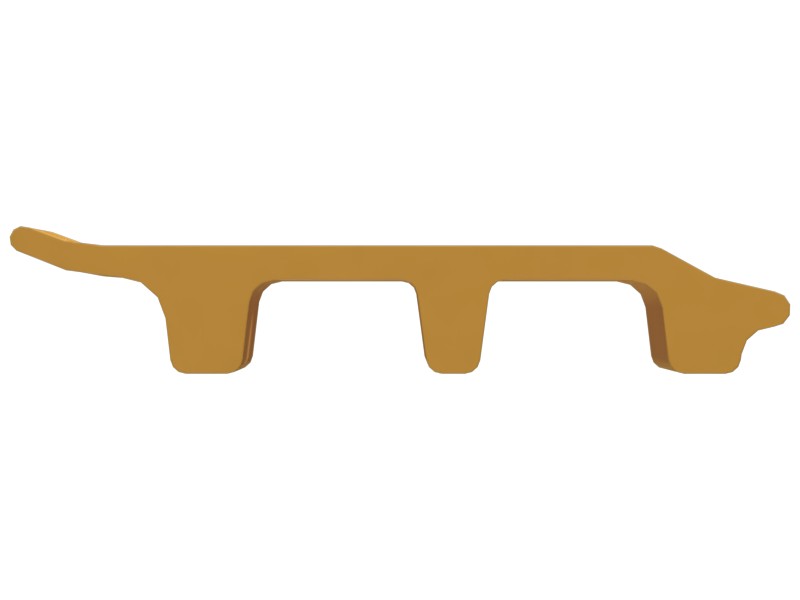

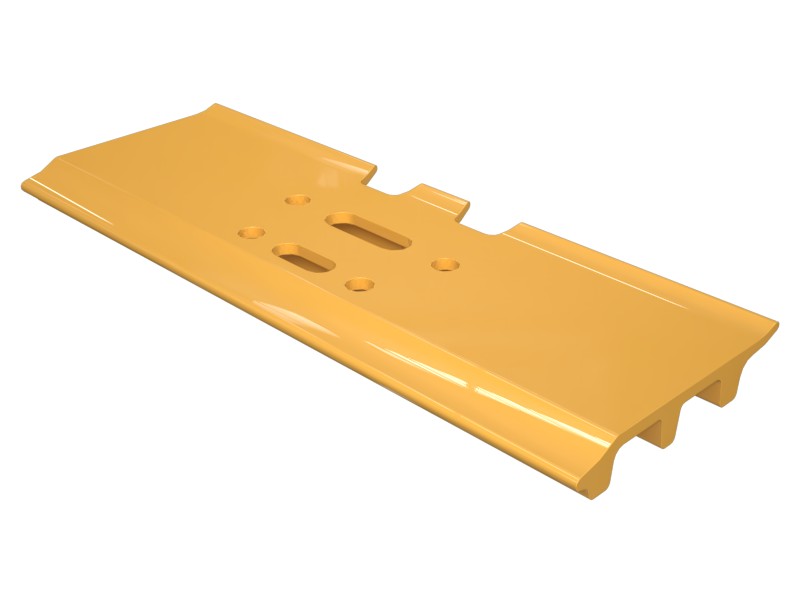

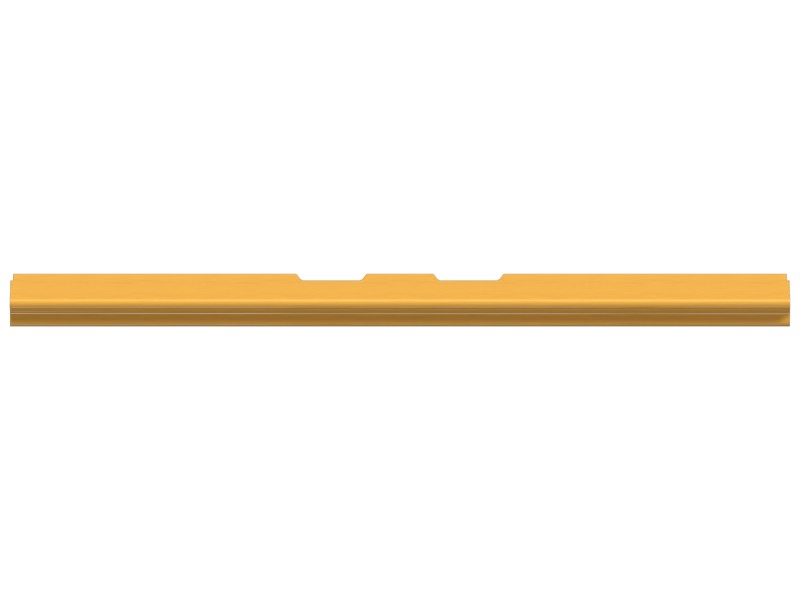

The triple grouser track shoe (part number 610-4687) provides flotation and traction for the machine while protecting the track link group.
Features
- Slotted Triple Grouser Track Shoe
- Track Pitch: 216 mm (8.5 in)
- Track Shoe Width: 700 mm (27.6 in)
- Triple grouser track shoes provide less penetration and traction than single grouser track shoes, but offer better turning ability. Triple grouser track shoes are standard on track-type loaders and excavators because these machines require less turning resistance and greater maneuverability.

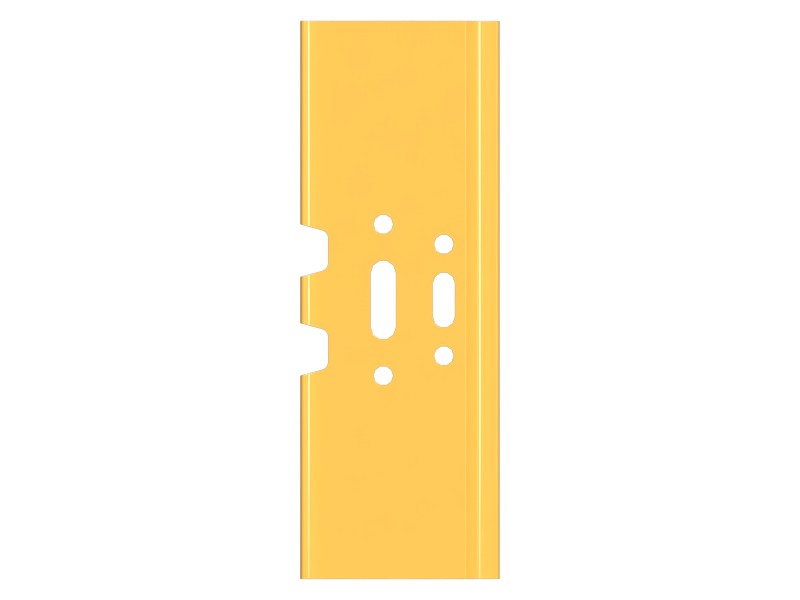

- Slotted track shoes have cross slot cutouts between the bolts that release packed material that can be squeezed out.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Boron Steel |
|---|---|
| Undercarriage System | HD |
| Track Bolt Thread | M22 |
| Abrasion Resistant Material | 0 ARM |
| Number of Grousers | Triple |
| Track Reinforcement System | None |
| Shear | No |
| Offset | None |
| Main Bolt Thread | 0.75 |
| Hole Type | Slotted |
| Connector Type | Regular |
| Track Shoe Bolt Hole Spacing A | 76 mm |
| Track Shoe Section 1E Specification | 1E1744 |
| Plate Thickness | 11 mm (0.433 in) |
| Track Shoe Bolt Hole Spacing B | 140 mm |
| Bolt Hole Diameter | 25 mm (0.984 in) |
| Track Shoe Bolt Hole Spacing C | 190 mm |
| Track Shoe Type | Triple Grouser |
| Track Shoe Width | 700 mm (27.6 in) |
Compatible Equipment
- Excavators: 336, 340, 336 GC, 330
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
