Description
The double grouser track shoe (610-4681) provides flotation and traction for the machine while protecting the track link group.
Features
- Slotted Triple Grouser Track Shoe
- Track Pitch: 216 mm (8.5 in)
- Track Shoe Width: 600 mm (23.6 in)

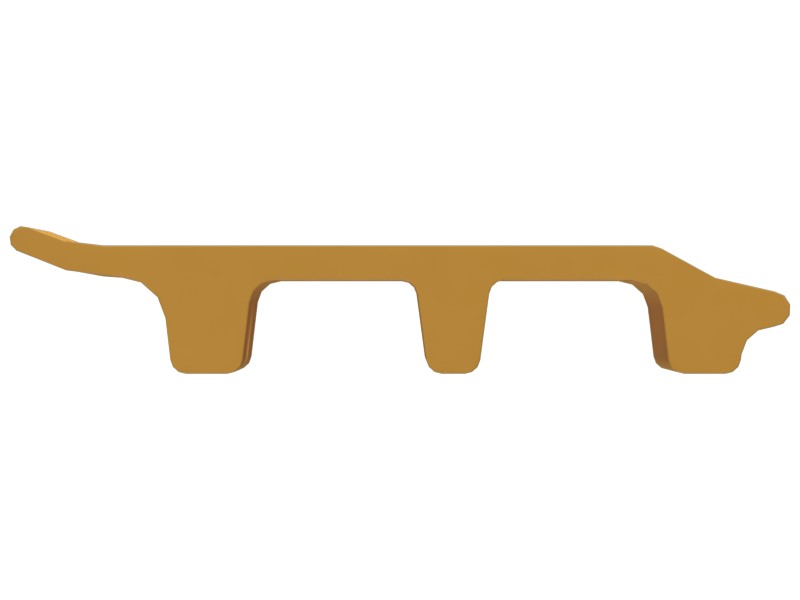

- Triple grouser track shoes provide less penetration and traction than single grouser track shoes, but offer better turning ability. Triple grouser track shoes are standard on track-type loaders and excavators because these machines require less turning resistance and greater maneuverability.

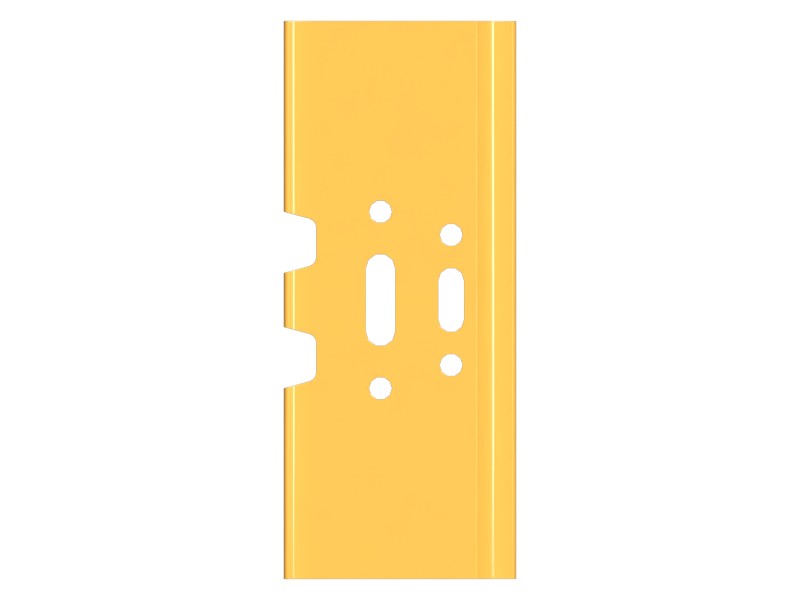

- Slotted track shoes have cross slot cutouts between the bolts that release packed material that can be squeezed out.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Track Shoe Bolt Hole Spacing B | 140 mm |
|---|---|
| Track Shoe Section 1E Specification | 1E1744 |
| Track Shoe Bolt Hole Spacing C | 190 mm |
| Track Shoe Bolt Hole Spacing A | 76 mm |
| Bolt Hole Diameter | 25 mm (0.984 in) |
| Plate Thickness | 11 mm (0.433 in) |
| Offset | None |
| Hole Type | Slotted |
| Connector Type | Regular |
| Shear | No |
| Track Reinforcement System | None |
| Number of Grousers | Triple |
| Abrasion Resistant Material | 0 ARM |
| Track Bolt Thread | M24 |
| Main Bolt Thread | None |
| Undercarriage System | GD |
| Material | Boron Steel |
| Track Shoe Type | Double Grouser |
| Track Shoe Width | 600 mm (23.6 in) |
Compatible Equipment
- Excavators: 336, 340, 336 GC, 330
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
