Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size (Diameter × Pitch) | M8 × 1.25 mm |
|---|---|
| Handle Length | 3.75 mm (0.148 in) |
| Locking Feature | None |
| Coating | Zinc Phosphate + Oil |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 12.9 |
| Bolt Length | 25 mm (0.984 in) |
| Material | Alloy Steel |
| Thread Size | M8 mm (0 in) |

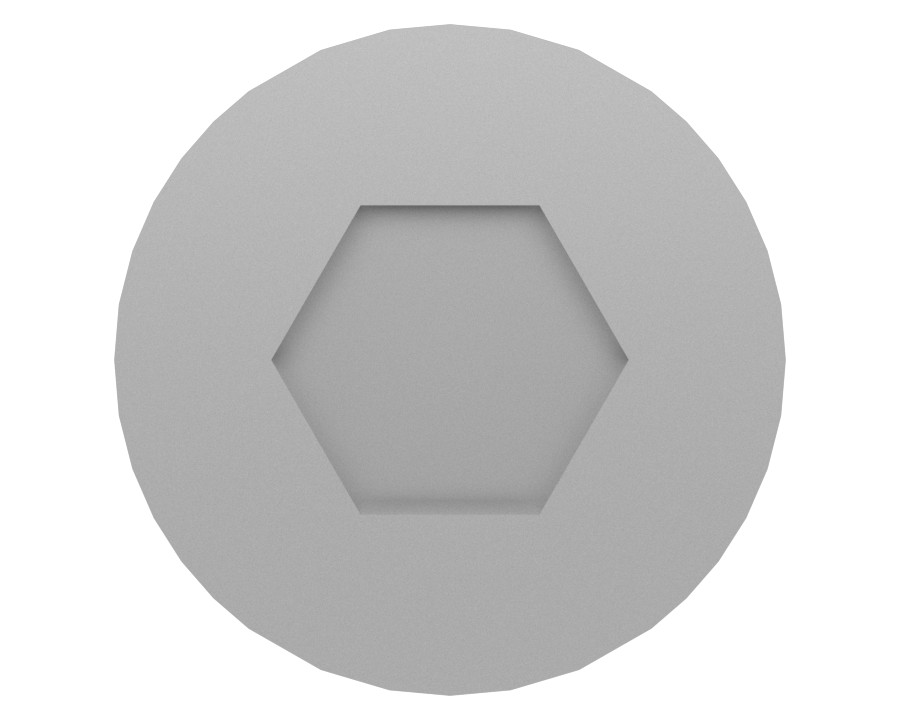

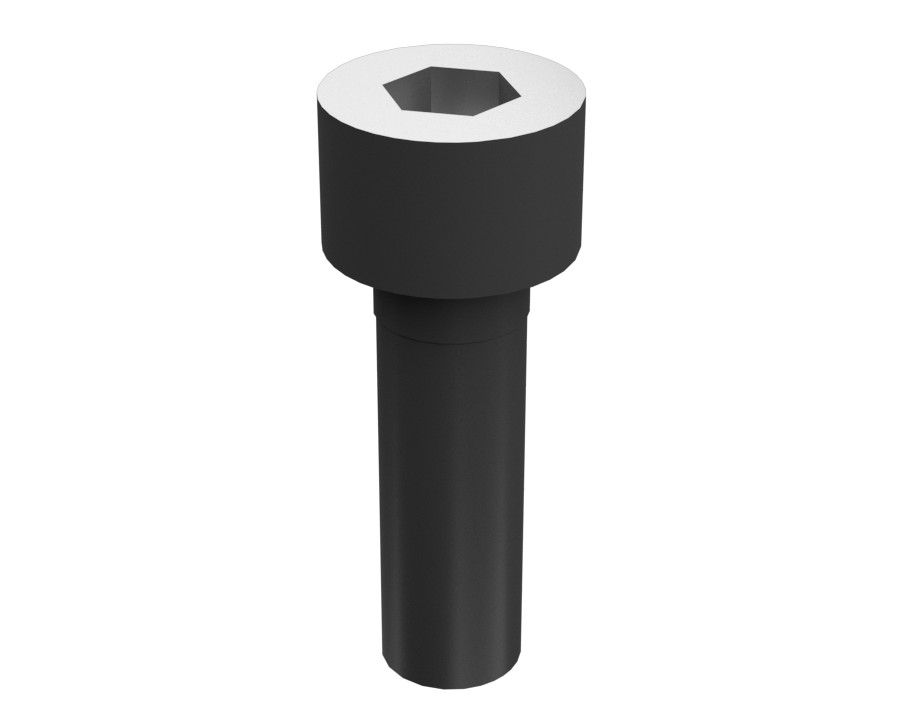

| Bolt Type | Socket Head |
Compatible Equipment
- Generator Sets: 3512E, 3516C, G3516C, 3512B, C4.4, C9, G3516, C7.1, C4.4DE88E0
- Track Loaders: 973K, 995, 963, 953, 994K, 992, 993, 990K, 826G, 834H, 824G, 963D, 953D
- Cold Planers: PL87, PL61, PL83, TH360B, PM-200
- Compactors: CB1.7, CB1.8, CB2.5 GC, CB-64B, CB16, CW-34, CS-56, CB-14, CB-434D, CB-44B, CB-534D, CB-66B, CB2.7, CB2.5, CB2.9, CB-34B, CB-36B, CB-24B, CC-34B, CP54B, CS11, CS54B, CS-563E, CS-583D, CS-54, CB-564D, CC2.7 GC, CB2.7 GC, CB13, CB15, CB10, C-9, CS-533E, CS-54B, CS64B
- Engines: C13, C7, C6.6, C32, C11, C175-16, C12
- Excavators: 320D, 336D2, 303.5E2 CR, 329D, 320D2, 374D L, 349D2 L, 326D2, 326D2 L, 336D, 330, 349D2, 390F L, 390D L, 303, 374F, 349D, 307E, 305C CR, 3126, 329D2 L, 329D2, 306E2, 305, 303C CR, 301.7D, 330D L, 305E2 CR, 374, 349F L, 313 GC, 313, 316 GC, 350MHPU, 352, 320D3 GC, 333, 336D2 L, 312D2 L, 336F L, 329E L, 312C L, 336, 340, 323, 336D2 XE, 312D2, 330 GC, 312C, 330D, 311D LRR, 325D L, 336E L, 323D2 L, 320, 336F LN, 318D2 L, 320 GC, 336F L XE, 329D L, 323GC, 315, 336D L, 320D FM, 349E L, 345C L, 345C, 3516B, 365C, 6015B, 416F2, 365C L, 349E, 390D, 3516E, 352F, 349, 621G, 313D, 330D2, 330C, 320E, 324D L, 315C, 336F, 312D, 320D2 L, 324D, 315F LCR, 313D2, 330C L, 325D, 314D CR, 312D L, 330D2 L, 374F L, 340D L, 390F, 345D, 345D L, 349D L, 3512C, 349E L VG, 325, 315D L, 336E, 314D LCR, 323D L, 311B, 312F, 320D GC, 336 GC, 312E L, 311C, 320D L, 313D2-GC, 340D2 L, 385C, 335, 345 GC, 330GC, 336E H, 301.6, 336E LN, 313D2 GC, 312D2 GC, 318D2, 320D2 GC, 416E, 395, 320 GX, 315 GC, 323 GX, 313 GX, 303CR, 303.5CR, 312 GC, 318D L, 301.8, 313F L, 328D LCR, 355, 323 GC, 326 GC, 326, 350, 329E, 320D RR, 312E, 336E LH, 314C, 6015, 6030, 305 CR, 333 GC, 432, 316 GX, 323D, 621H, 385C L, 335F LCR, 320D3, 6040, 312 GX, 637K, 637G, 3101, 323D2, 621K, 326GC, 385C FS
- Asphalt Pavers: AP655F, AP655F L, AP355F, AP-600D, AP300F
- Skid Steer Loaders: 232D3, 262C, 3126B, 226B3, 232D, 216B3, 226B, 313D2 LGP, 299D3 XE, 236D3, 239D3, 249D3
- Motor Graders: 14, 16M3, 140G, 3606, 120H, 16M, 140K, 16, 316F, 14M, 349 GC, 18, 160K
- Wheel Excavators: M315GC, IT14G, MD6200, M320, M315, MD6310, M322D, M315D2, M315D, M313D, M317D2, MD6250, M320D2
- Dozers: D6N, D7H, D7G, D8R, D8T, D5N, D4E, D7E, D5M, D5H, D7R, D8N, D11, D5K LGP, D8, D5K XL
- Compact Track Loaders: 299D3
- Mini Excavators: 301.5, 307E2, 303.5C, 306, 308E2, 307B, 307, 303.5E, 303.5D, 306.5, 305.5E2, 305E2, 305.5, 307C, 310, 308, 307D, 305.5 GC
- Wheel Loaders: 950, 910, 966H, 950H, 950G, 962G, 938K, 966K, 972H, 988G, 988K, 950 GC, 962L, 972G, 966L, 924GZ, 924HZ, 928G, 988H, 980G, 924K, 966F, 950L, 928HZ, 972L, 906K, RM500B, R1700K, R1700 XE
- Off-Highway Trucks: 797F, 725C2, 725, 794 AC, 740, 730, 735, 740B, 798 AC, 793F, 796 AC, 793
