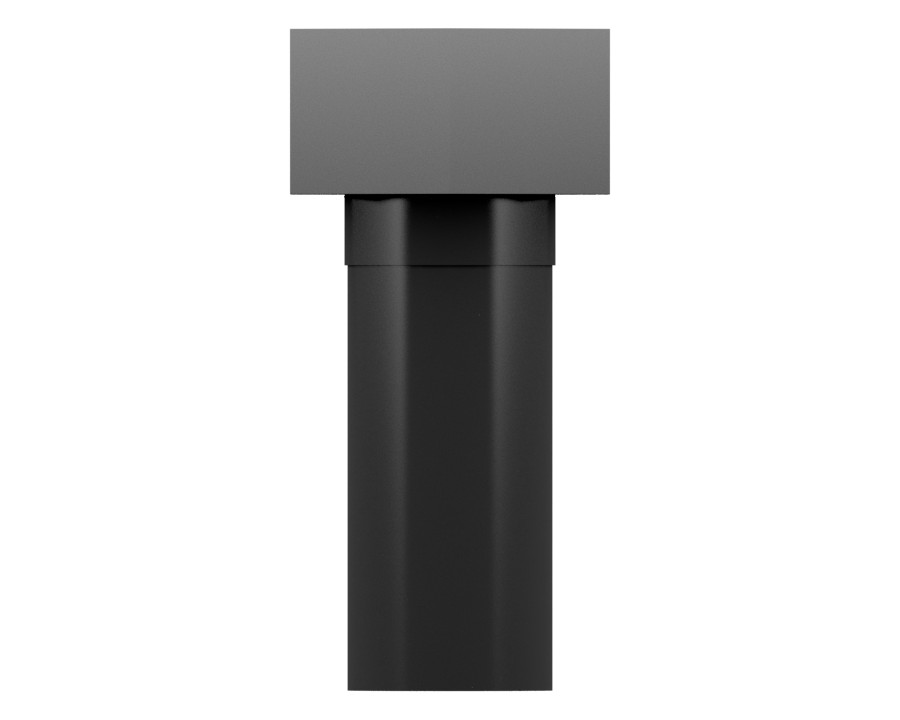

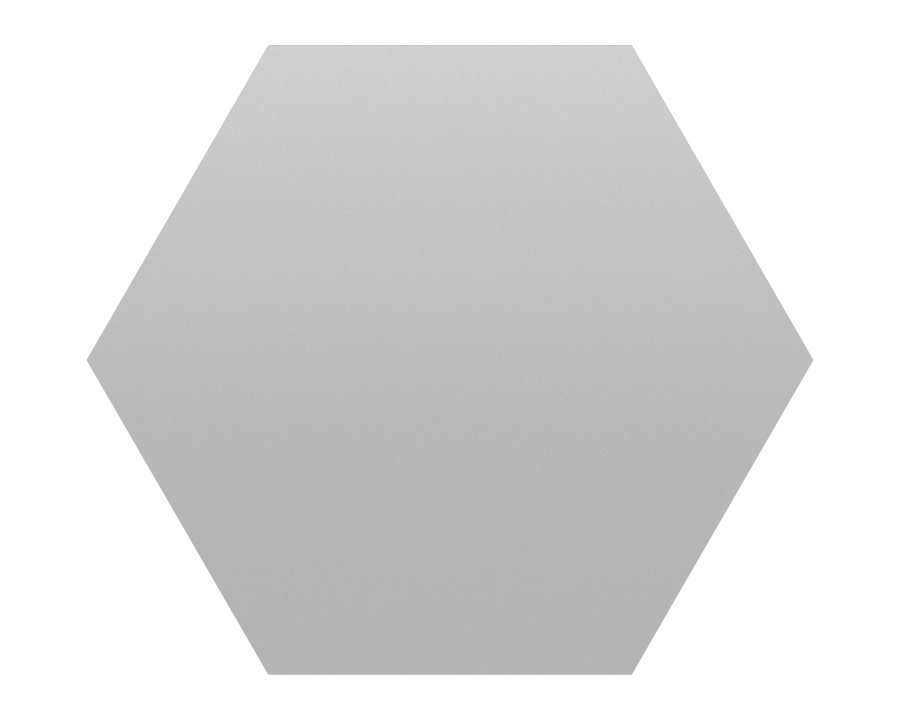

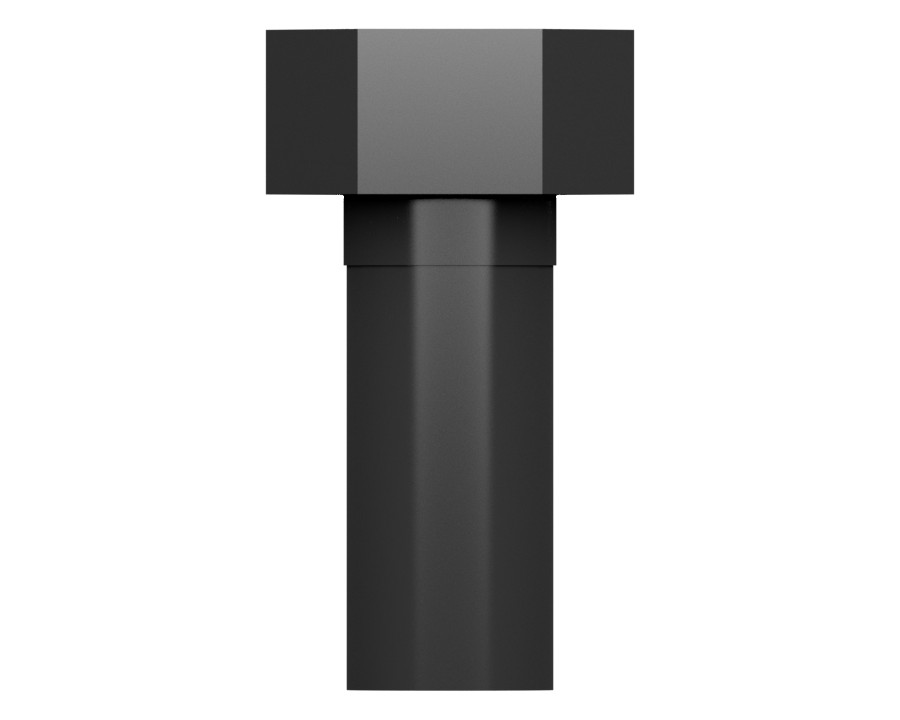

0L-1351 3/8-16 Thread Hex Head Bolt
Cat® engine hex head bolt is a threaded fastener with a hexagonal head, used to hold engine components in place.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Size | 3/8 in |
|---|---|
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Thread Size | 0.375 mm (0.015 in) |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Length | 22.22 mm (7/8 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 3.175 mm (0.13 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3512B, G3516, 3516C, 3512E, G3516C, C4.4, 3406C, 3406B, C9, C7.1
- Track Loaders: 992, 993, 995, 963, 953, 824C, 826H, 990K, 824G, 826K, 834H, 994K, 826G, 816F
- Cold Planers: PL87, PL83, PM620, PM622, PM-200
- Compactors: C9.3B, 816, 815, 814, 834K, 824K, 825K, C-15, C-9
- Engines: C32, C15, C27, C7, C13, C11, C18, C12, C175-16
- Excavators: 305, 374D L, 3456, 374F, 390D L, 390F L, 3126, 374, 3516B, 395, 3512C, 3508B, 3516E, 6040, 6060, 305 CR, 3101, 6015, 6030, 621G, 374F L, 637G, 637E, 385B, 350 L, 385C, 657G, 390F, 330 L, 365C, 385C FS, 621H, 6020B, 6018, 365C L, 6015B, 390D, 385C L, 621K, 6015 FS, 637K, 330B
- Asphalt Pavers: AD30, AD63, AD45
- Skid Steer Loaders: 24, 3126B
- Motor Graders: 3606, 140G, 16, 120, 120H, 16H, 140H, 12H
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D10, D8, D9, D8T, D10R, D11T, D7G, D7H, D4E, D7G2, D9L, D11R, D7R II, D5M, D6R XL, D6R, D8L, D5H, D7R, D5N, D8N, D9R, D8R, D4G, D9T, D9N, D11N, D10N, D10T, D6G2 XL, D5G, D6G, D6M, D5K XL, D3K2 LGP, D5K2 XL, D11, D5K LGP, D6G2 LGP, D10T2, D3G, D6T
- Wheel Loaders: RM500B, R2900 XE, 988K, 980H, 834, R2900G, 836, 950, 924GZ, 910, 980, 950G, 966F, 962G, 972G, 980G, 990H, 992C, R3000H, R1700G, 986H, 988H, R1300G, R1600H, R1700 II, 988G, 988F, 992D
- Off-Highway Trucks: 789D, 777, 773, 785D, 793D, 789, 777D, 794 AC, 785, 773E, 745, 773D, 773F, 740 GC, 777E, 740, 771D, 745C, 770G, 735, 772G, 740B, 775G, 798 AC, 796 AC, 793
