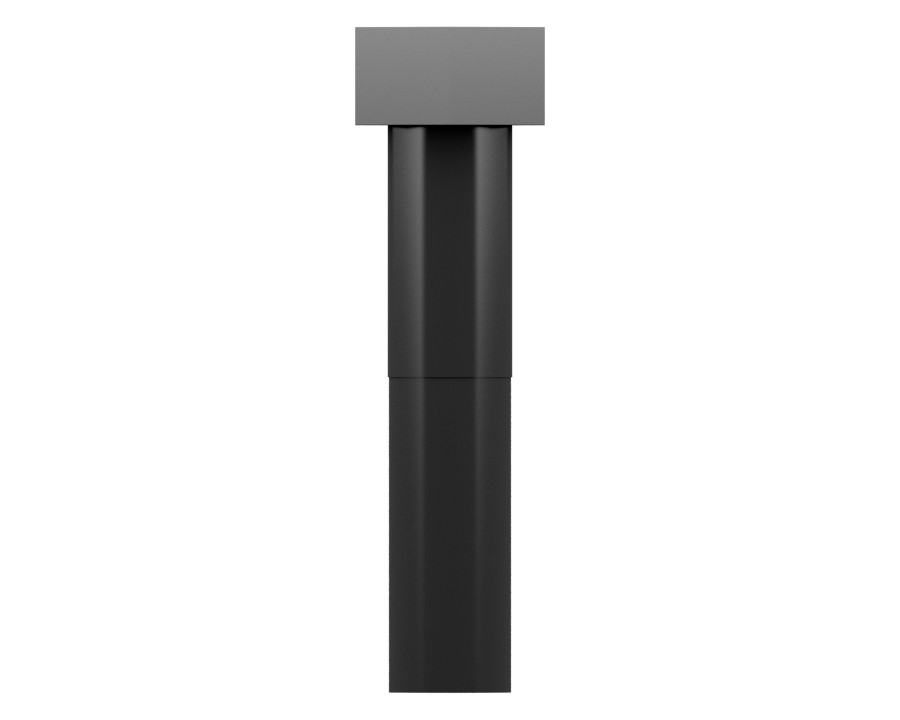

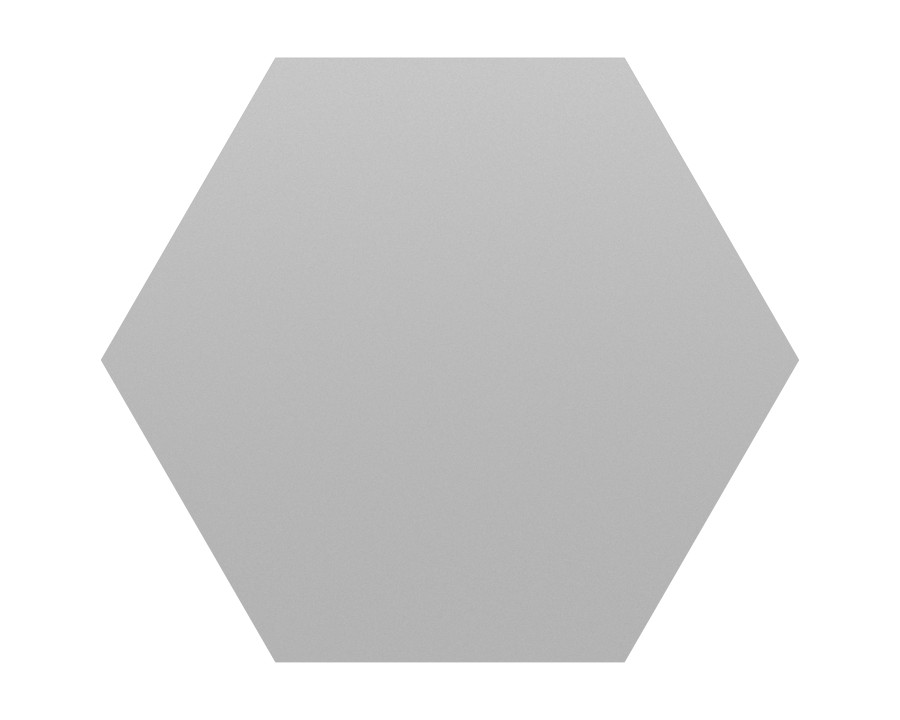

0S-0484 1/2-20 Hex Head Bolt
Cat® hex head bolt is a fastener that provides a secure, reliable connection with its hexagonal top.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Coating | 0 |
|---|---|
| Thread Size | 0.500 mm (0.02 in) |
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1/2×20 mm |
| Locking Feature | None |
| Bolt Length | 57.15 mm (2 1/4 in) |
| Bolt Type | Hex Head Bolt |
| Handle Length | 25.4 mm (1 in) |
Compatible Equipment
- Generator Sets: 3512E, 3516C, 3512B, C4.4
- Motor Graders: 120, 16, 16H
- Track Loaders: 992, 994K, 995, 824C
- Cold Planers: PL83, PL87
- Compactors: 816, 815, 814
- Dozers: D8, D10, D11R, D10R, D11N, D7R, D7R II, D6T, D8R, D4E, D8T, D8L, D8N, D7H, D9R, D9N, D9T, D9
- Excavators: 3516B, 3516E, 637K, 3512C, 6060, 3508B
- Wheel Loaders: 834, 950, 988F, R1300G, RM500B, R2900G, R3000H, 836, R1600H
- Off-Highway Trucks: 789D, 789, 772G, 745C, 773, 785D, 771D, 730, 725, 740, 740 GC, 745, 794 AC, 796 AC, 785, 793D, 793, 740B, 735, 725C2, 777D, 777
- Asphalt Pavers: AD45
Additional information
| Machine Model | 120, 16, 16H, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 637K, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 771D, 772G, 773, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 794 AC, 796 AC, 814, 815, 816, 824C, 834, 836, 950, 988F, 992, 994K, 995, AD45, C4.4, D10, D10R, D11N, D11R, D4E, D6T, D7H, D7R, D7R II, D8, D8L, D8N, D8R, D8T, D9, D9N, D9R, D9T, PL83, PL87, R1300G, R1600H, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
