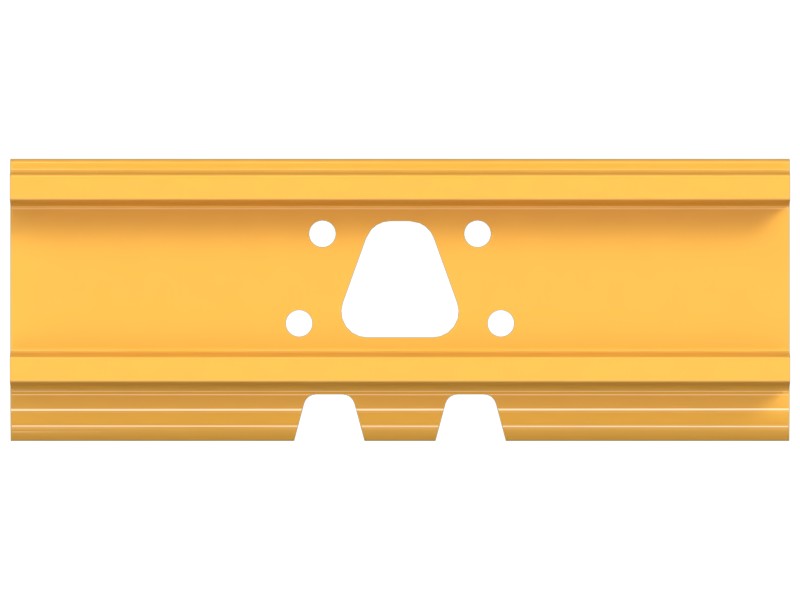

527-8994 Track Shoe
Cat® 600 mm wide 600 double grouser track shoe provides greater traction, stability, and undercarriage support
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features
- Double grouser track shoes have less penetration and traction than single grouser track shoes, but better turning ability. Double grouser track shoes are standard on track-type loaders and excavators because of their lower turning resistance and better maneuverability.
- Heavy duty track meets the demands of the most severe applications. Even in the harshest conditions, it ensures wet bushing rotation, pin and bushing retention remains industry-leading, and the added link weight helps prevent cracking. Components are made of premium steel and hardened for exceptional hardness and wear life, and they work and wear as a complete system to maximize uptime and productivity.
- Trapezoidal track shoes have a trapezoidal opening between the bolts that allows packed material to be released.
Specifications
| Undercarriage System | HD |
|---|---|
| Track Reinforcement System | None |
| Connector Type | Regular |
| Offset | None |
| Track Bolt Thread | M20 |
| Number of Grousers | Double |
| Abrasion Resistant Material | 0 ARM |
| Hole Type | Trapezoidal |
| Main Bolt Thread | None |
| Shear | No |
| Track Shoe Bolt Hole Spacing C | 155.57 mm |
| Track Shoe Bolt Hole Spacing A | 69 mm |
| Plate Thickness | 13 mm (0.512 in) |
| Track Shoe Section 1E Specification | 1E2774 |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Track Shoe Bolt Hole Spacing B | 119.57 mm |
| Material | Boron Steel |
| Track Shoe Type | Double Grouser |
| Track Shoe Width | 600 mm (23.62 in) |
Compatible Equipment
- Excavators: 323D2 L, 320, 323, 320 GC, 326, 326D2
