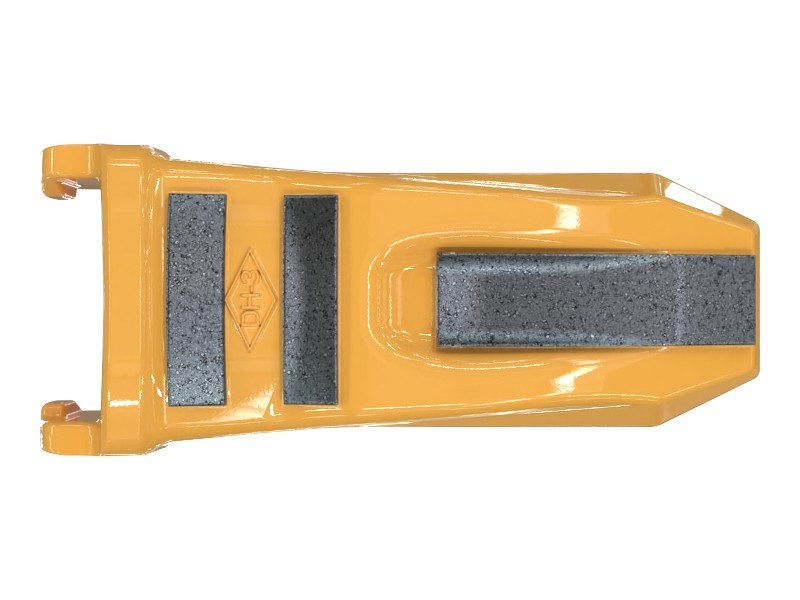

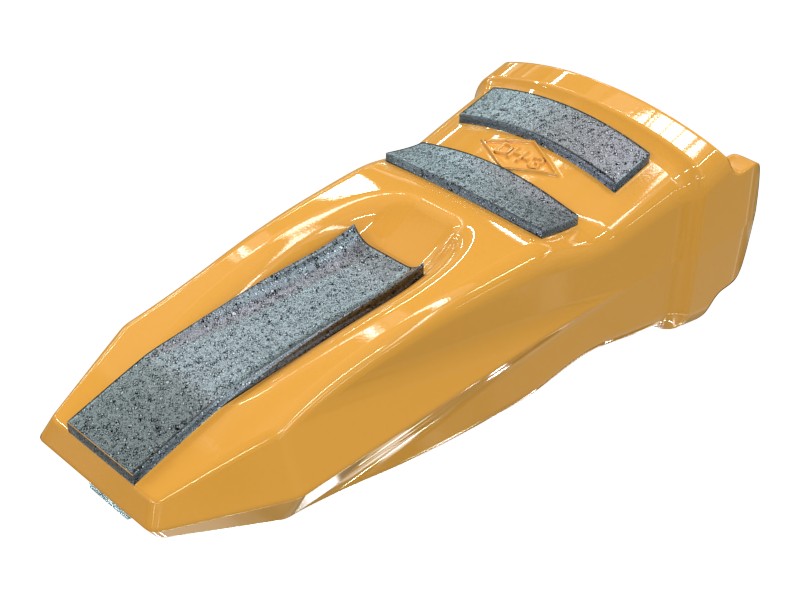

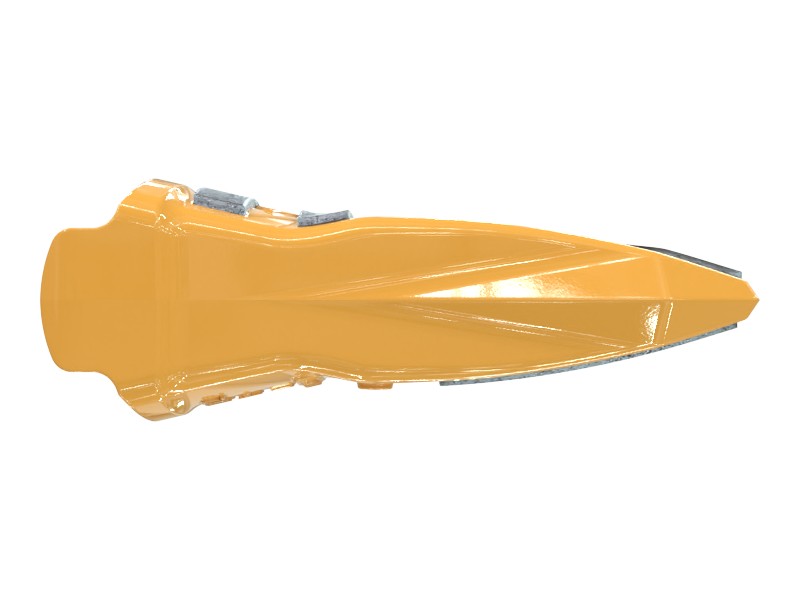

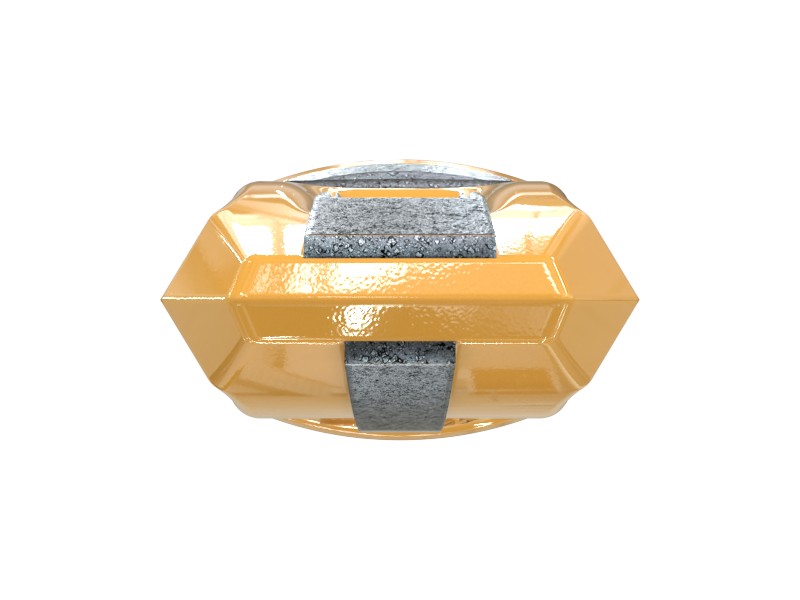

475-5501 Super Heavy Duty Bucket Tip
Cat® Extreme Duty ARM Tip for Rock Penetration Buckets
Description
The Cat® K Series™ system uses a twist-on vertical retainer design that holds securely and is easy to install and remove. K Series tips are designed around the inherent characteristics of your Cat equipment and protect the machine's bucket from damage like no other tip can.
Super heavy duty tips are suited to small and medium machines working under low to medium impact conditions, offering reliable durability and good value. Genuine Cat® tips use more wear material than standard general duty tips, ensuring high quality and long life.
MECHSC can help you select the right tip for your specific needs and job site conditions, striking the right balance between penetration and wear life. Choosing Genuine Cat parts is a smart business decision, both now and in the future.
Features
- Top self-sharpening cavity
- High strength, high penetration, and excellent abrasion resistant material
- ARM wrapped around the tip for improved penetration
Applications
- General digging and loading operations
- Low to moderate impact and wear
- Moderate penetration
Specifications
| Wear or Durability | ARM |
|---|---|
| Series | K Series |
| Front Width | 66 mm (2.598 in) |
| Rear Width | 130 mm (5.118 in) |
| Rear Height | 111 mm (4.37 in) |
| Overall Length | 309 mm (12.165 in) |
| Shape | Heavy Duty |
| Size | K100 |
| Material | Alloy Mixed: Metal |
Compatible Equipment
- Wheel Loaders: 966H, 972H, 966K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
