Description

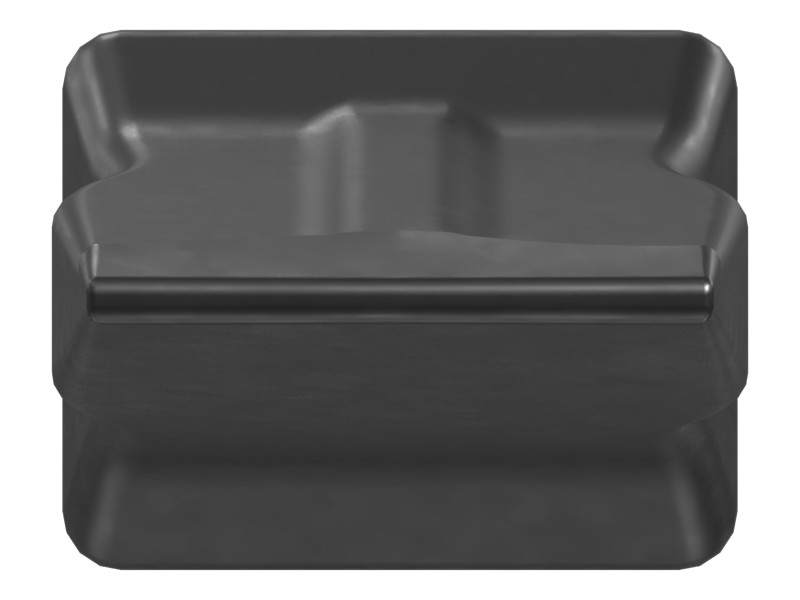

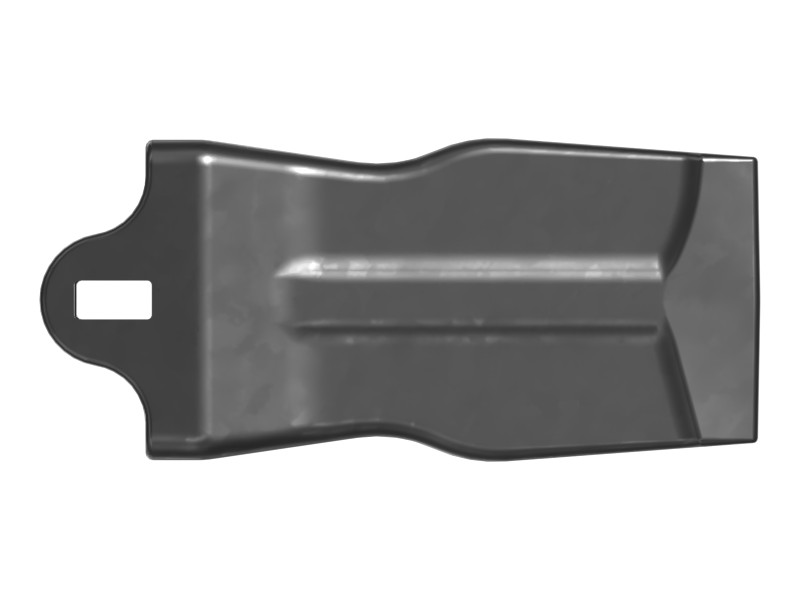

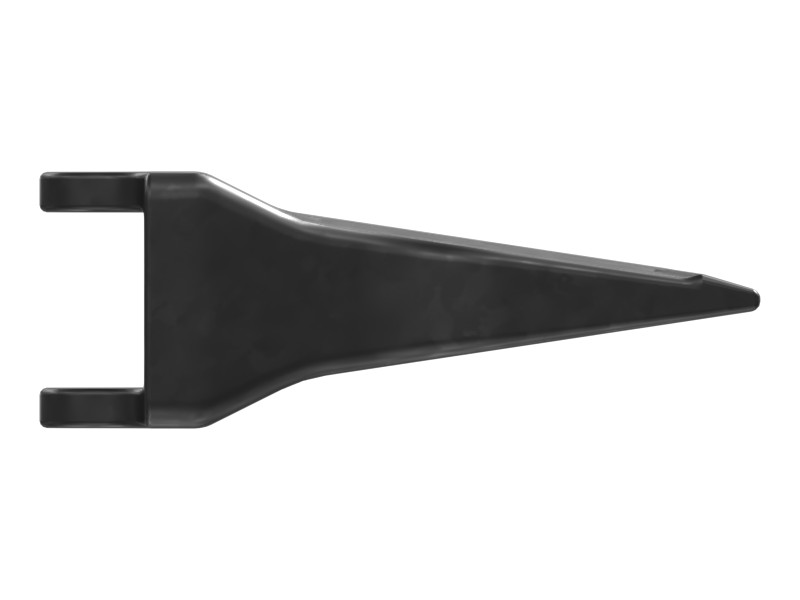

The general purpose tip (part number 119-9938) balances strength, penetration, and wear life. This bucket tip is secured to the bucket adapter with a lock pin.
Our durable bucket tips are cast from high-quality material and have long wear life so your machine provides the performance you need. Always choose genuine Cat bucket ground engaging tools to protect your investment.
Cat Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistently superior protection
Features
- General purpose tip, used with a lock pin
- Tip Width: 57 mm (2.2 in)
- Overall Length: 135 mm (5.3 in)
- Overall Width: 62 mm (2.4 in)
- Overall Height: 51 mm (2.0 in)
- Weight: 1.2 kg (2.65 lb)
Applications
General purpose buckets on small hydraulic excavators
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Wear or Durability | Standard |
|---|---|
| Material | Gray Cast Iron |
| Length | 195.6 mm (7.7 in) |
| Overall Height | 51 mm (2.0 in) |
| Height | 58.9 mm (2.32 in) |
| Overall Length | 135 mm (5.3 in) |
| Width | 56 mm (2.2 in) |
| Overall Width | 62 mm (2.4 in) |
| Weight | 1.2 kg (2.65 lb) |
Compatible Equipment
- Mini Excavators: 302CR, 305.5E, 301.7CR, 305.5, 301.5
- Excavators: 305E2 CR, 301.8, 301.6, 305 CR, 305
