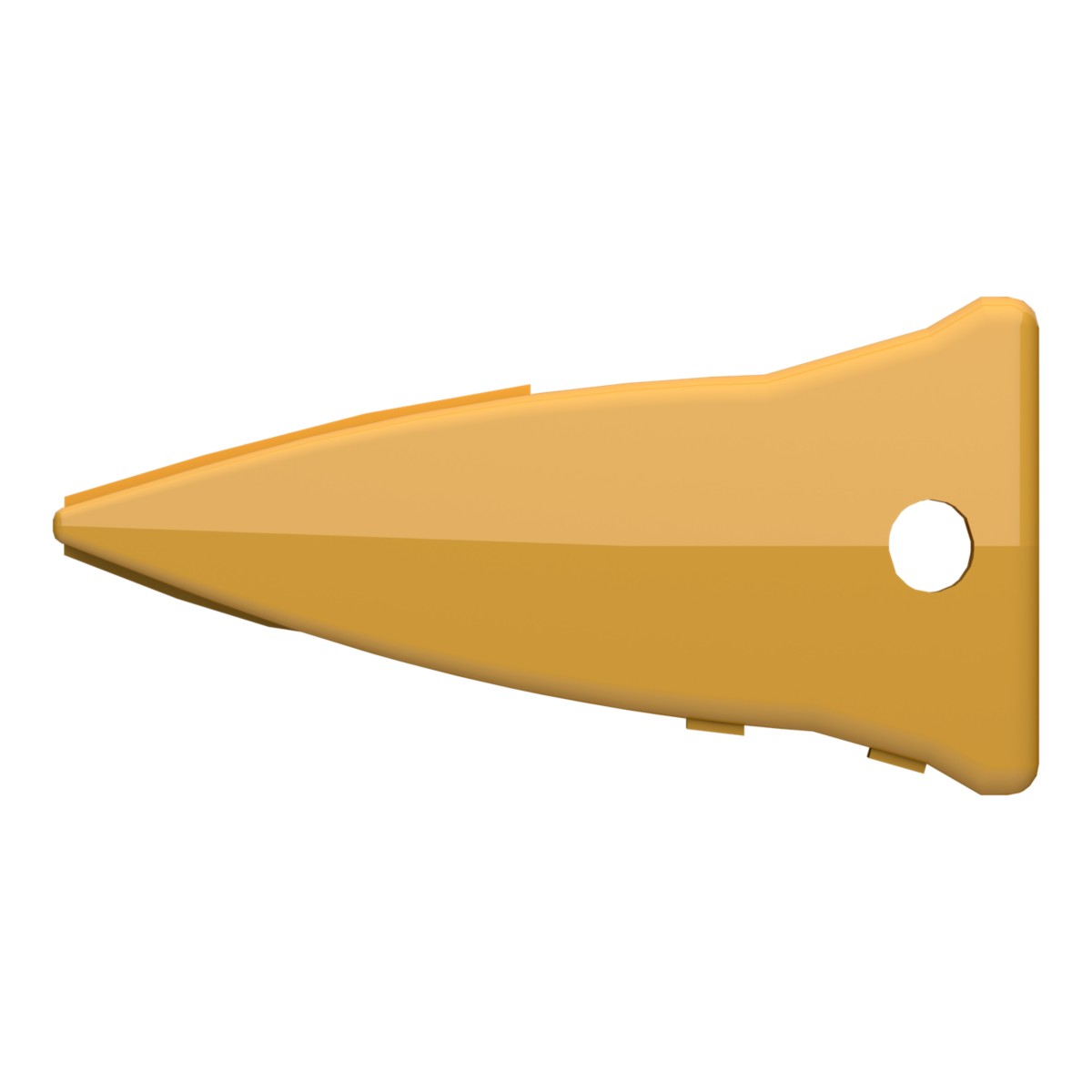

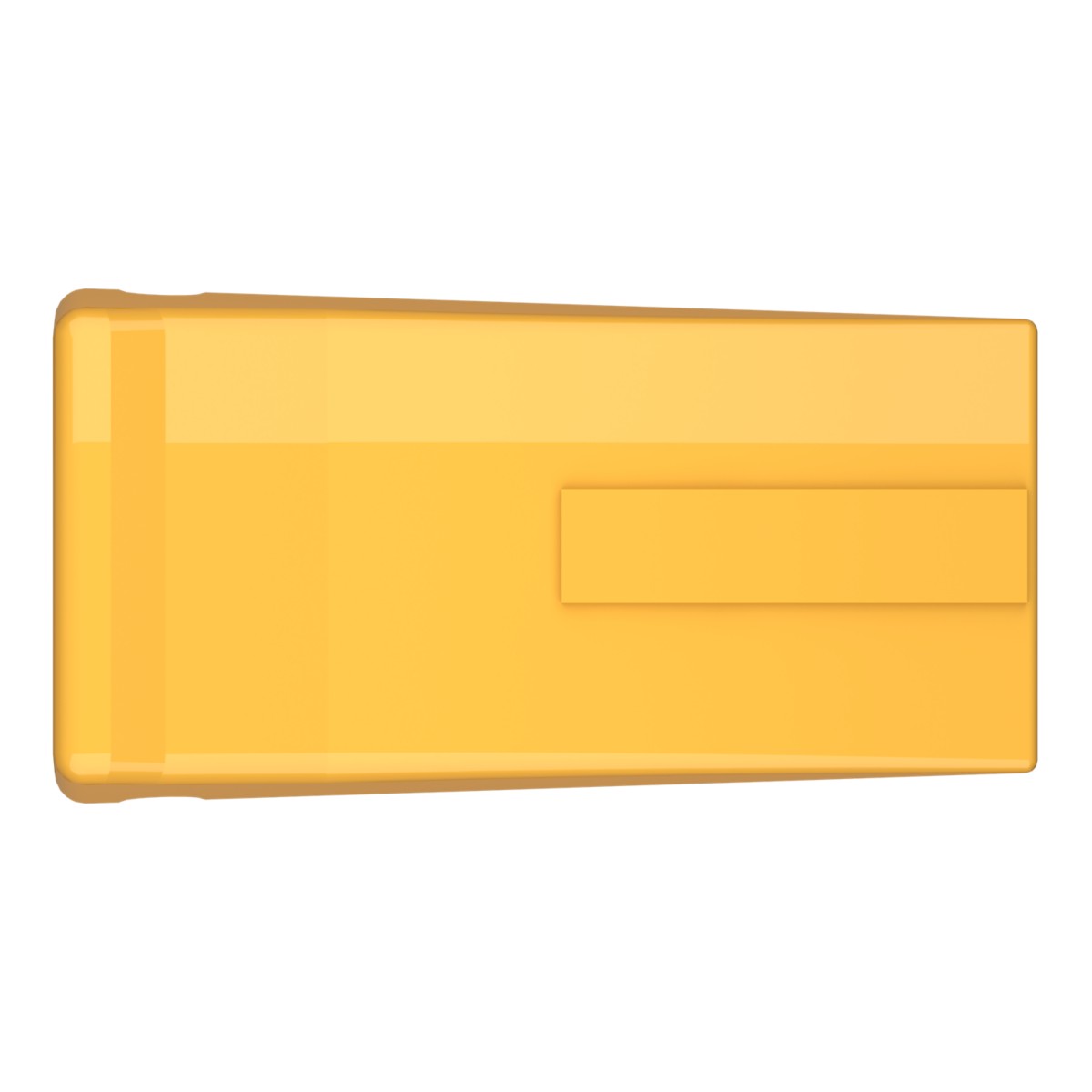

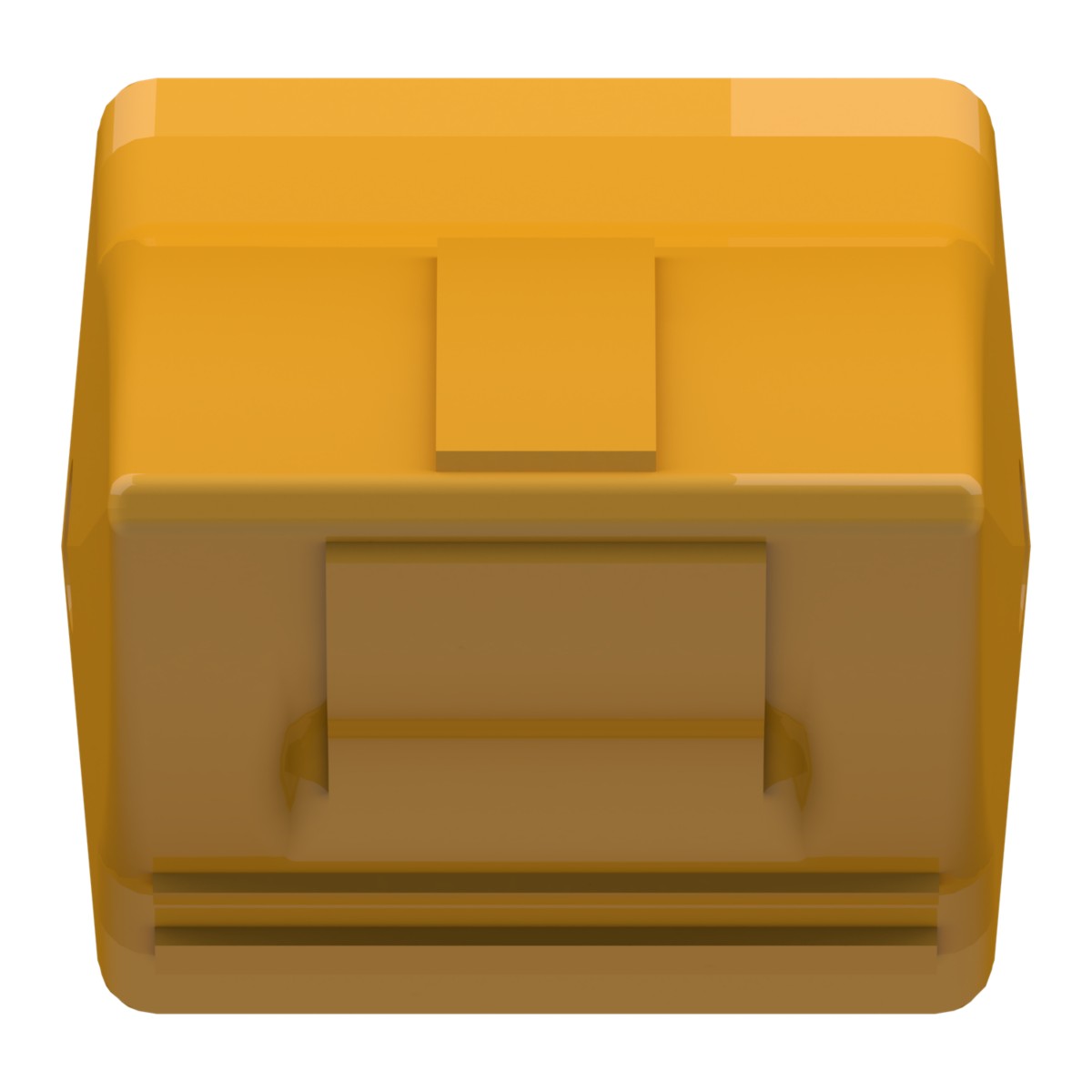

117-6802 Heavy Duty Long ARM Tip
J800 Heavy Duty Long Tip
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® general duty tips offer unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (GET) are designed around the inherent characteristics of your Cat equipment to provide consistently superior protection.
With an industry-standard side pin design, Genuine Cat bucket tips can be used in a wide range of applications, greatly increasing equipment versatility. The standard pin and retaining ring system allows quick installation and removal.
The Heavy Duty Long Tip is the benchmark for other tips, with approximately 60% more wear material in the tip body. Heavy Duty tips are also available with Abrasion Resistant Material (ARM). Our tips are durable, cast from steel that holds its hardness and offers long wear life, enabling your machine to deliver the performance you need. Always choose Genuine Cat ground engaging tools to protect your investment.
Features
- Long, symmetrical top and bottom self-sharpening chambers
- High strength, high penetration, and excellent abrasion resistant material
- ARM wrapped around the tip for improved penetration
Applications
- General digging and loading operations
- Low to moderate impact and wear
Specifications
| Size | J800 |
|---|---|
| Front Width | 219 mm (8.622 in) |
| Shape | Heavy Duty |
| Rear Height | 240 mm (9.449 in) |
| Overall Length | 475 mm (18.701 in) |
| Rear Width | 248.8 mm (9.795 in) |
| Height | 228.6 mm (9 in) |
| Length | 495.3 mm (19.5 in) |
| Width | 233.7 mm |
| Wear or Durability | ARM |
| Series | J Series |
| End Bit Size | J800 |
Additional information
| Part Source | Genuine OEM |
|---|
