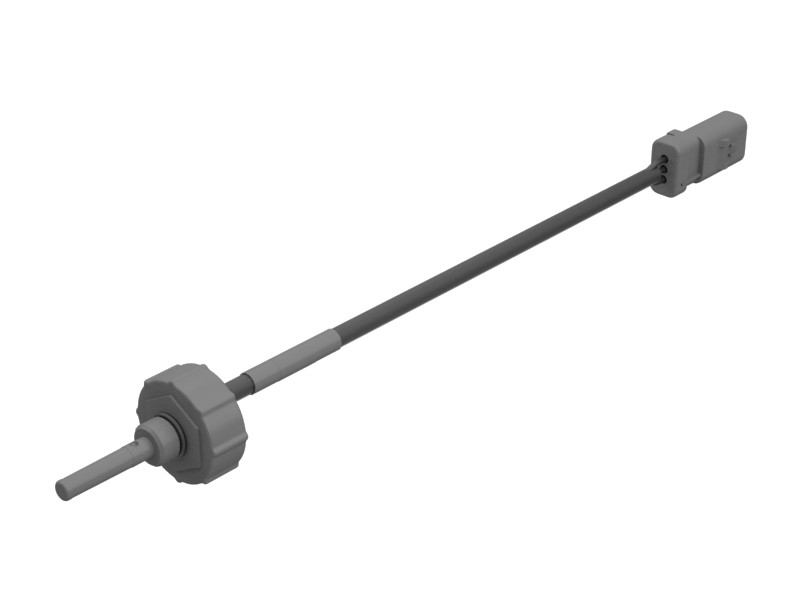

423-6434 Fuel (Water) Level Sensor Assembly
Cat® Active Water Level Sensor with Electronic Module
Description
Active sensor that requires an external power supply and includes a reliable level switch to provide a high water level warning for fuel separator applications. Uses a capacitive principle with a reliable design and no moving parts. Can be used as a ground switch or a high-side switch. Suitable for engine-mounted applications.
Features
- Compact design with no external electronic module
- For use in severe conditions (high vibration and high temperature)
- Can be installed or serviced without tools
- Source switch or logic ground switch
Applications
- Water in fuel
- Cat level sensors are specific to the application or tank. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Connector Type | 3-Pin Ampseal |
|---|---|
| Material | Polypropylene Plastic |
| Thread Size | 9/16-18, SAE O-Ring in |
| Lead Length | 250 mm (9.8 in) |
Compatible Equipment
- Generator Sets: C7.1, C4.4, C9, 3512B
- Track Loaders: 963K, 953K, 953, 963
- Cold Planers: PL61
- Compactors: CS12, 816, 815, 814, CS11, CB16, CW-34, CB-44B, CB-64B, CB-66B, CB13, CB10, CB15, CS-533E, CS-54B
- Engines: C13, C32, C6.6
- Excavators: 320D2, 329D2 L, 326D2 L, 326D2, 329D2, 390F L, 374, 316 GC, 349F L, 350, 352, 313D2 GC, 313D2, 313F L, 320, 330D2, 323D2 L, 336F, 320D2 L, 323, 336F L, 320D2 GC, 318D2 L, 320 GC, 312E, 315F LCR, 329E L, 312D2, 312D2 L, 320E, 318D2, 335F LCR, 329E, 330D2 L, 312E L, 312D2 GC, 336F L XE, 323D2, 336F LN, 349, 312F, 3101, 395, 355, 313D2-GC, XQP200, 352F, 428F, 416F2, 434F2, 350MHPU
- Asphalt Pavers: AP655F
- Skid Steer Loaders: 24
- Motor Graders: 120, 160K, 12K, 140K, 349 GC, 316F, 140 GC
- Dozers: D6N, D3K2 LGP, D6K2, D5K2 XL, D4
- Wheel Loaders: 950 GC, 926M, 924K, 966F, 938M, 938K
Additional information
| Machine Model | 120, 12K, 140 GC, 140K, 160K, 24, 3101, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D2, 313D2 GC, 313D2-GC, 313F L, 315F LCR, 316 GC, 316F, 318D2, 318D2 L, 320, 320 GC, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323D2, 323D2 L, 326D2, 326D2 L, 329D2, 329D2 L, 329E, 329E L, 330D2, 330D2 L, 335F LCR, 336F, 336F L, 336F L XE, 336F LN, 349, 349 GC, 349F L, 350, 350MHPU, 3512B, 352, 352F, 355, 374, 390F L, 395, 416F2, 428F, 434F2, 814, 815, 816, 924K, 926M, 938K, 938M, 950 GC, 953, 953K, 963, 963K, 966F, AP655F, C13, C32, C4.4, C6.6, C7.1, C9, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CS-533E, CS-54B, CS11, CS12, CW-34, D3K2 LGP, D4, D5K2 XL, D6K2, D6N, PL61, XQP200 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
