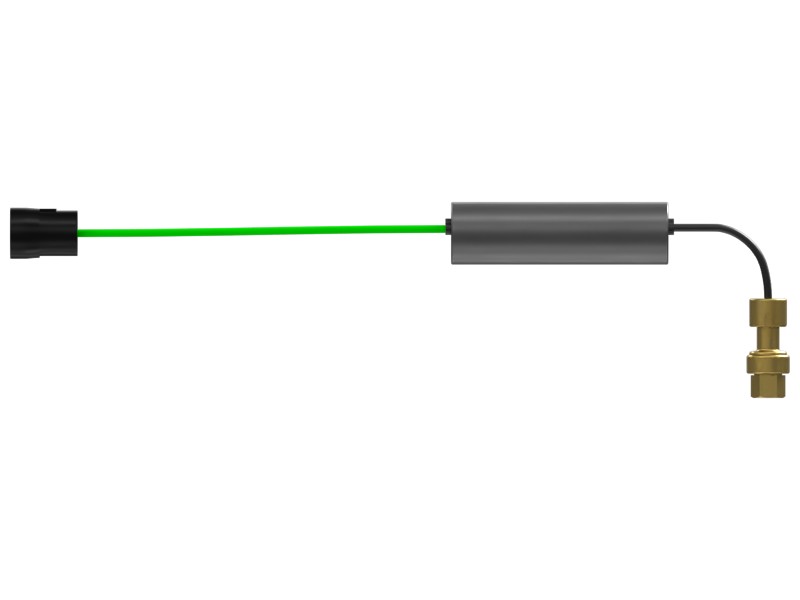

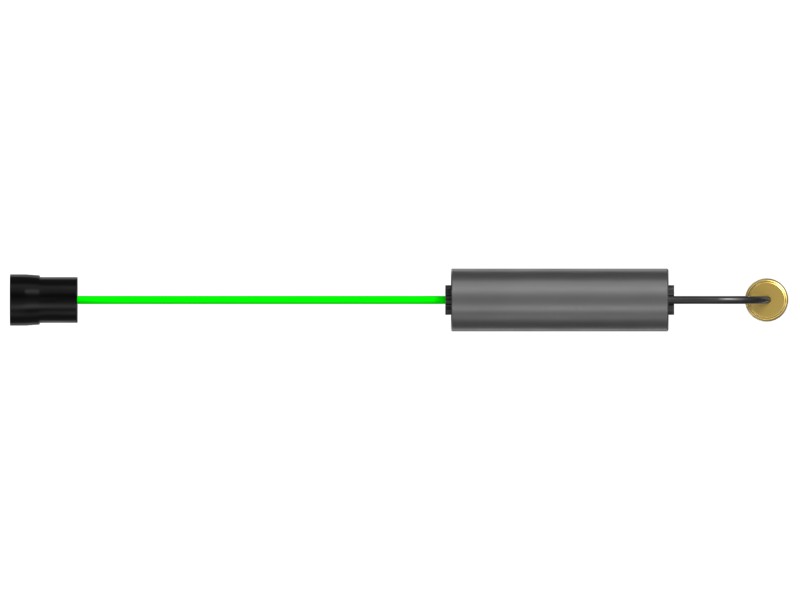

100-4311 5 kHz Pulse Width Modulated Pressure Sensor
Cat® Pressure Sensor (with Three Pins and Three Sockets)
Description
Cat Pressure Sensors use capacitive or strain gauge-based technology to generate an output signal (analog or PWM) proportional to the applied pressure. The pressure sensors are available with a variety of electrical connectors and process connection types.
Features
- 15.9 Hex Nut
- Compact size
- Easy to install
Applications
- Pressure sensors can be used in engine-related applications such as air systems, exhaust aftertreatment systems, fuel systems, and engine oil systems.
- Cat pressure sensors are application-specific sensors. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Lead Length | 135 (Port), 200 (Sleeve) mm (5.32 (Port), 7.87 (Sleeve) in) |
|---|---|
| Shank Diameter | 33.3 mm (1.3 in) |
| Connector Type | 3 Socket HD |
| Connector Pin Count | 3 Pin |
| Overall Length | 483 mm (19.01 in) |
| Hole Thread Size | No. 4 Port (7/16-20-2B) |
| Sensor Type | Pressure |
Compatible Equipment
- Track Loaders: 834H
- Wheel Loaders: 990H, 988G, 988H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
