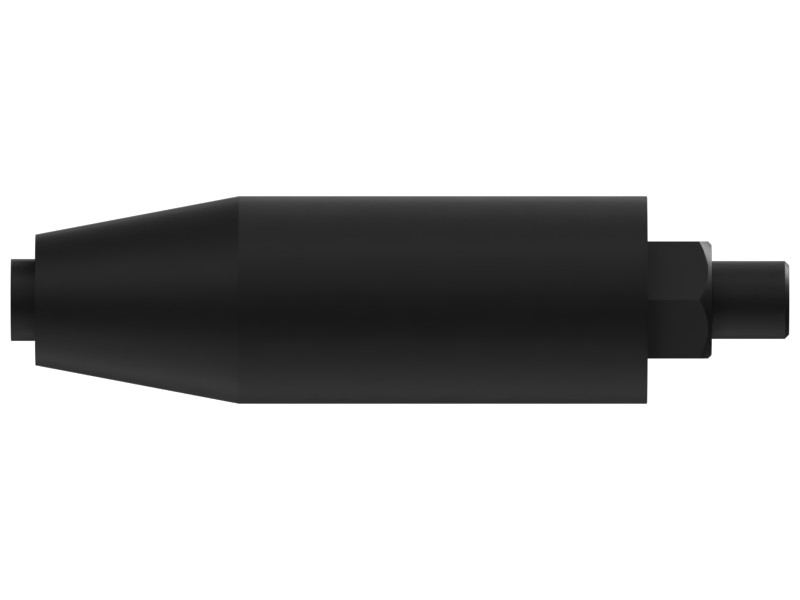

107-0611 Engine Oil Pressure Switch
Cat® Engine Oil Pressure Switch Monitors Oil Health and Triggers Service Alerts to Protect Engine Performance and Service Life
Description
The Cat pressure switch group is designed to turn on or off based on changes in the system set pressure. Cat components help keep your equipment running at its best.
Features
- Heavy-Duty Construction
- Rugged design for long service life
- High accuracy and stable performance
- Quick and easy installation
- Media: Oil, Fuel, Air
- Designed to work with other Cat parts to ensure the equipment reaches its full potential.
Applications
Used in the fuel system of Cat machines. Cat parts are built to work in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and dust.
Specifications
| Material | Carbon Steel |
|---|---|
| Connector Type | 2 Pin |
| Hex Size | 14.3 mm (0.56 in) |
| Thread Size | 1/8-27-NPTF in |
| Length | 345.3 mm (13.59 in) |
| Diameter | 25.4 mm (1 in) |
| Temperature | -40 to 121 °C (-40 to 249.8 °F) |
Compatible Equipment
- Motor Graders: 12H, 140H
- Compactors: CS-533C, CS-583D, CS-533E
- Dozers: D9L
- Mini Excavators: 307
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
