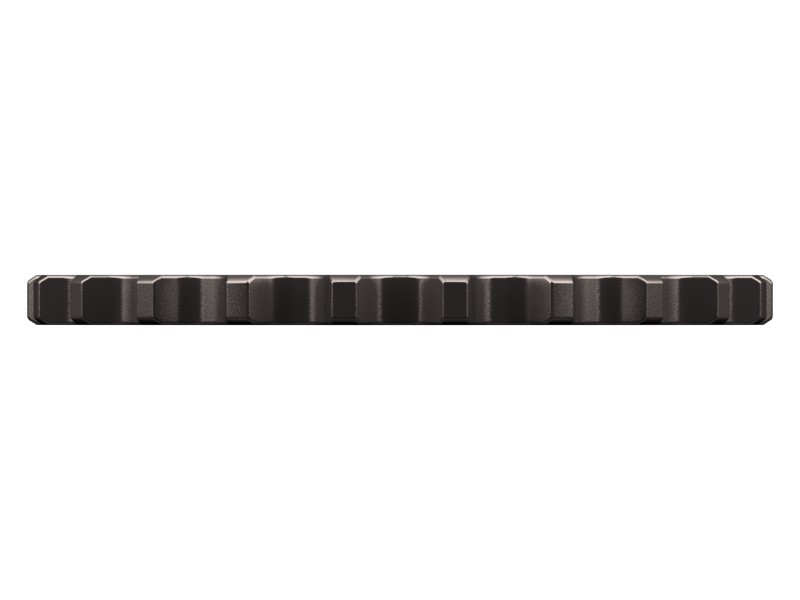

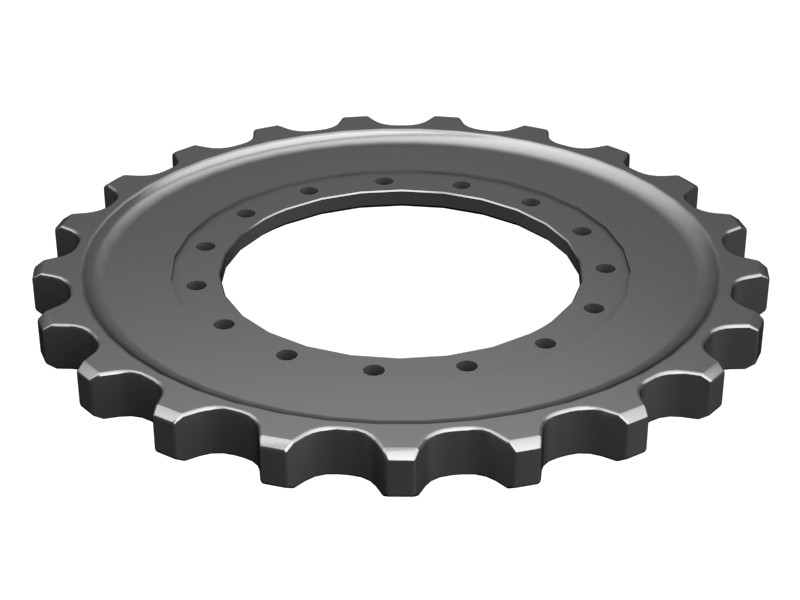

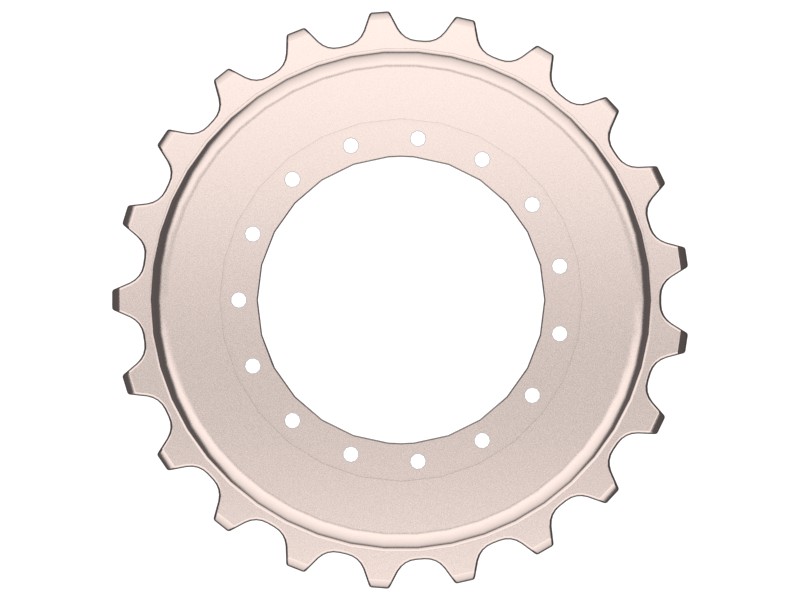

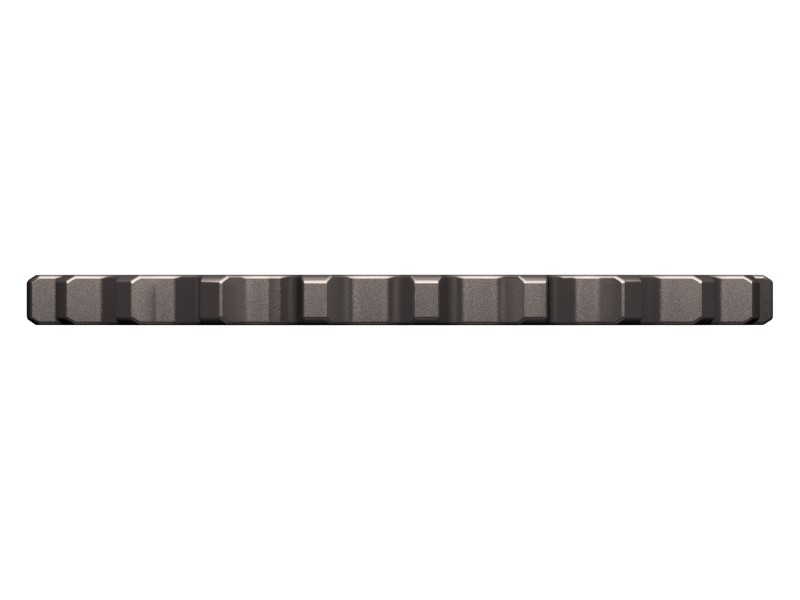

294-8262 Track Sprocket
Cat® track sprockets are gears that mesh with the chain to transmit motion in track-type machines.
Description
Sprockets transmit engine power to the link group and engage it to produce motion.
Specifications
| Bolt Thread Size | M14 |
|---|---|
| Tip Diameter | 533.6 mm (21.008 in) |
| Pitch Diameter | 522.5 |
| Noise Reduction Lugs | No |
| Pressure Reducing | No |
| Sprocket Mounting Type | Symmetric |
| Bolt Circle Diameter | 300 mm (11.811 in) |
| Pitch | 154 mm (6.063 in) |
| Material Type | Plain Steel |
| Packing Offset Diameter | 522.5 |
| Bushing Radius | 20.9 mm (0.823 in) |
| Groove Angle | 64 degrees |
| Inside Diameter | 265.12 mm (10.438 in) |
| Backlash | 7.9 mm (0.311 in) |
| Tooth Width | 35.5 mm (1.398 in) |
| Number of Bolts | 15 |
| Undercarriage System | HD |
| Track Shoe Type | Super Extreme Duty, Single Grouser |
| Number of Teeth | 21 |
| Material | Alloy Steel |
Compatible Equipment
- Mini Excavators: 307, 307D, 307E2, 308E2
- Excavators: 308D, 308E, 307E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
