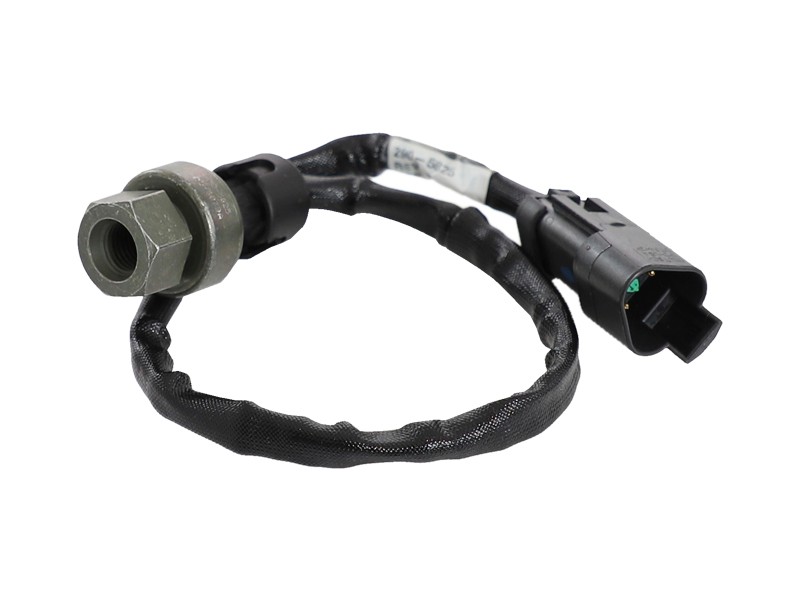

Description
Cat high pressure sensors use strain gauge-based technology to generate an output signal (analog, PWM (Pulse Width Modulation), or variable frequency) proportional to the applied pressure. Sensors are available with a variety of electrical connector and process connection types.
Features
- Compact size
- Easy to install
- Can be used with integral connectors or a variety of harness lengths
Applications
- High pressure sensors are widely used in various machine applications, such as brake systems, steering systems, and hydraulic systems.
- Cat pressure sensors are application-specific sensors. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Voltage | 5 DC Regulated VAC |
|---|---|
| Connector Type | 3-Pin DT |
| Hole Thread Size | SAE #4F in |
Compatible Equipment
- Wheel Excavators: M315D2, M315D, M322D, M313D, M320D2, M317D2, M320
- Compactors: CW-34
- Excavators: M325D L MH
- Wheel Loaders: 928HZ, 928G, 924GZ, 924HZ
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 924GZ, 924HZ, 928G, 928HZ, AP-600D, CW-34, M313D, M315D, M315D2, M317D2, M320, M320D2, M322D, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
