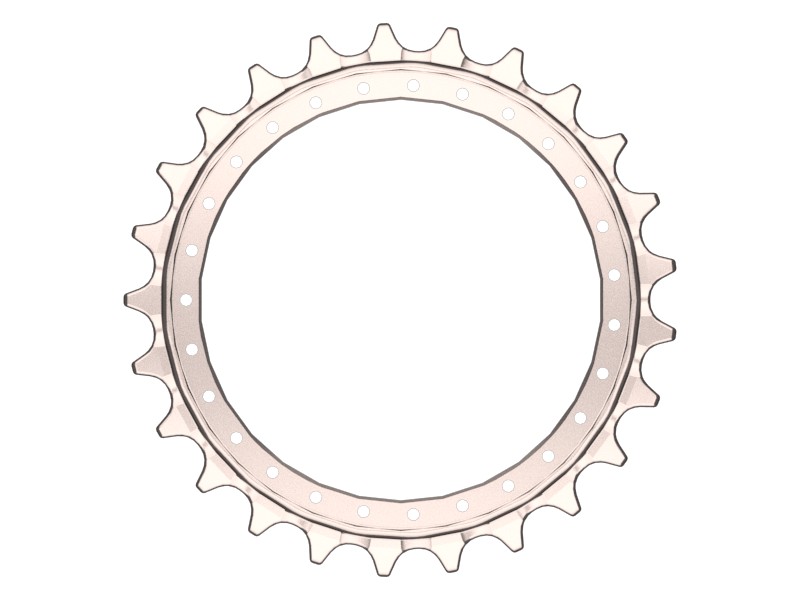

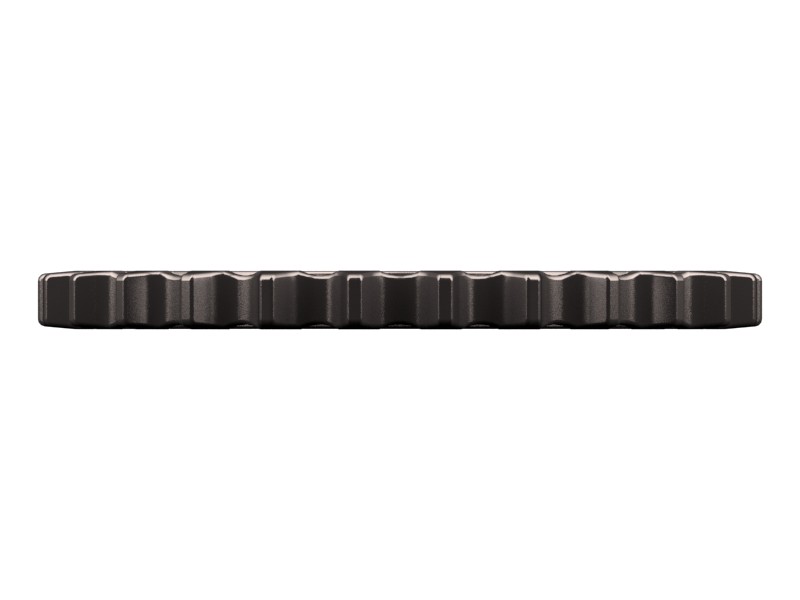

258-9788 Track Sprocket
Cat® track sprockets are gears that mesh with the chain to transmit motion in track-type machines.
Description
Sprockets transmit engine power to the link group and engage it to produce motion.
Specifications
| Material | Alloy Steel |
|---|---|
| Undercarriage System | ABRASION |
| Tip Diameter | 774 mm (30.472 in) |
| Material Type | Plain Steel |
| Bolt Circle Diameter | 600 mm (23.622 in) |
| Inside Diameter | 560 mm (22.047 in) |
| Pitch | 190 mm (7.48 in) |
| Number of Bolts | 27 |
| Noise Reduction Lugs | No |
| Pitch Diameter | 764 |
| Backlash | 6.18 mm (0.243 in) |
| Tooth Width | 62 mm (2.441 in) |
| Pressure Reducing | Yes |
| Bushing Radius | 30.35 mm (1.195 in) |
| Bolt Thread Size | 0.625 |
| Packing Offset Diameter | 756.89 |
| Groove Angle | 56 degrees |
| Sprocket Mounting Type | Offset |
| Track Shoe Type | Double Grouser, Center Punched |
| Number of Sprocket Teeth | 25 |
| Number of Sprocket Segments | 1 |
| Number of Sprocket Bolts | 27 |
| Bolt Size | 17.83 mm (17.83 in) |
| Number of Teeth | 25 |
Compatible Equipment
- Dozers: D5K LGP, D5K XL, D5K2 XL
