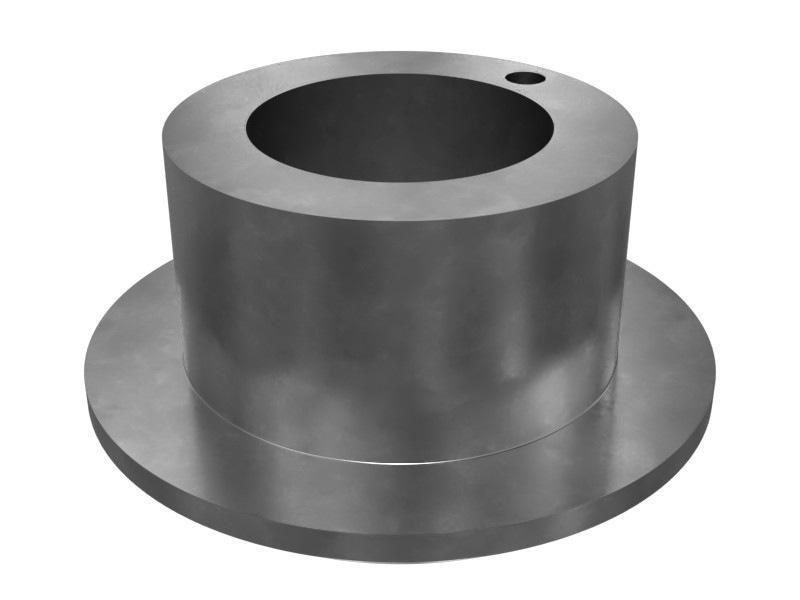

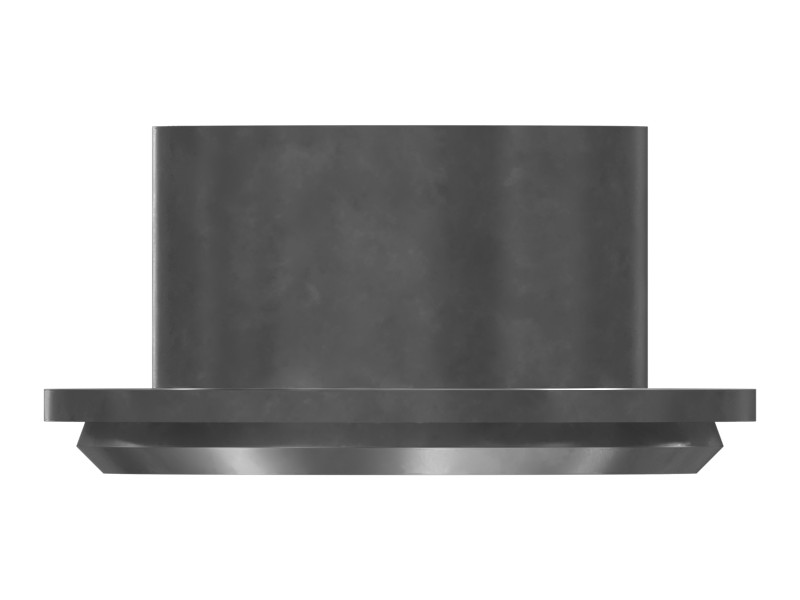

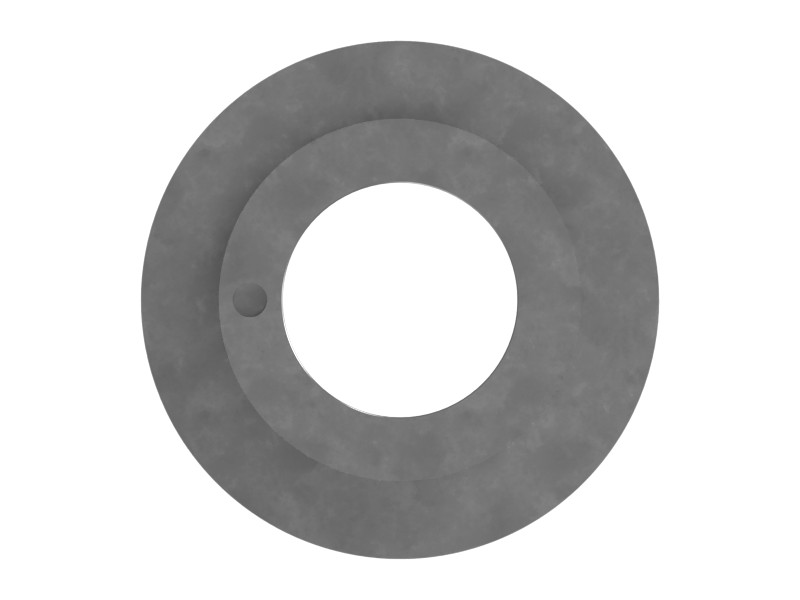

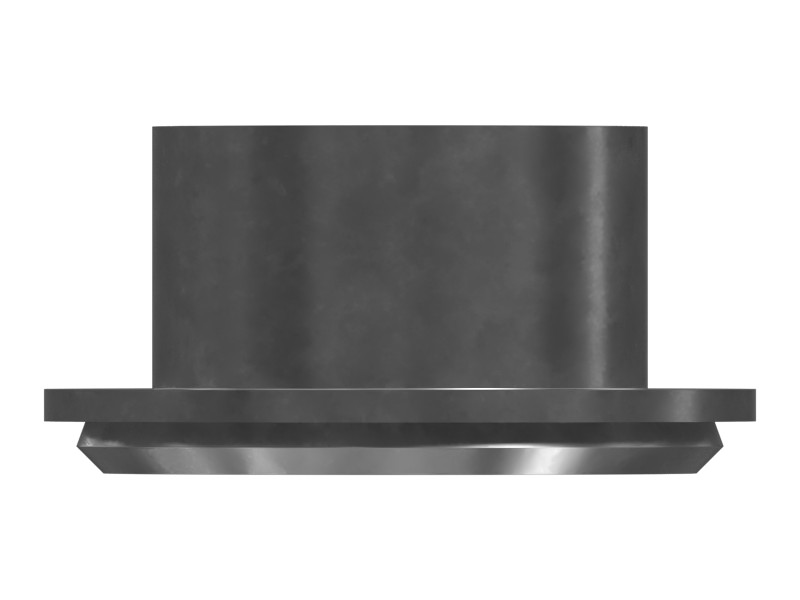

250-6417 137.8 mm OD Sleeve Flange
Cat® 137.8 mm OD 96.4 mm Long Sleeve Flange for Linkage in Adjuster Buckets
Description
Cat® machine linkage sleeve bearings support pivoting between the frame, linkage and work tools. These components are most commonly used in machine booms and buckets. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface treatment and manufacturing process so it works effectively and wears in step with all other adjacent and dependent parts.
Features
Cat heavy-duty sleeve bearings are made from advanced steel and hardened for exceptional hardness and wear life. They work as a system on specific Cat machines and are tested and proven in the world's toughest applications. These bearings offer a lower overall cost, outstanding strength and fatigue life and superior wear resistance, while providing exceptional protection against wear, even under high-load conditions.
Applications
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications. They are designed to match mating pins.
Specifications
| Flange Thickness | 9 mm (0.35 in) |
|---|---|
| Unique Features | No |
| Cross Hole | No |
| Ferrule Outside Diameter | 137.8 mm (5.425 in) |
| Ferrule Inside Diameter | 90.05 mm (3.545 in) |
| Flange Diameter | 198 mm (11.02 in) |
| Inside Diameter | 90 mm (3.55 in) |
| Internal Groove | No Grease Hole in Bearing |
| Outside Diameter | 138 mm (5.43 in) |
| Overall Length | 96 mm (3.80 in) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330D L, 329E L, 320D L, 330D2 L, 323D2 L, 325D, 323D2, 323D L, 330 GC, 324D L, 320D2 GC, 320 GC, 325D L, 320D2 L, 330D2, 328D LCR, 329D L, 324D, 326, 335, 333 GC, 326 GC, 325, 323, 320, 329E, 336D L, 326D L, 335F LCR, 320D RR, 330GC, 326GC, 330, 326D2, 320D, 320D2, 329D, 326D2 L, 329D2, 329D2 L
Additional information
| Machine Model | 320, 320 GC, 320D, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 323, 323D L, 323D2, 323D2 L, 324D, 324D L, 325, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D L, 330D2, 330D2 L, 330GC, 333 GC, 335, 335F LCR, 336D L, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
