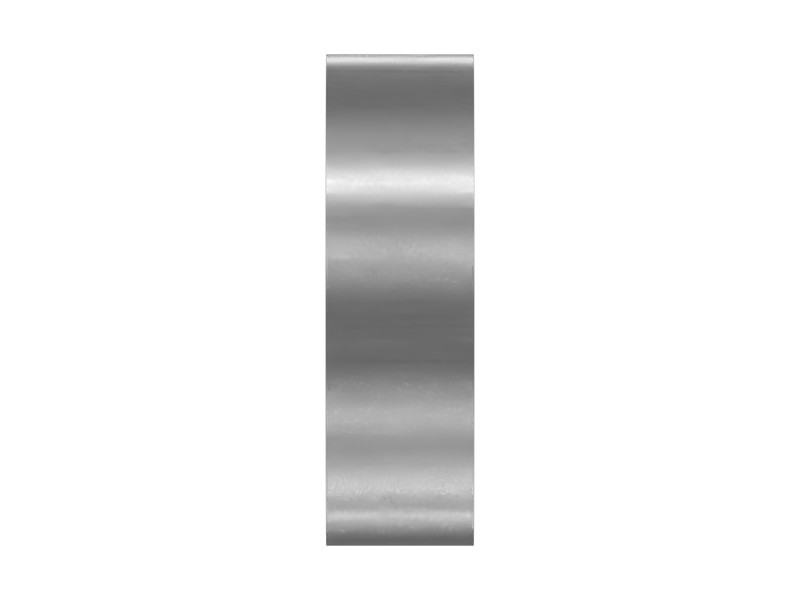

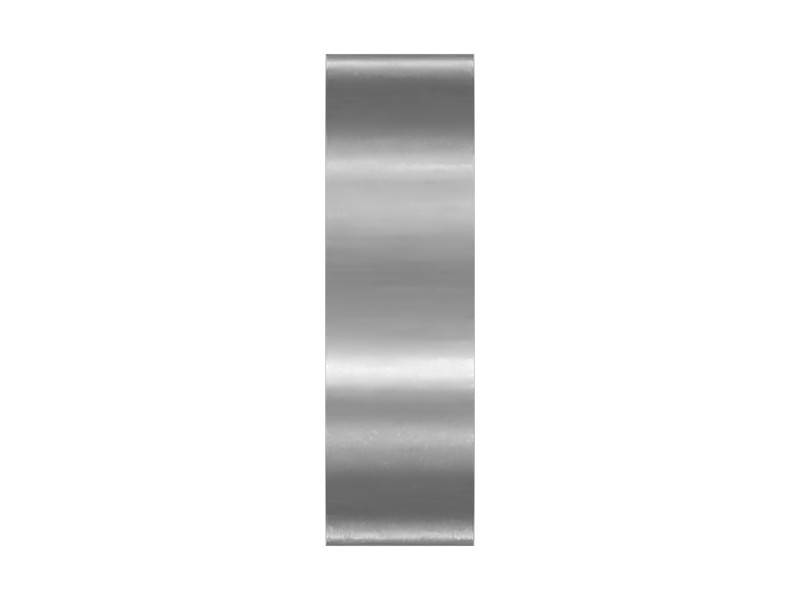

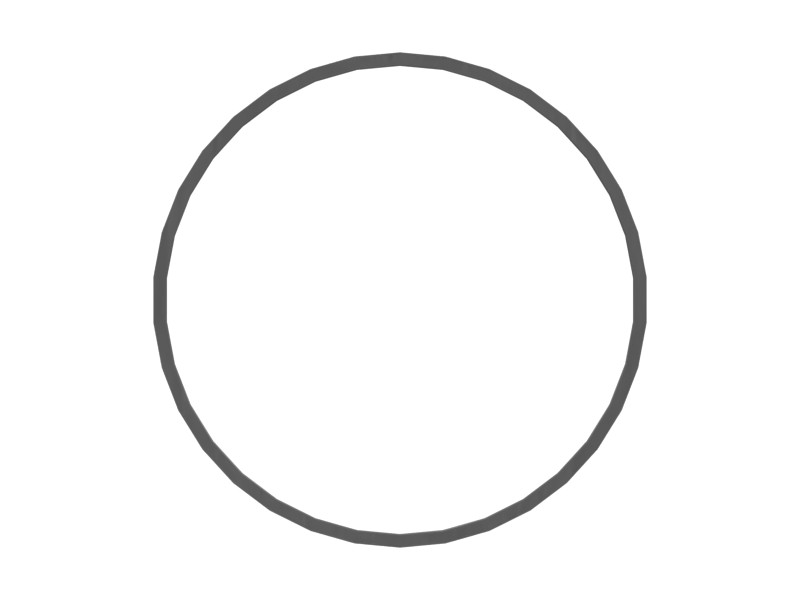

096-4430 100 mm OD Sleeve Bearing
Cat® Steel-Backed Bronze PTFE-Filled Sleeve Bearing Bushing for Hydraulic Cylinders
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Outside Diameter | 100 mm (3.937 in) |
|---|---|
| Unique Features | No |
| Ferrule Inside Diameter | 95.06 mm (3.743 in) |
| Groove Width – A | 30.00 mm (1.18 in) |
| Rod Diameter | 95.00 mm (3.74 in) |
| Groove Outside Diameter – B | 100.00 mm (3.94 in) |
| Type | Straight Sleeve |
| Inside Diameter | 95 mm (3.74 in) |
| Outside Diameter | 100 mm (3.94 in) |
| Overall Length | 30 mm (1.18 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 320, 330 GC, 320 GC, 320D FM, 326, 320D2 L, 320D L, 325D L, 330D2, 328D LCR, 329E L, 330D2 L, 323D L, 324D L, 325, 335F LCR, 329D L, 330GC, 324D, 325D, 323D2 L, 326GC, 326D L, 329E, 320D2 GC, 323D, 345C, 333 GC, 326 GC, 395, 330, 320D2, 320D, 329D2, 326D2 L, 326D2, 329D, 329D2 L
Additional information
| Machine Model | 320, 320 GC, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 323D, 323D L, 323D2 L, 324D, 324D L, 325, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333 GC, 335F LCR, 345C, 3512B, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
