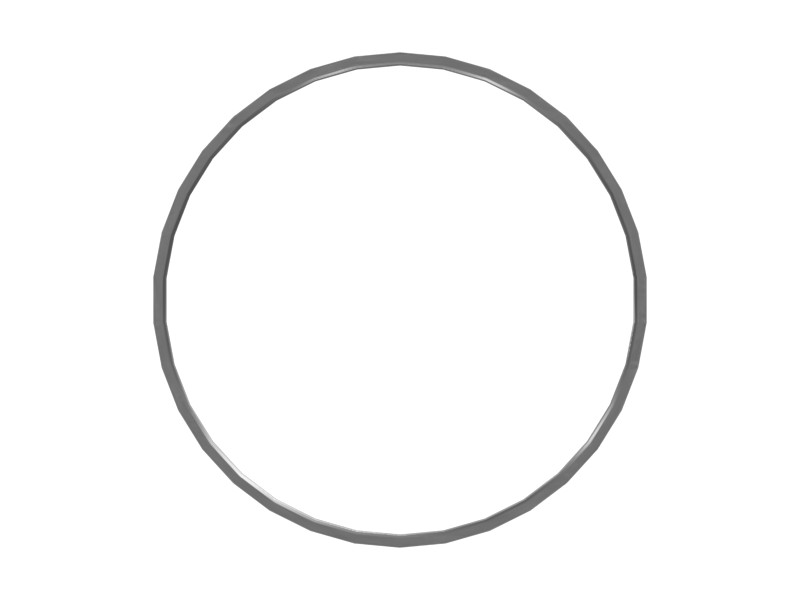

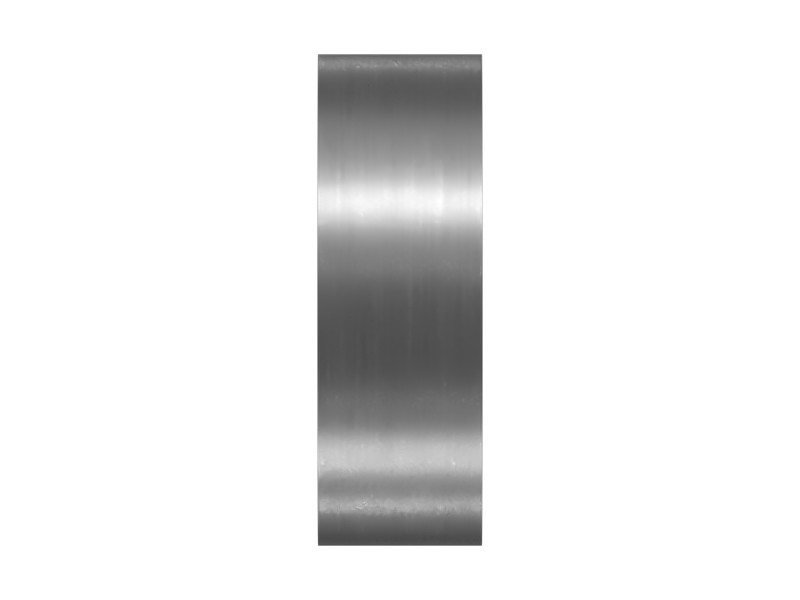

096-5625 105 mm OD Sleeve Bearing
Cat® Steel-Backed Bronze PTFE-Filled Sleeve Bearing Bushing
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Unique Features | No |
|---|---|
| Ferrule Inside Diameter | 100.06 mm (3.939 in) |
| Ferrule Outside Diameter | 105 mm (4.134 in) |
| Groove Outside Diameter – B | 105.00 mm (4.13 in) |
| Groove Width – A | 35.00 mm (1.38 in) |
| Rod Diameter | 100.00 mm (3.94 in) |
| Type | Straight Sleeve |
| Material | Steel-backed Bronze PTFE Filled |
| Inside Diameter | 100 mm (3.94 in) |
| Outside Diameter | 105 mm (4.13 in) |
| Overall Length | 35 mm (1.38 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330 GC, 320, 320D L, 333, 323GC, 325D L, 336 GC, 320C, 323D2 L, 324D, 329E L, 323D L, 320D2 L, 320D2 GC, 325, 329D L, 329E, 330D2, 330D2 L, 325B, 328D LCR, 323, 320D FM, 325C, 320B, 326, 323D, 320D RR, 325D, 325B L, 325C L, 320D GC, 320C L, 323D2, 326D L, 330GC, 324D L, 320 GC, 320E, 326GC, 335F LCR, 335, 333 GC, 326 GC, 323 GC, 320D, 320D2, 326D2, 329D2, 330, 329D, 326D2 L, 329D2 L
Additional information
| Machine Model | 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GC, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336 GC, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
