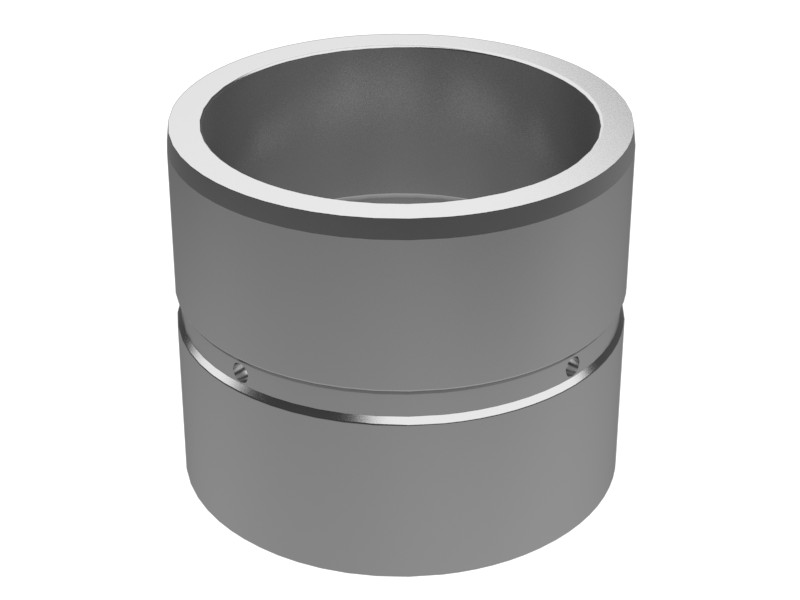

234-3811 Sleeve Bearing
Cat® Sleeve Bearing
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat machine linkage sleeve bearings support rotation between the frame, linkages and work tools. They are most commonly used in machine sticks and buckets. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface finish and manufacturing process so it works effectively and wears in sync with all other adjacent and dependent parts.
Features
- Material: Steel
- Outside Diameter: 130.14 mm (5.12 in)
- Inside Diameter: 110.2 mm (4.34 in)
- Length: 110 mm (4.33 in)
- Has a cross hole, internal groove and external groove
- Cat heavy-duty sleeve bearings are made of premium steel and hardened to provide superior strength and wear life. They are used as a system on specific Cat machines and have been tested and validated in the world's toughest applications. They give you maximum strength and durability, delivering outstanding strength and fatigue life and superior wear resistance, along with exceptional protection against pin galling and wear, even under high loads.
Applications
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications and are designed to work with mating pins.
Specifications
| Ferrule Outside Diameter | 130.135 mm (5.123 in) |
|---|---|
| Unique Features | No |
| Cross Hole | Yes |
| Ferrule Inside Diameter | 110.2 mm (4.339 in) |
| Inside Diameter | 110 mm (4.34 in) |
| Outside Diameter | 130 mm (5.12 in) |
| Overall Length | 140 mm (5.512 in) |
| Material | STEEL |
| Type | Straight Sleeve |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330D2 L, 329D L, 325D L, 325D, 328D LCR, 325C, 325C L, 329D, 329D2 L, 329D2
