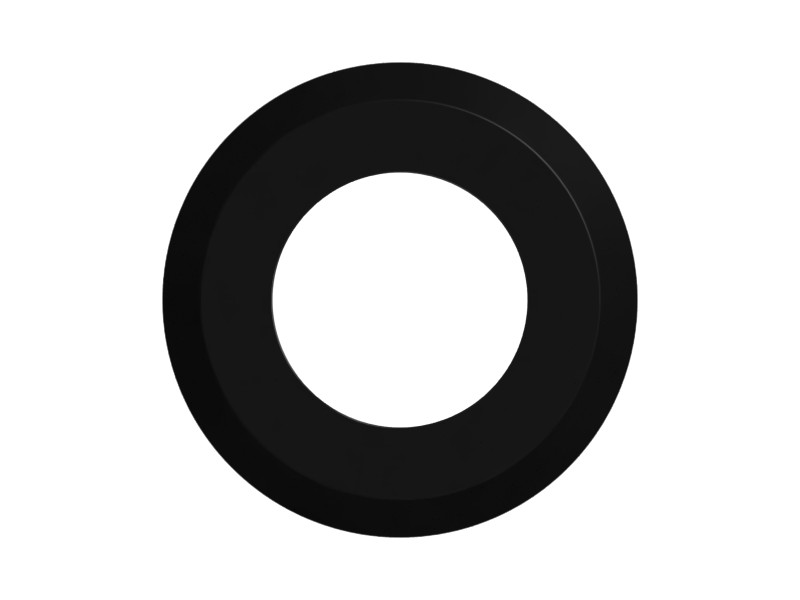

086-0414 102.925 mm OD Flanged Bearing
Cat® Hardened Steel Flanged Bearing Bushing for Bucket Linkages and Work Tools
Description
Cat® machine linkage sleeve bearings support pivoting between the frame, linkage and work tools. These components are most commonly used in machine booms and buckets. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface treatment and manufacturing process so it works effectively and wears in step with all other adjacent and dependent parts.
Features
Cat heavy-duty sleeve bearings are made from advanced steel and hardened for exceptional hardness and wear life. They work as a system on specific Cat machines and are tested and proven in the world's toughest applications. These bearings offer a lower overall cost, outstanding strength and fatigue life and superior wear resistance, while providing exceptional protection against wear, even under high-load conditions.
Applications
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications. They are designed to match mating pins.
Specifications
| Cross Hole | No |
|---|---|
| Unique Features | No |
| Ferrule Inside Diameter | 65 mm (2.559 in) |
| Ferrule Outside Diameter | 102.93 mm (4.052 in) |
| Flange Thickness | 18 mm (0.71 in) |
| Flange Diameter | 120 mm (4.72 in) |
| Inside Diameter | 65 mm (2.56 in) |
| Internal Groove | No Grease Hole in Bearing |
| Outside Diameter | 103 mm (4.05 in) |
| Overall Length | 78 mm (3.07 in) |
| Type | Flanged Sleeve |
Compatible Equipment
- Wheel Excavators: M315GC, M315
- Excavators: 316 GC, 313 GC, 313, 323 GX, 312D2, 312C L, 312D L, 326, 313D2, 323, 315 GC, 320, 313 GX, 325D L, 312E L, 311C, 320D2 GC, 330D2 L, 313F L, 320D L, 314D LCR, 312D2 GC, 313F LGC, 325C, 323D2 L, 313D, 324D L, 329D L, 314C, 311B, 315F LCR, 312C, 312E, 312D2 L, 325B L, 329E, 320E, 320D2 L, 329E L, 313D2 GC, 313D2-GC, 312D, 312F, 314D CR, 311D LRR, 315, 316 GX, 326D2, 320D2, 326D2 L, 320D
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315, 315 GC, 315F LCR, 316 GC, 316 GX, 320, 320D, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D2 L, 324D L, 325B L, 325C, 325D L, 326, 326D2, 326D2 L, 329D L, 329E, 329E L, 330D2 L, M314, M315, M315GC |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
