Description
Cat® standard-duty parts offer a competitive initial purchase price and an advantageous service life compared with industry standards for the target application.
Features
Standard-duty parts are backed by the standard Cat® parts warranty.
Standard-duty parts meet industry expectations for durability and technology.
Applications
Standard-duty parts are designed for moderate and light applications and lower-utilization situations.
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications

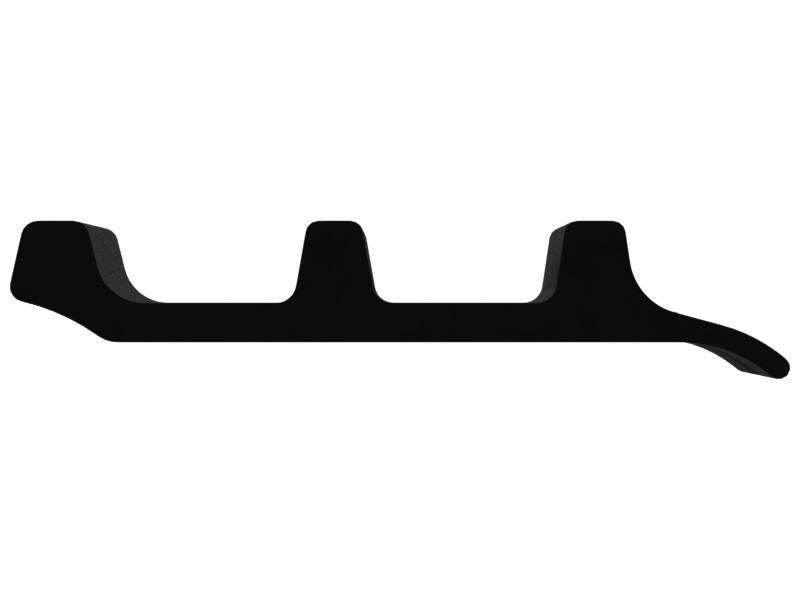

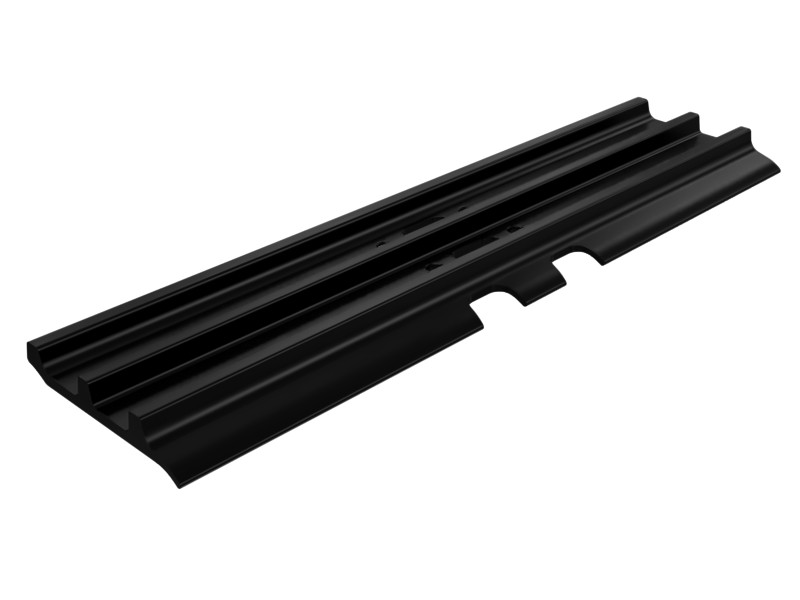

| Track Shoe Type | Triple Grouser |
|---|---|
| Track Shoe Width | 770 mm (30.3 in) |
| Material | Carbon Steel |
| Offset | None |
| Connector Type | Regular |
| Shear | No |
| Main Bolt Thread | None |
| Abrasion Resistant Material | 0 ARM |
| Track Reinforcement System | None |

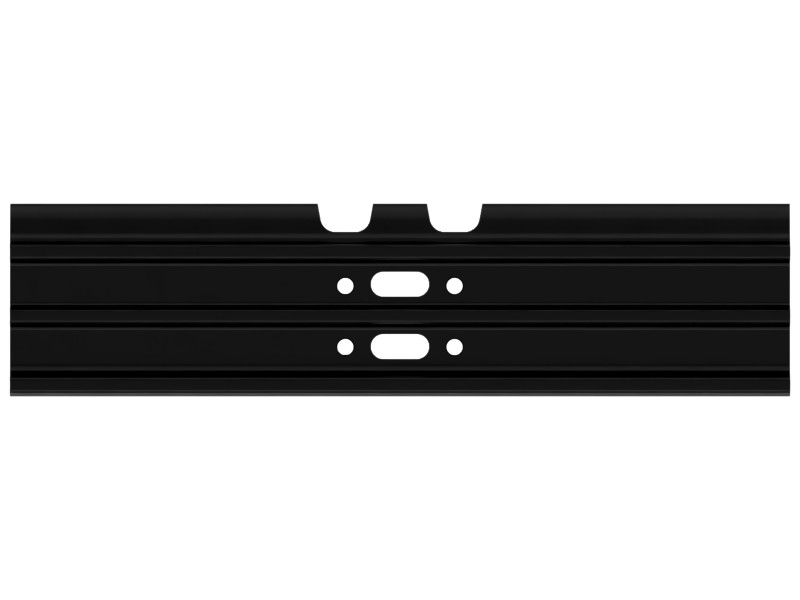

| Hole Type | Slotted |
| Track Bolt Thread | M16 |
| Number of Grousers | Triple |
| Track Shoe Bolt Hole Spacing B | 107.94 mm |
| Bolt Hole Diameter | 16.3 mm (0.642 in) |
| Track Shoe Bolt Hole Spacing C | 107.94 mm |
| Track Shoe Bolt Hole Spacing A | 60.32 mm |
| Track Shoe Section 1E Specification | 1E1541C |
| Plate Thickness | 9.5 mm (0.374 in) |
| Undercarriage System | HD |
Compatible Equipment
- Excavators: 312D2, 312D2 L, 311D LRR, 312D, 312E L, 311B, 313D2 GC, 312D L, 312D2 GC, 311C, 313D2, 313F L, 312C, 312C L, 312E, 312F
